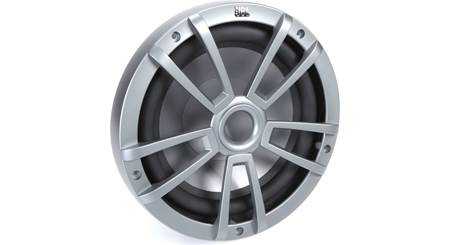

About the JBL Stage Marine 10

Product highlights:
- 10" marine subwoofer
- polypropylene cone with rubber surround
- one-piece cast polymer basket
- stainless steel mounting hardware
- IPX5 rated for water resistance
- available in Gray or White
Specs:
- power handling: 200 watts RMS (600 watts peak power)
- sensitivity: 88 dB at 2.83 volts
- frequency response: 30-250 Hz
- impedance: 4 ohms
- warranty: 1 year
- MFR # JBLMARSUBST10GRYAM
- Item # 109STAGM1G
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
JBL Stage Marine 10 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 10" Marine subwoofer with fixed grey polymer grille
- 6" Wiring harness (quick slides on one end and tinned wire on the other)
- Five 1-5/8" Stainless-steel screws (3mm Allen head)
- 3mm Allen head bit
- 5 Stainless-steel speed clips
- Adhesive backed foam gasket
- Installation manual (English/ French/ Spanish/ Portuguese/ Russian)
- Template on box
More details on the JBL Stage Marine 10

Features & specs
Features and Specs | ||
---|---|---|
Size | 10-inch | |
Impedance (Ohms) | 4 | |
Cone Material | Polypropylene | |
Surround Material | Rubber | |
Basket Material | Polymer | |
Grille | Grey polymer, Fixed | |
Free-Air | Yes | |
Dual Voice Coil | No | |
Sensitivity |
88 dB at 2.83 volts 86.35 dB at 1 watt | |
Frequency Response | 30 - 250 Hz | |
Max RMS Power Handling | 200 | |
Peak Power Handling (Watts) | 600 | |
Top Mount Depth (inches) | 4 7/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 9 1/8 | |
Frame Width | 10.675 | |
Frame Length | 10.675 | |
Vas (liters) | 19.6164 | |
Fs (Hz) | 44.3 | |
Qts | 0.592 | |
Xmax (millimeters) | 0 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | N/A | |
Minimum Sealed Box Volume (cubic feet) | 2 | |
Maximum Sealed Box Volume (cubic feet) | 4 | |
Ideal Ported Box Volume (cubic feet) | N/A | |
Minimum Ported Box Volume (cubic feet) | 2 | |
Maximum Ported Box Volume (cubic feet) | 4 | |
Port diameter (inches) | 3.9375 | |
Port length (inches) | 2.75 |
Product Research
Features
Enclosure: In addition to mounting the subwoofer in free-air, JBL lists both sealed and ported enclosure recommendations in the manual:
- Sealed:
- 2 ft³ (56.6 liters): 52.2 Hz tuning frequency
- 3 ft³ (85 liters): 50 Hz tuning frequency
- 4 ft³ (113.3 liters): 49 Hz tuning frequency
- Ported:
- 2 ft³ (56.6 liters): 3.9375" diameter x 5.75" long port, resulting in a tuning frequency of 45 Hz
- 3 ft³ (85 liters): 3.9375" diameter x 2.75" long port, resulting in a tuning frequency of 45 Hz
- 4 ft³ (113.3 liters): 3.9375" diameter x 1.375" long port, resulting in a tuning frequency of 45 Hz
Stainless Steel Hardware: The provided mounting screws are stainless steel.
