JBL STADIUM MW1000AM Stadium Series 10" marine subwoofer with RGB LED lighting (White)

Name: JBL STADIUM MW1000AM
Brand: JBL
SKU: 109W1000AM
Price: 399.95 USD
Availability: InStock
Rating: 5.0 (8 reviews)

Item # 109W1000AM

JBL's Stadium Series 10" subwoofer will add color, style, and sound to your boat. This rugged...

Front

1/38

Back

2/38

Only at Crutchfield

3/38

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

JBL STADIUM MW1000AM Only at Crutchfield

JBL's Stadium Series 10" subwoofer will add color, style, and sound to your boat. This rugged...

Item # 109W1000AM

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$399.95 each

Add to cart

Other options

Add to wishlist

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Jon Paul

Sound, style, and light

JBL's Stadium Series 10" subwoofer will add color, style, and sound to your boat. This rugged marine-rated subwoofer can handle up to 300 watts RMS (900 peak), so you'll add a ton of thump to your marine audio system. You'll also add great looks and attractive multi-color RGB LED lighting that will bring style and functionality to any vessel.

Switchable impedance

As cool as this sub looks, the really cool part is out of sight. JBL's incredibly nifty dual-impedance switch allows you to choose a 2- or 4-ohm load impedance option, so you can reconfigure your sub at the flip of a switch.

What's your favorite color?

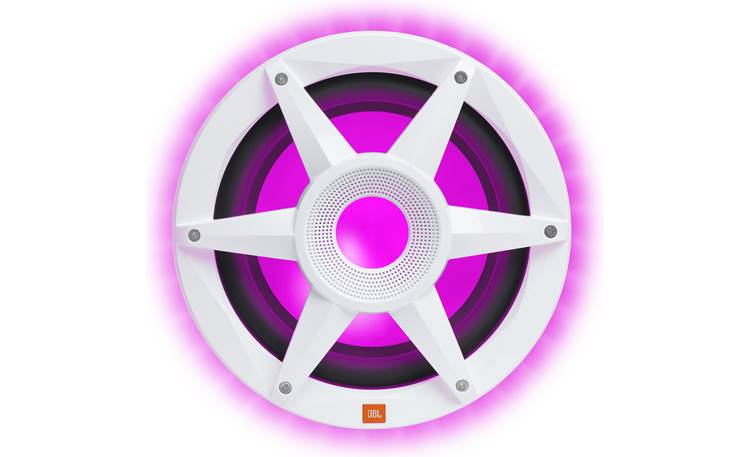

With JBL Stadium Series speakers, awesome sound is a given. But this powerful sub also give you attractive RGB LED lighting that'll add style to your boat. Seven cool colors are available out of the box, but with an external lighting controller (sold separately), you can create unique colors that suit your boat and your style.

Made for boating

Marine audio gear lives a pretty harsh life with sun, spray, salt, and extreme temperatures, plus the occasional fish that gets loose on the deck. This JBL sub is ready for all of it, with a one-piece polymer basket, marine-ready componentry, and a sealed, UV-resistant grille that will stand up to spray and punishing sunlight for years to come.

Available in Black or White.

Product highlights:

10" marine subwoofer
multi-color RGB LED lights
choose 2- or 4-ohm load impedance options with the flip of a switch
polypropylene cone with rubber surround
one-piece cast polymer basket
IPX5 rated for water resistance
available in Black or White

Specs:

power handling: 300 watts RMS (900 watts peak power)
sensitivity: 89 dB at 2.83 volts
frequency response: 20-2,000 Hz
impedance: switchable 2 or 4 ohms
mounting depth: 4.85"
cutout diameter: 9.2"
warranty: 1 year
MFR # MW1000AM
Item # 109W1000AM
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

JBL STADIUM MW1000AM owner's manual

One marine subwoofer with fixed white polymer grille
6" LED Harness
Six 1-3/8" Stainless-steel screws (3mm Allen head)
6 Stainless-steel speed clips
3mm Allen wrench
Adhesive backed foam gasket
1 Black JBL logo grille badge
1 Orange JBL logo grille badge
Adhesive backed foam gasket
Installation manual (English/ French/ Spanish)
2 JBL Stickers

Researched by Crutchfield's Pat M.

Features & specs

Features and Specs
Size	10-inch
Impedance (Ohms)	2, 4
Cone Material	Polypropylene
Surround Material	Rubber
Basket Material	Polymer
Grille	White plastic, Fixed
Free-Air	Yes
Dual Voice Coil	No
Sensitivity	89 dB at 2.83 volts
Frequency Response	20 - 2000 Hz
Max RMS Power Handling	300
Peak Power Handling (Watts)	900
Top Mount Depth (inches)	4 7/8
Bottom Mount Depth (inches)	N/A
Cutout Diameter or Length (inches)	9 1/4
Frame Width	11.623
Frame Length	11.623
Vas (liters)	0
Fs (Hz)	0
Qts	0
Xmax (millimeters)	0
Parts Warranty	1 Year
Labor Warranty	1 Year
Box Requirements
Ideal Sealed Box Volume (cubic feet)	N/A
Minimum Sealed Box Volume (cubic feet)	N/A
Maximum Sealed Box Volume (cubic feet)	N/A
Ideal Ported Box Volume (cubic feet)	N/A
Minimum Ported Box Volume (cubic feet)	N/A
Maximum Ported Box Volume (cubic feet)	N/A
Port diameter (inches)	N/A
Port length (inches)	N/A

Product Research

Features

LED Illumination: Integrated into each grille are red/green/blue LED assemblies, to create a glow on the woofer cone. A 12 volt power supply is needed to turn the LEDs on; depending on what combination of LED wires is connected, they light red, green, blue, yellow, purple, aquamarine, or white. A 4-wire pigtail (14" long) is provided for supplying power to the built-in LEDs.

Switch-Selectable Impedance (SSI): A switch on the input terminal allows you to easily change the woofer's impedance between 2Ω and 4Ω settings. (The connected amplifier should be off when changing the impedance.) The power handling is the same for either setting; 300 watts RMS/900 watts peak.

Loading accessories...

2 questions already asked

What size amp would i need for this subwoofer and ub 4100 sound bar?

katrina Apr 13, 2020

1 answer

Thanks for your question. For information on selecting the best amp for your subs I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.

kristina Apr 23, 2020 (Staff)

Is the MB1000AM a free air sub?

adrian Apr 06, 2020

5 answers

Crutchfield told me they were free air.

tommy Apr 06, 2020

Yes it is, I personally called JB all tech service for the answer to this question. I installed one on my 25 foot boat and absolutely love it. Enter an answer to this question.

louis Apr 06, 2020

Yes, it doesn't need a special enclosure.

michael Apr 06, 2020

Yes but you will get more bass if it's enclosed.

edward Apr 06, 2020

yes, the instructions say it can be mounted with or without an enclosure. I mounted mine under the front golf cart seat which is not at all sealed and it performs very well. Good bass, very satisfied.

lance Apr 06, 2020
