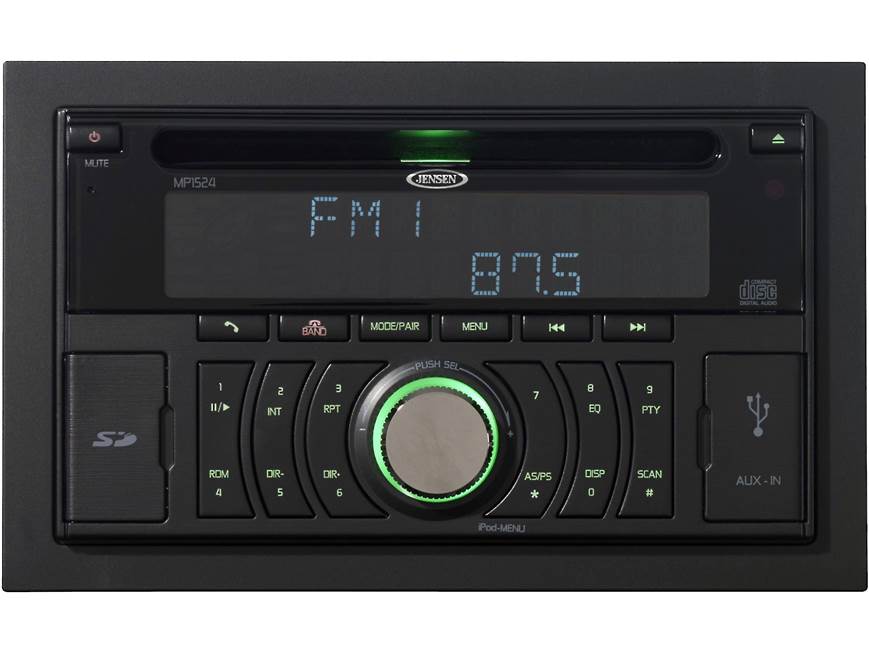

About the Jensen MP1524
Add Bluetooth® and more to your dash
Add Bluetooth® and more to your dash
Many newer cars have a 4" tall, double-DIN factory radio. So when you're considering a new car stereo, why not choose one that will fit the opening like a glove? Jensen's MP1524 CD receiver will fill that spot perfectly, serving up a bunch of useful features without requiring a big investment in cash.
As more localities prohibit cell phone use on the road, Bluetooth is becoming increasingly popular for smart drivers. The MP1524's built-in Bluetooth lets you enjoy hands-free phone conversations, and Jensen includes an external microphone to ensure that you're heard clearly over the road noise. You'll also love the added convenience of streaming audio wirelessly from your compatible device.
Play your iPod® and other digital media
Once you connect your iPod or iPhone® to the MP1524's front-panel USB input, you can take charge of finding the perfect song, artist, album, or playlist with the receiver's controls. But that's only the beginning of your music options. You can play CDs, including discs loaded with MP3 or WMA files, or plug in USB storage devices to the front-panel port. The SD card slot and auxiliary input on the front panel give you even more options.
Customize the look
You can also adjust the display illumination to match your vehicle's interior lighting with a choice of 30 preset colors and an adjustable setting with over 250 color choices. The 2-line display gives you plenty of system information at a glance, and Jensen includes a wireless remote control for your back seat drivers.
- CD receiver with AM/FM tuner
- built-in amplifier (13 watts RMS/40 peak x 4 channels)
- plays CDs, CD-Rs, and CD-RW discs, including discs loaded with MP3 and WMA music files
- fits double-DIN dash openings
- remote control
- iPod/iPhone direct control via USB input
- inputs: front-panel auxiliary and USB inputs, plus SD card slot
- outputs: 2-channel preamp outputs (2-volt rear/subwoofer)
Other features and specs:
- warranty: 1 year
- MFR # MP1524
What's in the box:
- Double-DIN CD receiver (15A fuse installed)
- Sleeve (installed)
- Trim ring
- Power/ground harness
- Speaker harness
- Remote control (CR2025 battery installed)
- Microphone w/ attached visor-clip (10' cable terminated by a 3.5mm connector)
- 4 M5 x 5mm ISO-mount screws
- Self-tapping screw
- Hex nut
- 2 Radio removal tools
- Owner's Manual
- "STOP" note
Customer reviews for Jensen MP1524
Average review:4.0 out of 5 stars
Thanks for submitting your review
More details on the Jensen MP1524
Features & specs
|USB Port Power||---|
|Backup Camera Input||No|
|Second Camera Input||No|
|Alexa Voice Control|
|Memory Card Slot||USB, SD card|
|Satellite Radio Ready||No|
|RMS Power (CTA-2006)||N/A|
|RMS Power (Manufacturer)||---|
|Peak Output||40 watts|
|RMS Power Bandwidth||20-20kHz|
|Sub Preamp Outputs||No|
|Switchable Rear Preamp Outputs||No|
|Navigation App Compatible (iOS)|
|Navigation App Compatible (Android)|
|Preamp Voltage||2 volts|
|Key Button Color||Variable|
|Steering Wheel Control Compatible||No|
|Parts Warranty||1 Year|
|Labor Warranty||1 Year|
|FM Sensitivity||12 dBf|
|Radio Data System||Yes|
|Music File Playback||MP3, WMA|
Disc Compatibility: The Jensen MP1524 features a single disc player that will playback CD-Audio, CD-Text, and finalized CD-R/CD-RW audio discs. The unit also supports playback of MP3/WMA music files loaded onto CD-R/RW discs.
Front-Panel USB Port: The MP1524 also features a front-panel USB (type-A) port that is hidden behind a flip-open cover. The USB port enables connection and control of a portable USB mass-storage class (MSC) device; such as your Android smartphone, portable digital audio player, or USB thumbdrive. The unit supports playback of MP3/WMA music files stored on a compatible USB memory device formatted with FAT file system. USB portable devices that can be charged via USB will be charged when plugged into the CD receiver's USB port (max. 0.5A), and the vehicle's ignition switch is set to ACC or On.
Front-Panel SD Card Slot: The Jensen MP1524 also features a front-panel SD card slot hidden by a protective cover. The unit's SD-card slot supports both SD and SDHC memory cards. SD/SDHC memory cards may be loaded with MP3/WMA music files.
File Compatibility: The Jensen MP1524 supports the following types of MP3/WMA audio files recorded onto a disc, or loaded onto a USB mass storage class device or SD memory card.
|Media Type||CD-R, CD-RW||USB, SD/SDHC|
|File System||ISO9660 Level 1/2, Joliet, Romeo||FAT 16/32|
|Audio Files||MP3: bit rate up to 128kbps w/ sampling frequency up to 48kHz |
WMA: bit rate up to 128kbps w/ sampling frequency up to 48kHz
|Maximum # of Files||255 files|
|Tags||MP3 ID3-tags, WMA-tags|
Folder/File Search: You can select an individual folder containing MP3/WMA files and select the appropriate track by scrolling the list.
Playback Modes: The Jensen MP1524 features the following Repeat, Random, and Intro playback modes.
- Repeat Play: Track, File, or Folder
- Random Play: Disc or Folder
- Intro Play: Track or File (plays the first 10-seconds of each music track on a disc or music file in a folder)
Electronic Shockproof (ESP) Function: The unit will absorb bumps to prevent playback skips while playing discs.
Off Eject: You can eject a disc with the unit powered off. You cannot insert a disc with the head unit powered off.
Installation Angle: For proper CD playback you must install the unit within 30-degrees of horizontal.
iPod/iPhone Connectivity: The Jensen MP1524 supports connection to either Dock-connector or Lightning-connector Apple iPods and iPhones. The unit support audio playback, control, metadata display, and charging of your compatible Apple device.
- Audio Playback w/ DAC Bypass: The USB connection allows your iPod/iPhone's stored music to be loaded instantly to the head unit and sound quality to be maximized through the head unit's 1-bit D/A converter, allowing for a Signal to Noise ratio up to 70dB.
- iPod/iPhone Control: You can control your connected iPod/iPhone from the head unit's touchscreen. You can use the MP1524's touchscreen to browse your music by Playlist, Artist, Album, Song, or Genre. In addition, you can activate Random & Repeat playback modes. Most iPod/iPhone device's clickwheel or touchscreen will be locked during connection (Apple devices w/ iOS 6.0+ will stay unlocked).
- Information Display: The Jensen MP1524 will display your iPod/iPhone's music file information from stored music and select music apps. The head unit will display Track number, Elapsed playing time, Artist name, and Song/Album title.
- Battery Charging: The head unit's USB connection provides 0.5A of current to power and charge your connected iPod/iPhone when your vehicle's ignition switch is set to the 'ACC' or 'On' position. This unit does not charge the iPad. If your iPod/iPhone has no initial battery charge, then the unit will not recognize it.
iPod/iPhone Compatibility Chart: The Jensen MP1524 is "Made for iPod/iPhone" compatible and support the following iPod/iPhone model features (5/21/2013):
|iPod/iPhone||Generation||Tested Version||Media Type||Control Type||Display Type||Charge|
|Audio||Video||Head Unit||iPod/iPhone||Song/Artist Text||Track Info|
Note: Apple iPod/iPhone software updates may change functionality results. If you download a newer software version, you may need to reset the head unit and your iPod/iPhone to regain functionality. If this doesn't work, you may need to wait until a newer software update is available.
Front-Panel Aux Input: The MP1524 feature a front panel 3.5mm auxiliary input so you connect your external portable audio player or portable satellite radio receiver to this head unit.
Bluetooth Communication: The Jensen MP1524 is equipped with built-in Bluetooth, providing hands-free communication and audio streaming for added convenience and safety. Bluetooth is a short-range wireless radio connectivity technology that is developed as a cable replacement for mobile phones, and other handheld devices. Bluetooth operates in 2.4 GHz frequency range and transmits voice and data at speeds up to 1 megabit-per-second.
Pairing: Before using the unit's Bluetooth functions, you must pair your Bluetooth enabled mobile phone or audio device to the MP1524. Due to the differences in Bluetooth technology, some mobile devices may be incompatible, function improperly, or may not support all features when used with the MP1524.
Hands Free Profile (HFP): The Jensen MP1524 allows for wireless communication between the head unit and your Bluetooth enabled cell-phone. You can answer an incoming call from the head unit's front-panel controls or have the unit answer a phone call automatically. Incoming phone call information will be displayed on the MP1524's LCD. Your car audio speakers will mute automatically during a call. You can store up to 10 speed dial numbers. You can also scroll through your received, dialed, and missed calls to make a phone call. In addition, you can manually enter a phone number using the head unit's front-panel controls. You can even dial from your phone and then transfer the call to the head unit.
External Microphone: The MP1524 includes an external microphone to speak into during your phone conversation, while the other party is heard through your vehicle's speakers. The microphone features a visor-clip to mount the unit to your vehicle's sun-visor.
Bluetooth Audio (A2DP/AVRCP): The Jensen MP1524 also allows you to play back stored music and streamed music from your Bluetooth enabled phone, PDA, or personal music player using a Bluetooth connection. You can control basic playback functions (Play/Pause, Previous/Next Track) of the music stored on your Bluetooth audio player from the MP1524. This unit does not display song/artist information from Bluetooth audio devices.
RDS AM/FM Tuner: The Jensen MP1524 features a built-in RDS AM/FM tuner. The Radio Data System (RDS) feature displays radio broadcast information such as artist, title, and album when listening to compatible AM/FM stations.
Preset Tuning w/ Preset Scan: The unit features 3 FM bands and 2 AM bands with the capability of storing 6 presets for each band giving you a total of 18 FM presets and 12 AM presets (30 total). You can also automatically store the six strongest stations in your area inside the current selected band. In addition, the tuner features a Preset Scan function which allows you to preview your stored preset stations in the selected band.
Preview Scan: The Scan function will play the first five seconds of each station, until you find a station you like.
Mono Mode: Mono mode reduces the noise when stereo broadcasts are received as monaural.
European Tuning: The tuner features selectable North America and European tuning.
CEA2006 Compliant: The power specifications for the MP1524 are compliant with the CEA2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Electronics Association (CEA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers. The power output specs for the MP1524 are as follows:
- CEA2006 Specs: 13 watts RMS x 4 channels (at 4 ohms, 20Hz-20kHz, 1% THD-N)
- Maximum Power Output: 40 watts x 4 channels (160 watts total)
2Ch RCA Outputs: The MP1524 is fitted with a pair of RCA outputs to connect an external amplifier.
Preset EQ: You can select from 5 preset EQ modes - Flat, Classic, Pop, Rock, or Off.
Tone Control: The head unit also offers Bass, Treble, Balance, and Fader control.
Loudness: The Loudness feature compensates for deficiencies in the low and high sound ranges at low volume.
Programmable Turn-On Volume: You can set the head unit to turn-on to the last volume level adjustment when turned off, or turn-on to a pre-defined volume level (0-40) every time you power up the radio.
Beep Tones: An audible beep tone confirms each function selection. The beep tone can be disabled/enabled in the Setup Menu.
Variable Color Button Illumination: The Jensen MP1524 features variable color button illumination. You can choose from one of 30 preset colors or customize your own color (RGB: 0-32) for nearly 36,000 color combinations.
12 or 24 Hour Clock: You can set the unit to display a 12 or 24 hour clock.
2-DIN Chassis: The MP1524 has a 2-DIN chassis (also known as Double DIN or size DD), and will fit in many vehicles with a large dash opening. The unit can be ISO-mounted using factory brackets, or Euro-mounted using the supplied mounting sleeve. As always, please consult Crutchfield's Outfit My Car to verify fit with your vehicle.
IR Remote: The Jensen MP1524 comes supplied with a 21-button IR remote control which provides wireless operation of the Jensen CD receiver.
