About the Jensen VM8012
Jensen created the VM8012 DVD receiver as an affordable mobile video solution for your vehicle's standard-sized dash opening. Its 3" screen lets you watch movies when you're parked and clearly displays menus when you're browsing through your music playlists.
The VM8012 offers playback of DVD movies, as well as DVDs and CDs loaded with MP3 and WMA files. A built-in SD card slot and USB input make it easy to bring music and image files along for the ride.
Add a video camera or game console using the audio/video input, or use the video output to add an additional monitor for rear seat passengers. The included RCA Media Interface Cable lets you connect a number of portable music devices. Front, rear, and subwoofer preamp outputs let you add amplifiers to power your system.
Note: If you're going to use your iPod® with this receiver, be sure to check "Details" for specific iPod model compatibility with this receiver or its optional iPod adapter.
Product highlights:
General features:
- in-dash DVD receiver with 3" screen and internal amp (13 watts RMS CEA-2006/40 peak x 4 channels)
- wireless remote
Audio/visual features:
- plays MP3/WMAs on CD and DVD
- plays DVD +/-R/RW, SVCD, VCD, MPEG1 and 2
Expandability:
- inputs: rear USB input, SD card slot, one A/V input, 3.5mm Media Interface Cable
- outputs: one video output, 5-channel preamp outputs (front, rear, subwoofer)
Other information:
- warranty: 1 year
- Our 60-day money-back guarantee
- MFR # VM8012
What's in the box:
- Mobile multimedia receiver with 15A fuse inserted in chassis
- Sleeve
- Face
- Hard plastic face case
- Trim ring
- 2 Transport screws (installed)
- 2 Radio removal tools
- Wireless remote control
- CR2025 Lithium battery
- Rear-support post (M4 x 1-7/8")
- Rubber bushing
- 4 Pan-head screws (M4 x 6mm)
- 4 Pan-head ISO-mount screws (M5 x 6mm)
- 39" USB cable (female USB Type A on one end and male USB Type A on the other end)
- 6' A/V cable with 3.5mm miniplug on one end and RCA composite video and stereo audio plugs on the other end)
- Wiring harness
- Installation and Operation Manual
- On-line installation instruction sheet
12 reasons to shop with us
#8
Hands-on product research
The most accurate info around.
REVIEWS
Customer reviews
Loading reviews...
Jensen VM8012 reviews
Average review:
Thanks for submitting your review
Customer photos
More details on the Jensen VM8012
Features & specs
| Expandability | ||
|---|---|---|
| AUX Input | A/V | |
| Audio/video Input | 1 | |
| USB Input | Rear | |
| Backup Camera Input | No | |
| Second Camera Input | No | |
| CarPlay | No | |
| Android Auto | No | |
| Siri Control | No | |
| Alexa Voice Control | ||
| Android Control | No | |
| Memory Card Slot | SD Card | |
| Bluetooth Compatible | No | |
| Satellite Radio Ready | No | |
| HD Radio | No | |
| Navigation | No | |
| iPod Compatibility | ||
| Full size | --- | |
| Nano | --- | |
| Touch | --- | |
| iPhone | --- | |
| General | ||
| RMS Power (CTA-2006) | 13 watts | |
| RMS Power (Manufacturer) | --- | |
| Peak Output | 40 watts | |
| RMS Power Bandwidth | 20-20kHz | |
| Preamp Outputs | 5-channel | |
| Sub Preamp Outputs | Yes | |
| Switchable Rear Preamp Outputs | No | |
| Video Screen | No | |
| Navigation App Compatible (iOS) | ||
| Navigation App Compatible (Android) | ||
| Preamp Voltage | Not given | |
| Screen Size | 3 | |
| Display Color | ||
| Key Button Color | Blue | |
| EQ Bands | None | |
| Wireless Remote | Yes | |
| Steering Wheel Control Compatible | No | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Tuner | ||
| FM Sensitivity | 10 dBf | |
| European Tuning | No | |
| Seek/Scan | Seek | |
| Radio Data System | No | |
| File Playback | ||
| Music File Playback | ||
| High-res Playback | ||
| Second Camera Input Lane Watch | N | |
Product Research
Features

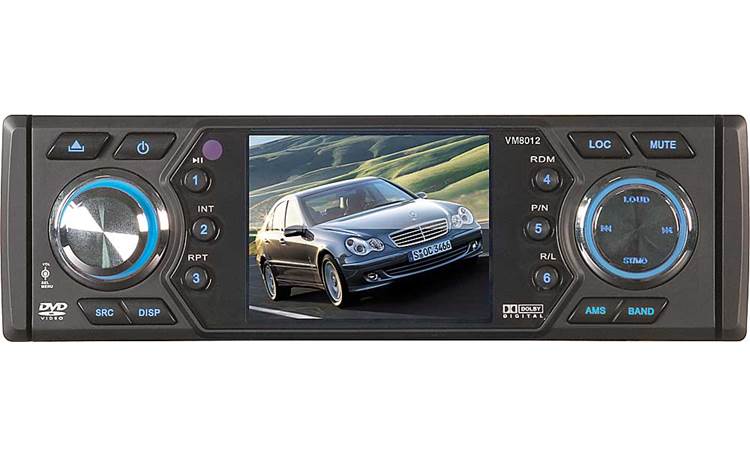

Overview: The Jensen VM8012 multimedia receiver is a standard DIN-sized head unit with a 3" full-color LCD screen on the face. In addition to playing DVDs and CDs, the unit's A/V input allows you to enjoy your iPod or other digital music player, portable satellite radio receiver, portable DVD player or VCR. You can also listen to MP3 files recorded on an SD memory card or a USB Flash Drive.
3" LCD Screen: The VM8012 features a bright, 3" (diagonal) TFT active matrix LCD screen on the face, with a resolution of 960 (w) x 240 (h) sub pixels.
Disc Compatibility: The unit is compatible with DVD-Video, DVD+R, DVD+RW, Audio CDs, CD-R, CD-RW, VCD, SVCD, MPEG1/2, XviD, and DivX discs. It can also play MP3, WMA, and JPEG files on recordable CD and DVD.
Electronic Shock Protection: The VM8012 has a 10-second memory buffer when playing standard audio CDs (CD-DA). The shock protection expands to 45 seconds for MP3 files and 90 seconds for WMA files, recorded at 128 kbps at 44.1kHz sampling frequency.
MP3/WMA: Compressed audio files can be recorded onto CD-R/W discs, SD Memory cards, or USB Flash Drives using ISO 9660, Joliet, or Romeo formats. Bit rates of 8-320 kbps, and sampling frequencies of 8-48kHz should be used. ID3 Tags version 2.0 are supported. The reproducible media on this unit has the following limitations: Maximum of 8 nested folders, Maximum of 999 files per disc, and a Maximum of 255 folders per disc.
A/V Input: The VM8012 has an A/V input with RCA composite video and stereo audio jacks. It can be used with the supplied A/V Media Adapter cable to play music and videos from your iPod or other digital music player, or connect a portable satellite radio receiver. Note: The unit has no control over the iPod or satellite radio receiver, only an audio connection.
USB Input: USB Flash Drives containing MP3/WMA files can be plugged into the unit's rear panel USB input. The unit supports FAT 16 and FAT 32 file systems, and supports USB 1.1 only, but will play USB 2.0 devices at USB 1.1 speeds. A 1-meter USB cable is supplied to allow you easier access to the USB input.
Remote Control: The VM8012 comes with a 40-button wireless remote control. The remote control will allows you to control advanced functions of the head unit, including those not controllable from the face of the unit. The remote is powered by a supplied CR2025 Lithium battery. Dimensions: Length=4.541", Width=2.065", Depth=0.309"
Subwoofer Output: In addition to front and rear preamp outputs, the unit also is equipped with a single mono RCA subwoofer output. The volume of the subwoofer can be independently adjusted from 00 to 12, and you can select an 80Hz, 100Hz, or 120Hz cutoff frequency for the low-pass filter.
Video Output: The unit has a composite video output which allows you to feed video to an optional external monitor.
Volume Modes: You can choose whether the turn-on volume is at a preset level, or the volume will resume at the level last selected when the unit was turned off.
DVD Playback Features: During DVD playback, you can access the following play features:
- Audio: choose an alternate audio language, if available
- Subtitles: choose an alternate subtitle language, if available
- Title: display the title or chapter list, and use the arrow buttons to select a title or chapter number
- Angle: select an alternate viewing angle, if available
- Zoom: zoom the picture at 2x, 3x, 4x, or 1/2x, 1/3x, or 1/4x
