Kenwood DMX7709S

Apple CarPlay & Android Auto
USB & HDMI Integration
Built-in Bluetooth
AM/FM+SiriusXM+Apple Radio
Audio & DSP Section
AV/Camera/OEM Connectivity
Touchscreen & Remote Control

Apple CarPlay & Android Auto

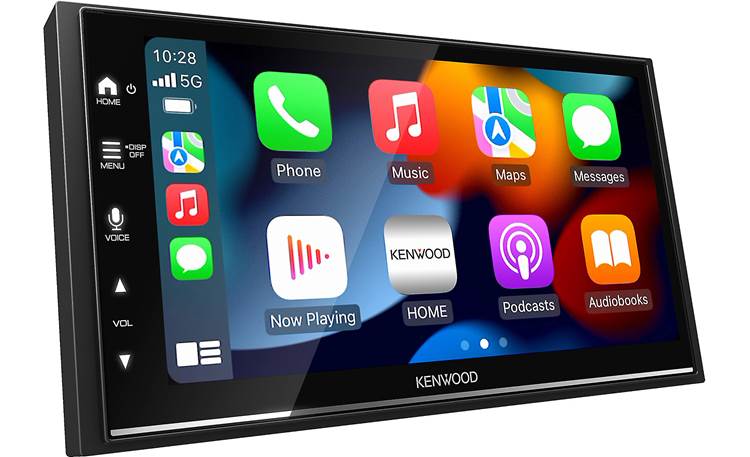

Apple CarPlay: Apple CarPlay is a smarter, safer in-vehicle interface to operate your iPhone 6S and newer. Your iPhone will need to be connected to the Kenwood receiver's rear-panel USB port via the Lightning-cable that came with your Apple device or Kenwood's Lightning-to-USB cable (113KCIP103 sold separately). Apple CarPlay is specially designed for driving scenarios. You can control CarPlay from the Kenwood receiver's touchscreen controls or use Siri to control to control CarPlay with just your voice. You'll be able to use CarPlay to get directions, make phone calls, listen to voice mails, send/receive text messages, select music, and even control Apple HomeKit compatible devices in a way that keeps you focused on the road ahead.

• Navigation Maps: The power and simplicity of Apple Maps comes to your dashboard; complete with turn-by-turn direction, traffic conditions, and estimated travel time. You can enter a new destination or choose a favorite or recent destination using the head unit's touchscreen or by simply asking Siri. CarPlay can also predict where you most likely want to go using addresses from your email, text messages, contacts, and calendars. If you have iOS 12.0 or newer on your iPhone with the latest version of Google Maps or Waze, you can choose to navigate via the Google Maps or Waze application instead of Apple Maps. Google Maps and Waze do not support Siri voice control, but will have their own proprietary voice control function which has to be accessed through a touchscreen icon on the receiver.
• Phone & Messages: You'll be able to make calls, return missed calls, and listen to voicemails through the Kenwood receiver. Siri can also help you do all these things. In addition, Siri can send, read, and reply to your text messages for you; so you never have to look at your iPhone while driving.
• Music Library: Access your favorite artists, songs, playlists from Apple Music on your iPhone using the Kenwood receiver's touchscreen. Or, just tell Siri what you'd like to listen to. The head unit's touchscreen will display song/artist information, as well as album art in the background.
• Apps: CarPlay also supports additional audio apps that you've downloaded to your iPhone for enjoying music, radio, sports, news, podcasts, & audiobooks (subscriptions and fees may apply). Control these apps from the head unit's touchscreen just like you would from your iPhone. Current supported apps include:
  • Music & Radio: Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, TuneIn Radio, Slacker Radio, & more.
  • News, Sports & Podcasts: Stitcher, MLB.com At Bat, NBA, CBS Radio News, NPR One, OverCast, & more.
  • Audio Books: Audiobooks.com & Audible
• Apple HomeKit Compatible: CarPlay now supports control of Apple HomeKit enabled devices (sold separately) through Siri. Using CarPlay in your vehicle, you can ask Siri to close or open your garage door, turn on or off home lighting, increase or decrease the temperature of your thermostat, as well as control select functions of other Apple HomeKit enabled devices and appliances. Click here for a list of compatible Apple HomeKit products.

Notes:

• iPhone 6S or newer is required to Apple CarPlay with the Kenwood DMX7709S.
• Apple CarPlay may not function properly if using an additional USB extension cable.
• Bluetooth hands-free phone and wireless music streaming cannot be used while Apple CarPlay is being used with a connected iPhone.

Android Auto: The Kenwood DMX7709S digital multimedia receiver supports the Android Auto app for Android smartphones running OS Lollipop (5.0 or newer). Your compatible Android smartphone must be connected to the Kenwood receiver's rear-panel USB port and the USB cable that came with your smartphone, plus be paired via Bluetooth (your vehicle's parking brake needs to be engaged to initially setup Android Auto). Android Auto extends the Android platform into your car in a way that's purpose-built for driving and automatically brings you useful information and organizes it into a simple on-screen interface that is simple to use in the vehicle. It's designed to minimize distraction so you can stay focused on the road ahead. Features of Android Auto include -

• Google Assistant: The Kenwood receiver enhances your Android Auto experience even more by incorporating Google Assistant using the head unit's external microphone and your car speakers for voice command and text-to-speech, which makes using Android Auto and all of its integrated applications fast, easy, and safe. You will need to press the "mic" button or say "OK Google" to activate the Google Assistant. Use the Google Assistant to make a call, send a message, reply to a message, get driving directions, listen to music, or even control select Google Assistant smart-home enabled devices.
• Google & Waze Maps: Use Google Maps to get where you're going with on-screen maps, voice-guided navigation, live traffic information, lane guidance, and more. Select your destination by using the head unit's touchscreen or just say where you want to go through the unit's external mic and Google Speech Technology. You can even listen to music from your Android Auto device or other connected source device while using Google Maps. If you prefer, you can switch over to a simpler version of the community-based Waze navigation app (version 4.27 or higher).
• Phone & SMS: With Android Auto you get access to your contacts and messages through the Kenwood receiver while keeping your eyes on the road. Use the unit's external mic and Google Speech Technology to make a phone call, or have your text-messages read aloud to you while you concentrate on the road ahead; you can even reply to texts via voice command.
• Music: Access your Android smartphone's music library through the Kenwood receiver via YouTube Music. You'll be able to browse music like you do on your smartphone with song/artist information display and album art. Use the receiver's touchscreen to select songs or just say what song you want to listen to through the head unit's external mic and Google Speech Technology. You also get access to online music and radio stations from Amazon Music, Tidal, Pandora, Spotify, iHeart Radio, Slacker Radio, Tune-In, and more; as well as news, sports and talk radio apps. Music apps include song and station browsing, plus song/artist information and album art or station logo. Click here for a list of all compatible app for Android Auto.

Notes:

• Click here to learn more About Android Auto and to see what phones are compatible.
• The initial setup for Android Auto requires that your vehicle be stopped and the parking brake is engaged. You will need to connect the parking brake wire of the receiver's harness to your vehicle's parking brake circuit for the head unit to recognize that the vehicle's parking brake is engaged.
• Bluetooth hands-free phone and wireless music streaming cannot be used while Android Auto is being used with a connected Android smartphone.
• Android Auto may not function properly if using an additional USB extension cable.

Cellular & Data Plan Requirements: Access to CarPlay and Android Auto apps will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone or Android smartphone to connect to the Internet. Your compatible Apple or Android device will need an active Data Plan account with connection to the Internet via 3G, EDGE, LTE (4G), or WiFi.

GPS Antenna: The included GPS antenna should also be installed for Android Auto and Apple CarPlay navigation maps for optimum navigation accuracy. The GPS antenna comes with a self-stick pad which mounts it on top of your dash inside the vehicle.

Smartphone Charging: The Kenwood DMX7709S will also charge (5V/1.5A) your Android smartphone or Apple iPhone device while connected via USB with the vehicle's ignition switch set to the 'ACC' or 'On' position.

USB & HDMI Integration

USB MSC Playback: The Kenwood DMX7709S features a rear-panel USB port that is attached to the rear-chassis via a 39" cable. This USB port can be used for connection and control of a USB mass-storage class (MSC) device, such as a USB thumbdrive. The USB port enables playback of a variety of audio (including Hi-Res) and video files stored on a compatible USB memory device (see chart below). USB portable audio devices that can be charged via USB will be charged when plugged into the receiver's USB port (5V/1.5A), and the vehicle's ignition switch is set to ACC or On.

• High Resolution Audio Playback: The Kenwood digital multimedia receiver supports playback of high-resolution FLAC & WAV music files (up to 24-bit/192kHz) via USB. High-Resolution Audio is high-quality sound that exceeds CD standard. High-resolution audio captures and beautifully expresses all the details of your favorite music.
• Search Functions: The Folder/Track List allows you to search folders and audio/video/picture files stored on a USB device. Category Search lets you navigate music stored on your USB memory device by Artist, Song, Album, or Genre. Link Search allows you to play songs related to the currently playing song. The head unit can create an album list of the currently playing artist, a song list of the currently playing album, a artist list of the currently playing genre, or a album list of currently playing composer.
• Song/Artist Info with Album Art: The Kenwood DMX7709S will display song/artist information (as well as album art) for MP3, WMA, AAC, and FLAC music tracks.

Note: The USB port does not support iPod/iPhone USB Direct, MTP (Media Transfer Protocol), AOA (Android Open Accessory), USB hubs, or card-readers.

File Compatibility: The Kenwood DMX7709S supports the following types of audio (including Hi-Res), video, and photo files loaded onto a USB mass storage class device.

USB Mirroring (for Android): Using the Mirroring OA for Kenwood app, you can mirror the content from your Android (OS 7.0+) smartphone onto the touchscreen monitor of the Kenwood DMX7709S; you'll be able to enjoy video and audio playback. Your compatible Android smartphone must be connected to the DMX7709S via USB and Bluetooth. The Kenwood receiver's light green wire (attached to rear chassis) must also be attached to your vehicle parking brake circuit and your vehicle's parking brake must be engaged in order to mirror content from your Android smartphone to the DMX7709S. In addition to mirroring content from your Android smartphone, you'll also be able to control your Android device from the in-dash receiver's touchscreen (some content may not support touchscreen control from the receiver). Mirrored content may or may not display in a portrait or landscape orientation.

• You must indicate that you will be using your connected Android smartphone for USB Mirroring and not Android Auto within the Kenwood receiver's on-screen menu.
• Bluetooth hands-free phone and wireless music streaming cannot be used while USB Mirroring is being used with a connected Android smartphone.
• The unit does not support audio playback from Android devices using MTP (Media Transport Protocol) or AOA (Android Open Accessory).
• The Kenwood DMX7709S does not support Apple iOS device mirroring.

microHDMI Input: The DMX7709S's microHDMI input allows you to display your Apple iPhone or Android smartphone's screen on the receiver's 6.75" monitor. You'll need a compatible Apple or Android HDMI adapter cable (sold separately). You can also connect a DVD player, Blu-ray player or TV tuner with an automotive-grade HDMI cable (sold separately). The HDMI input supports VGA (640x480p @ 60Hz) and 480p (720x480p @ 60Hz) video; as well as 32, 44.1, 48, 88.2, 96, 176.2, and 192 kHz; 16/20/24-bit Linear 2ch PCM audio.

• This is a microHDMI input and not a standard full-size HDMI input.
• The HDMI input does not support 1080p or 4K video.
• The HDMI input does not support Dolby Digital, DTS, and other multichannel surround formats.
• The HDMI input does not offer playback control.

Note: The microHDMI input is recessed behind a small opening that measures only 0.25" (w) x 0.25" (h).

Firmware Updates (via USB): The unit's operating system is updateable via free downloadable software from Kenwood's support site. Firmware downloads assist in maintaining system performance when using external devices and emerging technologies. Firmware/software updates can be downloaded onto a USB thumbdrive from your computer and then inserted into the head unit's USB port and uploaded. Go to Kenwood's Support Site for the latest firmware/software updates.

Built-in Bluetooth

Bluetooth 4.2: The Kenwood DMX7709S is equipped with built-in Bluetooth 4.2 allowing you to make and receive phone calls wirelessly through the receiver; as well as stream music wirelessly from your smartphone to the head unit. In order to use Bluetooth wireless technology, your phone must also be Bluetooth compatible and be able to interpret certain profiles. This unit is compatible with the following Bluetooth Profiles:

• Hands-Free Communication: HFP 1.8 (Hands Free Profile), PBAB 1.0 (Phone Book Access Profile)
• Audio Streaming: A2DP 1.3.2 (Advanced Audio Distribution Profile), AVRCP 1.6.2 (Audio/Video Remote Control Profile).

Note: Due to the differences in Bluetooth technology, some Bluetooth enabled devices may be incompatible, function improperly, or may not support all features when used with the Kenwood DMX7709S.

SSP & Auto Pairing: With Secure Simple Pairing (SSP), you can easily pair a Bluetooth enabled phone to the Kenwood DMX7709S without having to enter pin codes or go through complicated settings. You can even pair your Apple iPhone (iOS 7.0+) or by simply connecting it to the Kenwood head unit via USB and following a single prompt on the head unit's display. You can pair up to ten Bluetooth-enabled devices to the Kenwood head unit. When an already paired Bluetooth device is in close proximity to the receiver, the auto connection function automatically pairs the two units.

• Dual Phone Connection: Thanks to the Dual Phone Connection feature, two Bluetooth-enabled phones can remain connected to the Kenwood receiver. This means you can an answer an incoming call from either phone from the head unit. Also, both of your phone's contact lists are downloaded to the receiver. To make a call from one of the phones using the Kenwood receiver, you simply have to select Phone 1 or Phone 2 on the head unit's touchscreen.
• Music Mix: The new Music Mix feature allows five Bluetooth audio source devices to be connected to the Kenwood receiver at one time, so you can switch between Bluetooth playback sources a lot easier and quicker. While "BT Audio" source is selected on the head unit, you can simply press the music playback button on your connected Bluetooth source devices to switch between devices and begin music playback. However, you cannot stream audio from two different Bluetooth audio source devices at the same time or combine music libraries or playlists from two different connected devices.

Hands-Free Communication: The head unit supports Bluetooth hands-free communication for your Bluetooth enabled smartphone. Thanks to the latest Hands-Free Profile (HFP 1.8) with wideband speech capability, the Kenwood DMX7709S provides more natural sound quality and details during wireless calls. The touchscreen controls of the DMX7709S can be used to dial a number, answer an in-coming call, or end a call. The unit also includes an external microphone (featuring adjustable gain), so you can carry on your side of the conversation while listening to the caller through your vehicles speakers (All or Front only). During a conversation, you can switch between the Private Mode (talking directly on your phone) and the Hands Free Mode.

• Answering a Call: When a call comes in, a ring-tone will be heard through your vehicle's speaker and the caller's name or phone number will be displayed. You can answer the call from the head unit's touchscreen, or setup the head unit to automatically answer the incoming call immediately (1-30 seconds).
• Dialing a Number: Using the DMX7709S, you can dial a phone number in one of the following ways:
  • Entering a Phone Number: Allows you to directly dial a phone number from the head unit's touchscreen keypad.
  • Preset Dialing: Allows you to register up to 5 phone numbers for quick dialing. The preset numbers can be accessed from the head unit's touchscreen.
  • Phonebook: You can download phonebook data (up to 1000 entries) from your phone to the DMX7709S. You can then dial by using the downloaded phone book and search it alphabetically.
  • Call History: The Call History is a list of calls that have originated from and were received by this unit that you can dial. You can select Outgoing, Incoming, or Missed calls (up to 50 entries total).
  • Voice Dialing: If your smartphone supports voice recognition (including Siri and Google Voice), then you can dial out by voice command. Simply speak into the included microphone.

Note: This unit allows you to answer a call or dial out using any option without engaging the vehicle's parking brake.

Wireless Audio Streaming: The Kenwood DMX7709S supports wireless audio playback (AD2P) and control (AVRCP) of a Bluetooth-enabled smartphone or audio player, plus song/artist information display and support for AAC lossless music streaming. You are able to stream your stored music library on your Bluetooth-enabled smartphone, as well as music apps downloaded on your smartphone to the Kenwood DMX7709S for playback.

• SBC & AAC Codecs: In addition to support for the standard SBC Bluetooth audio codec, the DMX7709S offers support of AAC codecs for higher quality audio streaming from select Apple devices. By supporting AAC, the DMX7709S offers better audio performance of the music streamed from your Apple iPod, iPhone, or iPad.
• Advanced Music Playback: In addition to basic playback functions (Play/Pause, FF/RW, Skip, Random/Repeat), the DMX7709S lets you browse your stored music by Playlist, Artist, Album, Song, etc. (AVRCP 1.4-up phones only; which includes Android 4.0+ and iPhone 5.0+).
• Song/Artist/Album Information: The head unit will also display your stored music and music app's song information; such as Artist name and Song/Album title with Album Art.

Note: When an incoming call or outgoing call is in progress from your Bluetooth enabled mobile phone, audio streaming will be paused so you can take your call. Once the call is finished, your streaming music will resume.

External Microphone: The Kenwood DMX7709S includes an external microphone to carry on your side of your phone conversation and voice command dialing. The external wired microphone offers improved audio quality versus an integrated microphone, so you can be heard easier over noisy traffic and road noise. You can adjust the volume level, echo cancellation, and noise reduction of the microphone without affecting the other sources. The external microphone features an attached 10' cable terminated by a right-angle 3.5mm connector which plugs into the mic input on the rear-panel of the head unit. The microphone offers an integrated mounting bracket which can be clipped to your vehicle's sun-visor or taped to your dash.

AM/FM+SiriusXM+Apple Radio

AM/FM Tuner: The Kenwood DMX7709S features a built-in AM/FM tuner with manual, seek, and preset tuning. You can choose one of three tuning modes: Auto 1 (seek tuning), Auto 2 (cycles through and tunes the selected band's preset stations only with each button press), or Manual. Not only does the multimedia receiver's tuner allow you manually enter your desired presets (18FM/6AM) you can choose to have the unit automatically put stations with good reception in the memory banks automatically; this is a handy feature when traveling. Mono mode reduces the noise (static) when a stereo broadcast is received as monaural (for FM band only).

• RDS (Radio Data System): RDS (Radio Data System) is a service used by some radio stations to transmit data outside of normal radio broadcast signals. When an RDS station is received, you can immediately find out what kind of data is being transmitted by looking at the program service name which appears in the display after the frequency.
• Emergency Alerts: RDS features an emergency transmission function which interrupts regular programming to broadcast an emergency announcement (such as a tornado or severe storm).
• Traffic Information: There is also a switchable Traffic Information function, which will automatically tune a traffic bulletin when it is broadcast on FM only, even when you're not listening to the radio.

SiriusXM-Ready: The Kenwood DMX7709S is SiriusXM 2.0 Ready and compatible with the SiriusXM Connect Vehicle Tuner (220SXV300, sold separately). The SiriusXM Connect Vehicle Tuner supports SiriusXM programming with access to 140+ SiriusXM channels via subscription; check out the most popular SiriusXM subscription packages here. Additional features of the SiriusXM Connect tuner include:

• Channel List w/ Category Search: A channel list displays a list of all available channels. The Category Search function searches for channels in a certain category.
• Song/Artist Info + Album Art: Displayed Information such as Channel Name, Channel Logo, Artist Name, Song Title, & Album Art can be viewed on the head unit's LCD
• Smart Favorite Presets: Up to 20 SiriusXM Satellite Radio station presets can be saved. Up to 5 of your SiriusXM presets on the current band are recognized as Smart Favorites for advanced features such as TuneStart & TuneScan.
  • TuneStart: TuneStart allows you to choose whether to start a song from the beginning or from its live point when tuning to a Smart Favorite channel.
  • TuneScan: TuneScan plays the first 6 seconds of each song that has not been listened to from each of the channels which you have saved as Smart Favorites.
• Instant Replay: You can pause, rewind, and replay up to 60 minutes of current channel. You'll also be able to rewind and replay the last 30 minutes of content from your six Smart Favorite channels.
• Content Alert: Receive alerts of your favorite song or artist, favorite sports teams, plus traffic and weather. When a broadcast program related to the your favorite artist or song starts, a message appears to allow you to switch to that station. You can register up to 50 of your favorite artists, songs, or teams.
• Parental Control: Channels containing unsuitable content for children can be blocked.

Note: A separate SiriusXM Satellite Radio subscription is required (operates on the XM Network). However, you can easily add this SiriusXM tuner to an existing Sirius or XM account for a Multi-Radio Discount Plan.

Apple Music Radio (iPhone Only): You can playback Apple Music Radio on your Bluetooth connected Apple iPhone (5 or newer) through the Kenwood DMX7709S. With a WiFi or cellular connection on your iPhone, you can listen to Beats 1 and other live radio stations through the Kenwood receiver. Apple Music subscribers can also listen to on-demand stations for almost any genre or create their own stations. You can use the head unit's touchscreen to select between your Apple Music Radio stations. The touchscreen will also display song/artist/album information, along with Album art.

Note: Access to Apple Music Radio will depend on the availability of a cellular and/or WiFi network for purposes of allowing your iPhone to connect to the Internet. Not supported in Canada and only available in the United States.

Audio & DSP Section

24-Bit/192kHz DAC: The Kenwood DMX7709S utilizes a 24-bit/192kHz digital to analog converter (DAC) for superior sound quality with a signal to noise ratio up to 98.5dB.

MOSFET Amplifier: The Kenwood DMX7709S is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit. The power output specs for the DMX7709S are as follows:

• Full Bandwidth Power: 22 watts RMS x 4 channels (at 4 ohms, 20-20kHz, 1% THD)
• Maximum Output Power: 50 watts x 4 channels

6ch/4V Pre-Outs + Sub Control: The DMX7709S features front, rear and subwoofer 4.0-volt pre-outs. The front and rear speaker pre-outs are balance and fade adjustable. The subwoofer preamp output is non-fading and offers independent level control (-50 to +10 dB).

Vehicle Setup: You can select your car type to automatically set the delay time of each speaker for timing adjustment of sound output of each channel to have the highest surround effect. Choose from Compact, Full Size Car, Wagon, Mini Van, SUV, or Off. For a better sound-stage you can select your optimal listening position & rear speaker location.

• Listening Position + Digital Time Alignment: You can choose from All, Front Left, Front Right or Front. You can also select to manually fine tune the sound stage, using Digital Time Alignment (DTA) by selecting the distance (0-20') for each individual speaker in the vehicle compared to your listening position.
• Rear Speaker Location: You can indicate the location of your vehicle's Rear speakers. Choose from Door, Rear Deck, 2nd Row, or 3rd Row.

Crossover Network: The Kenwood DMX7709S lets you choose between a 2-way or 3-way crossover network for your car audio application.

• 2-Way Crossover: Allows you to set high-pass and low-pass crossovers for a standard Tweeter, Front, Rear, and Subwoofer speaker setup.
  • Speaker Size: select which size speakers are in your vehicle.
    • Tweeter: Small, Medium, Large, or None
    • Front & Rear: 3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", 6x9", 7x10" or None
    • Subwoofer: 6.5", 8", 10", 12", 15" or greater, None
  • X'Over: Select the high pass or low pass crossover settings for your speakers.
    • Tweeter: high pass filter (HPF)
      • Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
      • Gain: -8 to 0 dB
    • Front & Rear: high pass filter (HPF)
      • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
      • Slope: -6dB, -12dB, -18dB, -24dB
      • Gain: -8 to 0 dB
    • Sub: low pass filter (LPF)
      • Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
      • Slope: -6dB, -12dB, -18dB, -24dB
      • Phase: Reverse (180°), Normal (0°)
      • Gain: -8 to 0 dB
• 3-Way Crossover: Allows you to set high-pass and low-pass crossovers for a complex 3-way speaker system with Highs, Mids, and Sub.
  • Speaker Size: select which size speakers are in your vehicle.
    • Tweeter: Small, Medium, Large, or None
    • Midrange: 3.5", 4", 4.75", 5", 6.5", 6.75", 7", 4x6", 5x7", 6x8", or 6x9"
    • Woofer: 6.5", 8", 10", 12", 15" or greater, None
  • X'Over: Select the high pass or low pass crossover settings for your speakers.
    • Tweeter: high pass filter (HPF)
      • HPF Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
      • Slope: -6dB, -12dB
      • Phase: Reverse (180°), Normal (0°)
      • Gain: -8 to 0 dB
    • Midrange: high pass filter (HPF) & low pass filter (LPF)
      • HPF Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
      • LPF Frequency: 1kHz, 1.6kHz, 2.5kHz, 4kHz, 5kHz, 6.3kHz, 8kHz, 10kHz, 12.5kHz
      • Slope: -6dB, -12dB
      • Phase: Reverse (180°), Normal (0°)
      • Gain: -8 to 0 dB
    • Woofer: low pass filter (LPF)
      • LPF Frequency: 30Hz, 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz, 120Hz, 150Hz, 180Hz, 220Hz, 250Hz, Through (Full-Range)
      • Slope: -6dB, -12dB
      • Phase: Reverse (180°), Normal (0°)
      • Gain: -8 to 0 dB

Equalizer: The Kenwood DMX7709S offers 8 EQ Presets for easy adjustment, a 13-band EQ for customized tuning, and a Drive EQ mode to overcome road noise. Separate EQ settings and EQ presets can be stored for each source or you can apply one EQ preset or curve to all sources.

• Preset EQ: The integrated equalizer offers 8 preset sound modes (Flat, Pops, Easy, Top40, Jazz, Powerful, Rock, or User 1-4) suitable for the music genre of your choice.
• 13-Band EQ: The User modes (1-4) allows you to manually adjust the head unit's 13-band EQ (62.5Hz, 100Hz, 160Hz, 250Hz, 400Hz, 630Hz, 1kHz, 1.6kHz, 2.5kHz, 4kHz, 6.3kHz, 10kHz, & 16kHz). Each frequency's gain level can be adjusted from -9dB to +9dB.
• Drive EQ: The Drive EQ mode helps you hear your music over road noise. It boosts certain frequency ranges that become hard to hear due to road noise.

Music Enhancements: You can restore the sound lost due to audio compression, as well as enhance the sound by virtually manipulating the soundscape.

• Realizer: When MP3, WMA, or AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Realizer feature boosts low frequencies which can be lost during compression. Set to Level 1, Level 2, Level 3, or Off.
• Supreme: When MP3, WMA, or AAC files encoded at a low bit rate (less than 96 kbps, 44.1k, 48kHz) are played, the Supreme Setting function restores their high frequencies so the sound quality is closer to files encoded at a high bit rate. The processing is optimized for the compression format and the bit rate used. When the Supreme Setting is Off, the unit plays the original sound stored in the audio file.
• Space Enhancer & Stage EQ: You can set the Space Enhancer to Small, Large, or Off. Each setting value indicates the soundscape level. You can also virtually raise the sound position heard from your speakers; the Stage EQ can be set to High, Middle, Low, or Off.

Volume Level & Bass Management: The digital multimedia receiver offers several volume level adjustments to tailor the audio output of your sources. The DMX7709S also provides bass management to get the most impact out of your system.

• Volume Offset: The level of each source may be independently adjusted to prevent radical leaps in output volume when switching from one source to another. The available settings range from -8 to +6.
• Dynamic Range: The dynamic range can be adjusted by selecting either Normal, Wide or Dialog. Dialog makes the total sound volume become larger as compared with Wide and Normal, allowing you to listen to the movie's dialogue more clearly. This is effective only on Dolby Digital software.
• Bass Boost & DC Extension: The DMX7709S features a four-step Bass Boost (Off/1/2/3) to enhance your music's lower frequencies. When "Bass DC Extension is turned on, frequencies lower than 62.5 Hz are set the same gain level as the unit's 13-Band EQ 62.5 Hz gain setting.
• Loudness: This function enhances low and high frequencies to make the sound clearer at lower volumes.

Source Beep: The in-dash receiver provides an audible beep to confirm source selection. This function can be turned On or Off.

AV/Camera/OEM Connectivity

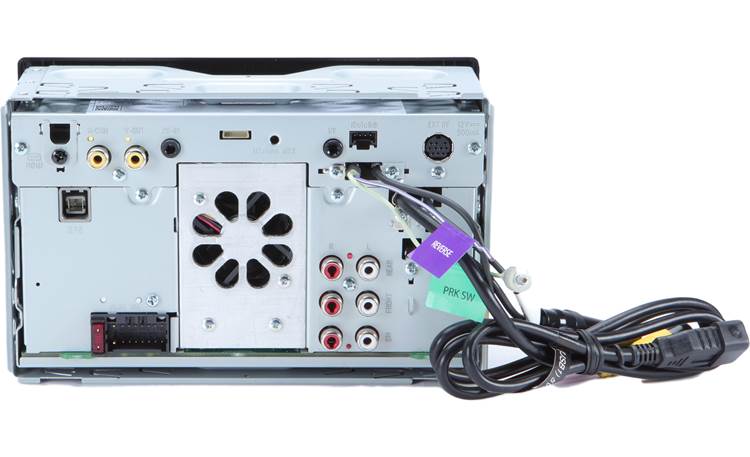

AV Input: The Kenwood DMX7709S is outfitted with a rear-panel AV input which consists of a 3.5mm AV jack for connection of an external audio/video device such as a DVD player, game console or TV tuner. You can also configure the unit's 3.5mm AV input (adapter cable required) to act as a camera input for a side camera (sold separately) or other camera application.

Video Output: A single RCA composite video-output jack allows you to an add external monitor such as rear headrest monitor (sold separately). The video output can display the AV-input or USB video signal when its selected as the receiver's source, regardless if the vehicle's parking brake is engaged or not. Apple CarPlay, Android Auto, USB Mirroring, and microHDMI are not supported by the receiver's video output.

Rear & Front Camera Inputs: The unit features a composite video input for connecting an optional rear view camera, such as the Kenwood CMOS-230 (113CMOS230, sold separately). By connecting a rear view camera, you can use the in-dash receiver's touchscreen LCD to see what's behind you when backing up. There is also a composite video input for connecting a front dash-cam (sold separately), so you can display what's ahead of you on the head unit's touchscreen LCD monitor. You can also configure the unit's 3.5mm AV input (adapter cable required) to act as a camera input for a side camera (sold separately) or other camera application.

• Parking Guide Lines: When a rear-view camera is connected and you are viewing a rear view image, parking guide lines appear on-screen making parking easy and safer. There are three color-coded horizontal guidelines and two vertical guidelines. Dynamic parking guidelines can be enabled when installing the DMX7709S with an iDatalink Maestro RR/RRS radio replacement interface module (sold separately).
• Rear View Auto Switching: The video from the rear view camera can be set to display when manually switched to the rear view camera input, or display the rear view camera video automatically when the vehicle is shifted into Reverse gear. The purple/white wire (attached to rear-chassis) must be connected to the vehicle's reverse lamp circuit for automatic video switching.
• Front Camera Interruption: When the vehicle's gear is switched back from Reverse, the front view camera video can be set to automatically display for 5, 10, 15, or 20 seconds. Or, you can setup the front camera input to only display when manually selected.

Note: The camera features are meant as a driving aid only; never solely rely on the cameras when driving. In addition to using the cameras, always look around you to make sure everything is clear when maneuvering your vehicle.

OEM Integration: The DMX7709S receiver is compatible with the iDatalink Maestro RR/RR2; a web programmable module that will permit the aftermarket Kenwood receiver to work with select Ford, Lincoln, and Mercury vehicles that feature the factory SYNC system; as well as select GM vehicles with factory OnStar; select Chrysler/Dodge/Jeep vehicles with U-Connect, plus select Honda/Acura, Nissan, Toyota/Scion, Volkswagen, and Subaru vehicles with factory digital amplifiers.

• Retained Features: The iDatalink Maestro RR/RR2 lets Ford/Lincoln/Mercury, GM, Dodge/Chrysler, and VW owners swap out their factory radio for this aftermarket JVC head unit; while retaining the Ford Sync system, GM OnStar system, Chrysler/Dodge/Jeep U-Connect system, steering wheel controls, Bluetooth, USB interface, Satellite Radio, and 911 assist. You also get to keep the hands-free mic that comes with the car (which is specially tuned to that particular vehicle). *Retained features will vary by vehicle.
• Extra Features: In some installations, the iDatalink Maestro RR/RR2 lets you configure the head unit to operate interior climate controls and provides extra visual data; such as User Selectable Gauges, Vehicle Info (Tire Pressure/Battery Voltage/Check Engine Codes/Door Ajar Warning), and Visual Park Assist. *Extra features will vary by vehicle.

Note: The iDatalink Maestro RR is web programmable, which means you'll need to flash the iDatalink Maestro RR/RR2 interface module with the correct firmware from iDatalink's website. In addition to flashing the iDatalink Maestro RR/RR2 module, you'll also need a vehicle specific harness (sold separately). The JVC receiver's OEM Setup menu must also be configured with your compatible vehicle's factory system before initial operation.

Touchscreen & Remote Control

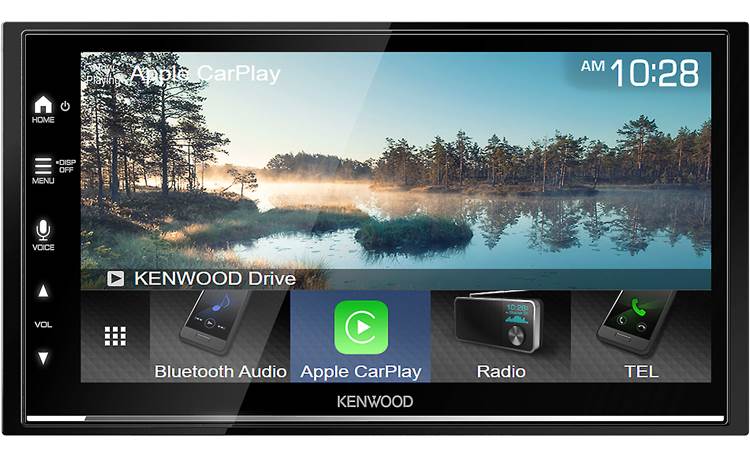

6.75" Capacitive Touchscreen: The Kenwood DMX7709S features a 6.75" widescreen (16:9) capacitive touchscreen LCD with LED backlighting. The LCD touchscreen has a resolution of 800 (H) x 480 (V) x RGB with 1,152,000 total pixels. The capacitive touchscreen LCD provides a high contrast ratio, crystal clear display, and vivid text; as well as highly responsive touchscreen operation. Touchscreen operations include tap, flick left or right, and swipe up or down.

• Display Settings: You can select between nine preset background images (wallpapers), or you can download your own still image (800x600) for use as the unit's background from a connected USB thumbdrive. You can also adjust the touchscreen monitor's Contrast, Brightness, Color, and Tint to suit your preference and vehicle's interior ambient lighting. In addition, there is an electronic angle setting that adjusts the display for best off axis viewing (actual screen does not move). You can adjust the electronic viewing angle to 0, 5, 10, 15, or 20 degrees.
• Clock & Date: The digital multimedia receiver offers a 12-hour clock & day/month/year display. The clock is visible from any source or menu screen. With your vehicle's key in the accessory or run position, the head unit will continue to display the LCD background image, clock, and button illumination during "Standby" mode. Pressing and holding the Power/Home button turns the unit off completely.
• Parking Brake Interlock: To prevent the display of video while the vehicle is in motion, the light green wire (attached to rear-chassis) must be connected to the vehicle's parking brake detection circuit. You cannot view video or use USB mirroring unless your vehicle's parking brake is engaged. If you attempt to view video without the parking brake engaged, the unit's LCD touchscreen will simply display a blue screen and "Parking Off". The parking brake wire must also be connected and the parking brake engaged for certain setup functions and menu options. While your vehicle is in motion (parking brake off), you can still view all of the head unit's menu screens/settings, source information, metadata, and album artwork; as well as CarPlay and Android Auto.

Note: The touchscreen monitor display can be turned off ("Display Off"), while you continue to listen to music, navigation prompts, or other audio.

Front-Panel Controls w/ Variable Color Illumination: In addition to the touchscreen controls, the unit includes frequently used buttons along the left edge of the screen. You can adjust the head unit's button illumination from the following preset colors - Blue, Purple, Sky Blue, Yellow, Green, Orange, Red, Pink, White or Scan (Scans through all preset colors). You can also select a custom "User" color that is adjusted between Red, Green, and Blue (values range: 0-31).

Dimmer: The dimmer function will dim the head unit's display & front-panel illumination automatically when your vehicle's light switch is turned On, if you have the unit's orange/white "Illumination" wire connected to your vehicle's headlamp circuit. You can also choose to dim the display manually.

Remote Control: The Kenwood DMX7709S offers compatibility with factory steering wheel controls (adapter sold separately) and is compatible with Kenwood's IR wireless remote control (sold separately) for added convenience.

• Steering Wheel Controls: The head unit features a factory steering wheel remote control input wire (blue/yellow) within the included wiring harness that lets you keep your vehicle's factory radio steering wheel remote controls when used with an optional steering wheel audio control adapter (sold separately).
• Optional Remote Control: The optional Kenwood KNA-RCDV340 IR wireless remote control (sold separately - not available at Crutchfield) is designed to operate this Kenwood head unit. The wireless remote controller operates off of two supplied "AAA" batteries. The remote operates off of IR transmission so the KNA-RCDV340 must be pointed at the front-panel of the Kenwood head unit within direct line of sight.
