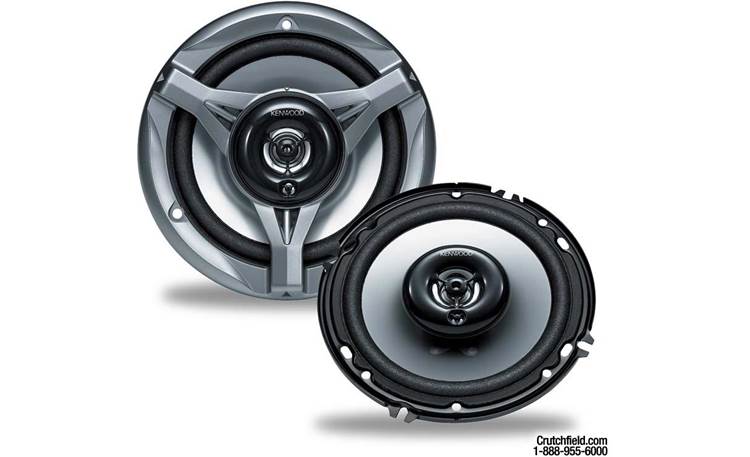

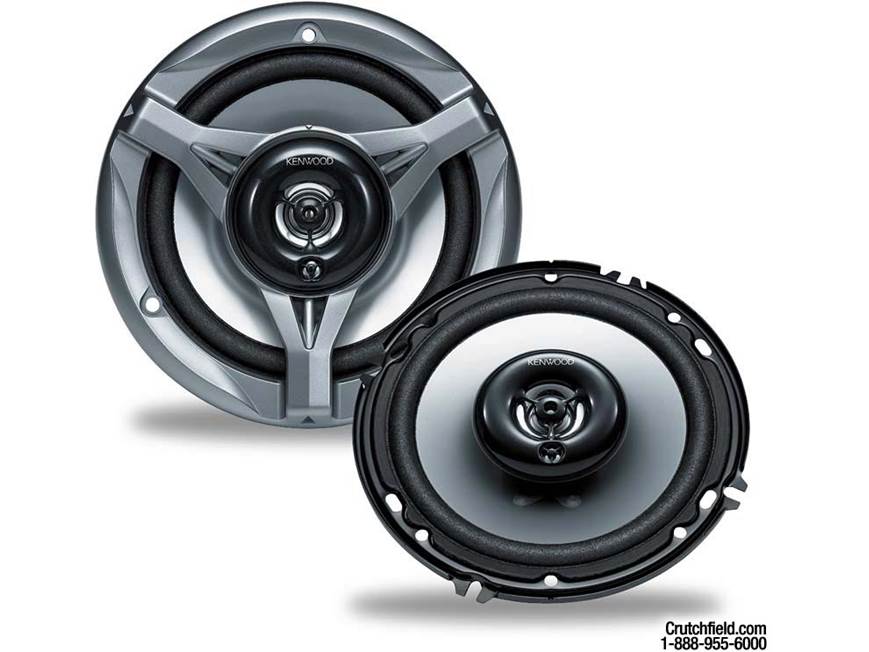

Kenwood KFC-1689ie 6-1/2"/6-3/4" 3-way car speakers

Item # 113KFC1689

Treat your ears to a fuller, richer soundstage! Kenwood has adapted anti-diffraction home speaker technology to...

Find what Fits your vehicle

Remove

Checking fit...

Treat your ears to a fuller, richer soundstage! Kenwood has adapted anti-diffraction home speaker technology to...

Item # 113KFC1689

Shop all Kenwood 6", 6-1/2" & 6-3/4" Speakers

About the Kenwood KFC-1689ie

Todd Cabell
Treat your ears to a fuller, richer soundstage! Kenwood has adapted anti-diffraction home speaker technology to their Image Enhancer series car speakers. A smooth, domed ring around the PEI balanced dome tweeter virtually eliminates "bounce back" — reflected sound waves that interfere with direct sound coming from the tweeter itself. The result is wider "sweet spot" dispersion, less distortion, and more accurate mids and highs.

Treat your ears to a fuller, richer soundstage! Kenwood has adapted anti-diffraction home speaker technology to their Image Enhancer series car speakers. A smooth, domed ring around the PEI balanced dome tweeter virtually eliminates "bounce back" — reflected sound waves that interfere with direct sound coming from the tweeter itself. The result is wider "sweet spot" dispersion, less distortion, and more accurate mids and highs.

The KFC-1689ie 6-1/2" speaker features three drivers for finely detailed sound. A pearl-mica injection-molded poly woofer handles plenty of power, for lows that hit hard. In addition to the PEI balanced dome midrange, the durable PEI dome tweeter offers extensive high-frequency output to capture nuances often lost in 2-way designs. The KFC-1689ie also has mounting tabs for oversized 6-3/4" applications.

Priced per pair

READ LESS

Product Highlights:

  • pearl-mica injection-molded polypropylene woofer
  • urethane surround
  • 1-3/16" PEI balanced dome midrange
  • 3/8" PEI dome tweeter
  • recommended power range 2-50 watts RMS
  • peak power handling 200 watts
  • frequency response 30-30,000 Hz
  • sensitivity 92 dB
  • depth 2-1/16"
  • 1-year warranty
  • MFR # KFC-1689IE

What's in the box:

  • Two 6-1/2" speakers
  • 2 Grilles
  • Two 14-1/2' lengths of 24-gauge speaker wire (with female quick slides on one end and bare wire on the other)
  • Six 1" self-tapping screws
  • 6 Speed clips
  • Warranty sheet
  • Important Safeguards sheet
  • Specifications/Instructions/Cutout template on carton

Customer reviews for Kenwood KFC-1689ie

Loading reviews...

Average review:

4.5 out of 5 stars
2 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Kenwood KFC-1689ie

Pat M.

Features & specs

General
Speaker Size
Design 3-way
Tweeter Design Dome
Impedance (Ohms) 4
Tweeter Composition PEI
Woofer Composition Pearl Mica IMPP
Woofer Surround Urethane
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) 92
Sensitivity at 2.83 volts N/A
Frequency Response 30 - 30k Hz
Minimum RMS Wattage 2
Maximum RMS Wattage 50
Peak Power Handling (Watts) 200
Top-mount Depth (Inches) 2 1/16
Bottom-mount Depth (Inches) N/A
Cutout Diameter or Length (inches) 5 3/16
Mounting Height (Inches) 0.887
Frame Width 6.226
Frame Length 6.226

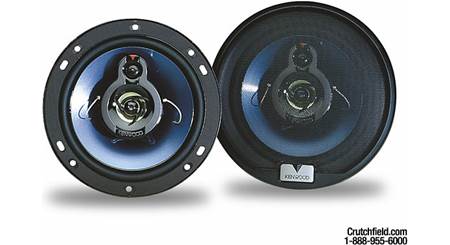

The Kenwood KFC-1689ie replaces these items:

Product Research

Features

Image Enhancer: The KFC-1689ie is equipped with Kenwood's patented Image Enhancer surrounding the midrange and tweeter. Its smooth rounded surface eliminates most of the reflected sound waves that would interfere with the direct sound waves coming from the midrange and tweeter. The end result is a better dispersion pattern, less distortion, and clear high-frequency reproduction.

Woofers: The woofer cones are silver Pearl Mica Injection-Molded Polypropylene. Uniform pearl mica crystals form an overlapping structure that adds strength and heat resistance to polypropylene; the result is reduced distortion and improved reliability.

Midranges: The speakers have a 1-3/16" PEI balanced dome midrange. A semi-dome midrange has a dome placed inside a cone. "Balanced dome" midranges are semi-dome midranges with equal reproduction area given the cone and dome portions of the driver.

Tweeters: The speakers have a 3/8" PEI dome tweeter.

Surrounds: The speakers have a urethane surround.

Grilles: The supplied hard plastic grilles have a unique 3-spoke design with a cutout for the Image Enhancer.

Mounting: The speakers can be mounted in a 6-1/2" opening, or, using the four mounting tabs, the speakers can be mounted in a 6-3/4" opening.
