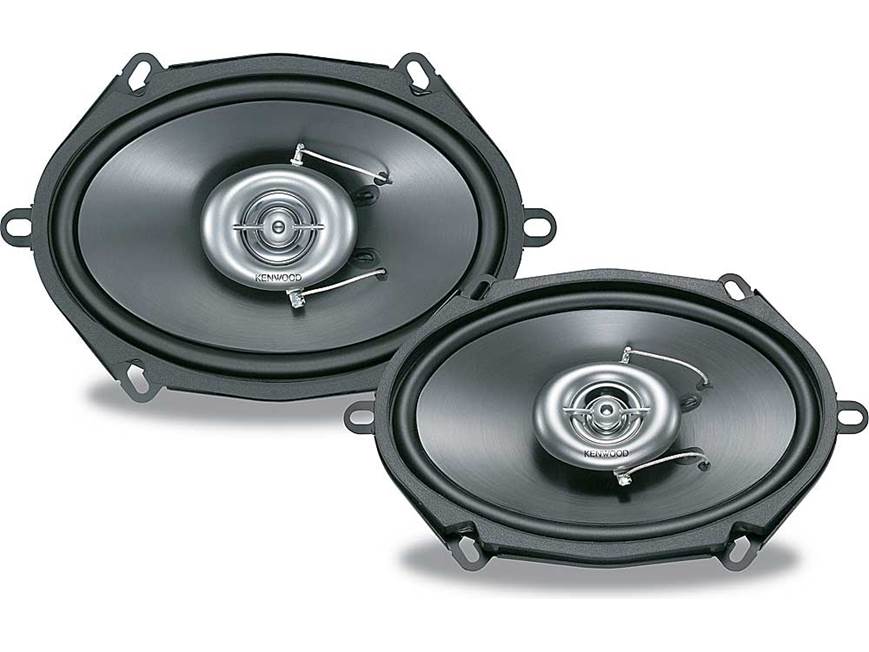

About the Kenwood KFC-C5780ie
Set your music free with the smooth, accurate sound of Kenwood's Image Enhancer Series speakers.
Kenwood has maximized accurate high-frequency response by equipping the KFC-C5780ie 5"x7" speaker with the Image Enhancer 2 baffle. This specially-shaped domed ring surrounds the speaker's tweeter, reducing reflected sound waves that can muddy your stereo image. You'll enjoy crisp, clear highs, so your music can really take flight.
The tough polypropylene woofer features a durable rubber surround that exerts tight control over cone excursion for authoritative lows. Grilles are not included factory grilles are appropriate for most installations.
Priced per pair
Product highlights:
- 5"x7" 2-way speakers (pair)
- mica-injected polypropylene woofer cone with rubber surround
- PEI balanced-dome tweeter with Image Enhancer 2 baffle
- power range: 2-40 watts RMS (220 watts peak power)
- frequency response: 30-25,000 Hz
- sensitivity: 91 dB
- top-mount depth: 2-1/16"
- warranty: 1 year
- MFR # KFC-C5780IE
What's in the box:
Kenwood KFC-C5780ie owner's manual
- Two 5x7" speakers
- Two 12" Lengths of speaker wire (with female quick slides on one end and bare wire on the other)
- Eight 1.125" Self-tapping screws
- 8 Speed clips
- 8 Washer spacers
- 2 Strips of adhesive backed form gasket
- Warranty sheet
- Important Safeguards sheet
- Specifications and Instructions on box
More details on the Kenwood KFC-C5780ie
Features & specs
| General | ||
|---|---|---|
| Speaker Size | ||
| Design | 2-way | |
| Tweeter Design | Balanced dome | |
| Impedance (Ohms) | 4 | |
| Tweeter Composition | PEI | |
| Woofer Composition | Mica-injected poly | |
| Woofer Surround | Rubber | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 91 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 30 - 25k Hz | |
| Minimum RMS Wattage | 2 | |
| Maximum RMS Wattage | 40 | |
| Peak Power Handling (Watts) | 220 | |
| Top-mount Depth (Inches) | 2 1/16 | |
| Bottom-mount Depth (Inches) | 2 7/16 | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.381 | |
| Frame Width | 5.428 | |
| Frame Length | 7.653 | |
Product Research
Features
Image Enhancer: The KFC-C5780ie is equipped with Kenwood's Image Enhancer surrounding the tweeters. Its smooth rounded surface eliminates most of the reflected sound waves that would interfere with the direct sound waves coming from the tweeters. The end result is a better dispersion pattern, less distortion, and clear high-frequency reproduction.
Woofers: The woofer cones are Mica Injection-Molded Polypropylene. Uniform mica crystals form an overlapping structure that adds strength and heat resistance to polypropylene; the result is reduced distortion and improved reliability.
Tweeters: The speakers have a 1-3/16" PEI balanced dome tweeter. A semi-dome tweeter has a dome placed inside a cone. "Balanced dome" tweeters are semi-dome tweeters with equal reproduction area given the cone and dome portions of the tweeter.
Surrounds: The speakers have rubber surrounds.
The Kenwood KFC-C5780ie replaces these items

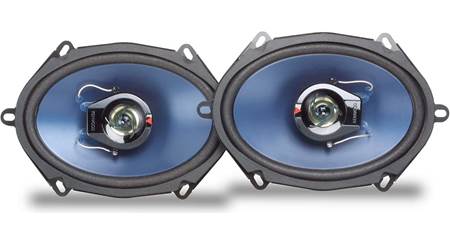

Kenwood KFC-5708C
- Blue pearl-mica IMPP woofer
- balanced dome tweeter
- power range 2-35 watts RMS
