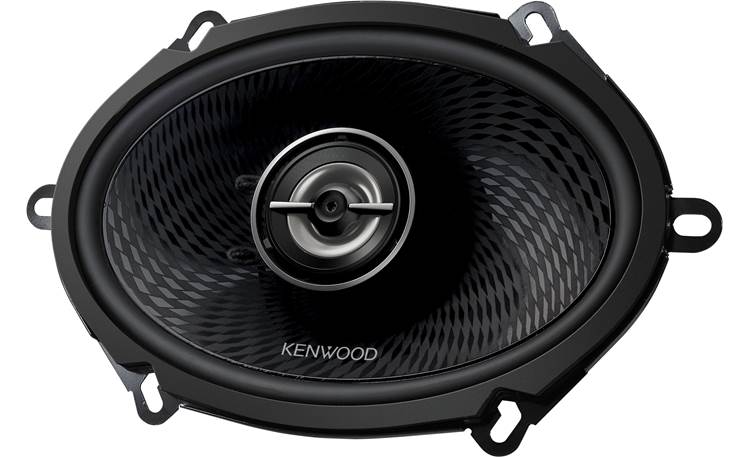

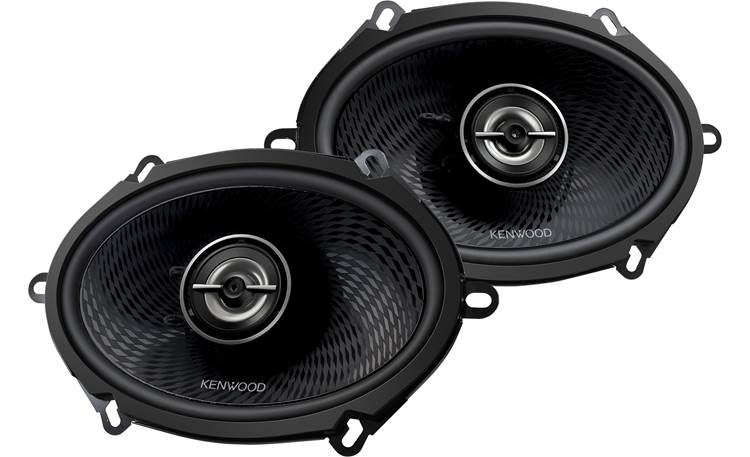

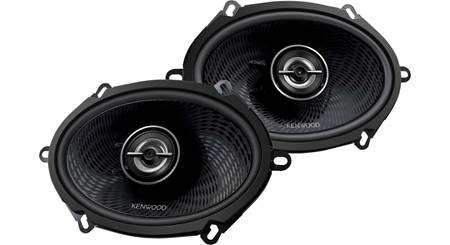

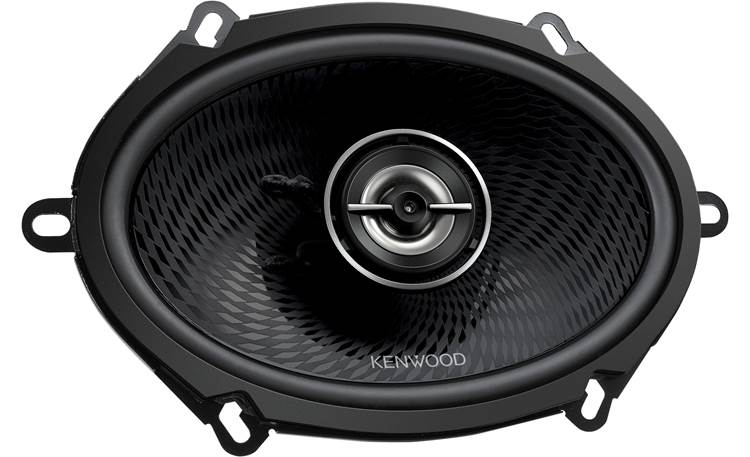

About the Kenwood KFC-C5798RS

Product highlights:
- 5"x7" 2-way car speakers (pair)
- polypropylene woofer cone
- 1-3/16" balanced dome tweeter
- handles up to 80 watts RMS (320 watts peak power)
- frequency range: 69-20,000 Hz
- top-mount depth: 2-1/16"
- sensitivity: 88 dB
- grilles not included
- warranty: 1 year
- MFR # KFC-C5798RS
- Item # 113KFC5798
What's in the box:
Kenwood KFC-C5798RS owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- Two 12" Lengths of speaker wire (each has female quick-slides on one end and bare wire on the other)
- Eight 1-1/4" Screws
- 8 Speed clips
- Eight 0.325" Bottom mount spacers
- Warranty information
- Specifications on the box
More details on the Kenwood KFC-C5798RS

Features & specs
General | ||
---|---|---|
Speaker Size | 5X7 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | 1-3/16" Balanced Dome | |
Tweeter Material | --- | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 88 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 69 - 20k Hz | |
Maximum RMS Wattage | 80 | |
Peak Power Handling (Watts) | 320 | |
Top-mount Depth (Inches) | 2 1/8 | |
Bottom-mount Depth (Inches) | 2 7/16 | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.33 | |
Frame Width | 5.425 | |
Frame Length | 7.65 |
Product Research
Features
Size Classification Note: While Kenwood calls this speaker a 5x7, it will also fit in many 6x8 installation applications. Because Kenwood also makes a dedicated 6x8 in this series (item number 113KFC6898), that might be a better fit in 6x8 applications. Please enter your vehicle information to confirm fit.
The Kenwood KFC-C5798RS replaces these items:
- Acoustic Sound Harmonizer improves response in the 3000 to 4000 Hz range
- Sound Field Enhancer widens sound field
- handles up to 80 watts RMS (320 watts peak power)
