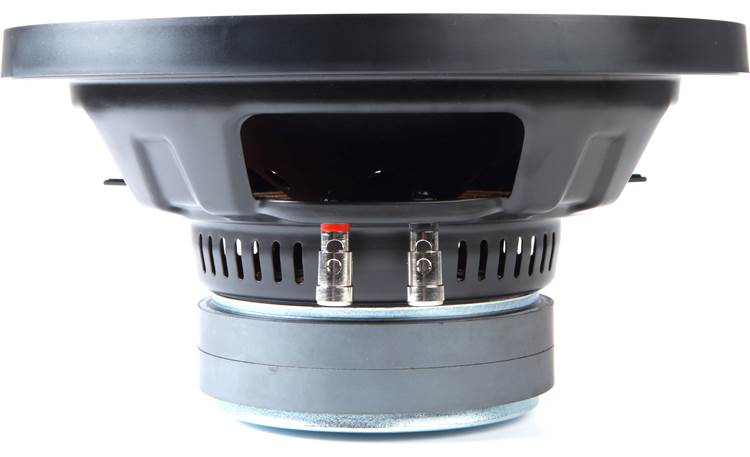

About the Kenwood KFC-W2541

Product highlights:
- 10" 4-ohm component subwoofer
- polypropylene cone with X-Motif design and foam surround
- power handling: 300 watts RMS (1300 watts peak)
- frequency response: 33-300 Hz
- top-mount depth: 4-7/8"
- sealed box volume: 0.65 cubic feet
- ported box volume: 0.9 cubic feet
- grille sold separately
- warranty: 1 year
- MFR # KFC-W2541
- Item # 113W2541
What's in the box:
Kenwood KFC-W2541 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 10" Subwoofer
- Trim ring
- Connection guide
- Warranty information
- Template on box lid
- Specs printed on the box
More details on the Kenwood KFC-W2541

Features & specs
Features and Specs | ||
---|---|---|
Size | 10-inch | |
Impedance (Ohms) | 4 | |
Cone Material | Polypropylene over Paper | |
Surround Material | Urethane | |
Basket Material | Steel | |
Grille | None included | |
Free-Air | No | |
Dual Voice Coil | No | |
Sensitivity |
84 dB at 1 watt | |
Frequency Response | 33 - 300 Hz | |
Max RMS Power Handling | 300 | |
Peak Power Handling (Watts) | 1300 | |
Top Mount Depth (inches) | 4 15/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 8 7/8 | |
Frame Width | 10.82 | |
Frame Length | 10.82 | |
Vas (liters) | 31.9 | |
Fs (Hz) | 33.7 | |
Qts | 0.513 | |
Xmax (millimeters) | 5.9 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | 0.65 | |
Minimum Sealed Box Volume (cubic feet) | 0.4 | |
Maximum Sealed Box Volume (cubic feet) | 1.2 | |
Ideal Ported Box Volume (cubic feet) | 0.9 | |
Minimum Ported Box Volume (cubic feet) | 0.7 | |
Maximum Ported Box Volume (cubic feet) | 1.2 | |
Port diameter (inches) | N/A | |
Port length (inches) | N/A |
Product Research
Features
Sealed Enclosure Applications: Kenwood recommends a sealed enclosure volume of 0.65 ft³ (0.4 ft³ to 1.2 ft³ acceptable). Sealed enclosures provide the most control over a woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable for all types of music.
Ported Enclosure Applications: Kenwood recommends a ported enclosure volume of 0.9 ft³ (0.7 ft³ to 1.2 ft³ acceptable) with a 10¾" wide x 1⅛" tall x 25½" long slot port. Ported (or vented) enclosures typically provide better overall efficiency than sealed, so they are suitable for use with smaller amplifiers, giving you more bass output from a given amount of power. However, this efficiency comes at the expense of very low frequency output.
Spring Terminals: The spring post terminals will accept pin connectors, single banana plugs, or bare wire up to 10-gauge.
Additional Measurements: When mounted without the trim ring, the sub has these measurements:
- Mounting Height: 0.478"
- Flange Height: 0.2"
- Frame Diameter: 10.564"
