Kenwood Excelon Motorsports XM1041 10" 4-ohm all-weather subwoofer with RBG LED lighting — optimized for free-air applications (Black)

Name: Kenwood Excelon Motorsports XM1041
Brand: Kenwood
SKU: 113XM1041B
Price: 199.0 USD
Availability: InStock

Item # 113XM1041B

Bring the bass to your boat, ATV, or other outdoor vehicle with this impressive all-weather sub featuring RGB lighting

Front

1/17

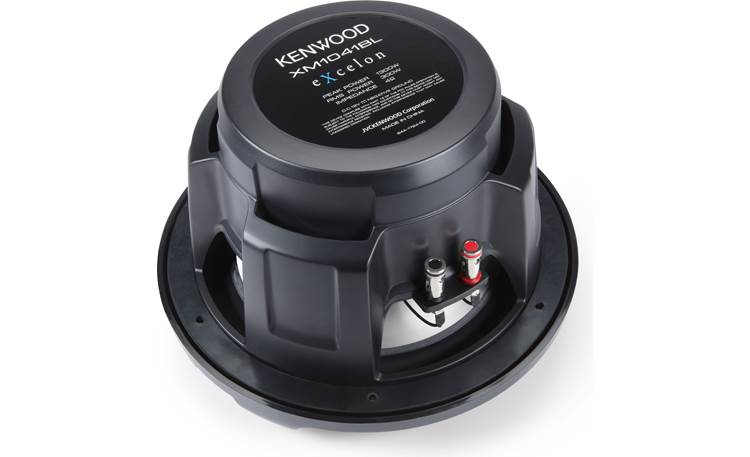

Back

2/17

Only at Crutchfield

3/17

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Remote

Kenwood Excelon Motorsports XM1041 Front

Kenwood Excelon Motorsports XM1041 Only at Crutchfield

Kenwood Excelon Motorsports XM1041 Other

Kenwood Excelon Motorsports XM1041 Remote

Bring the bass to your boat, ATV, or other outdoor vehicle with this impressive all-weather sub featuring RGB lighting

Item # 113XM1041B

Ships free today

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$399.00 Save $200.00

$199.00 each

Add to cart

Other options

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Dominic DeVito

Thump for the water, swamp, trail, or wherever you go

You shouldn't have to settle for less-than-stellar bass outside of your car or truck. Kenwood's experts have been designing quality audio components for ages, and now they bring their expertise to all-weather gear with the Kenwood Excelon Motorsports XM1041 10" marine subwoofer. It delivers pulse-quickening low end in all sorts of conditions, so you can jam out in your boat, ATV, side-by-side, or whatever vehicle you choose. It handles up to 300 watts RMS and features LED lighting to give you an eye-catching light show to go along with your tunes.

Hues for your blues (or rock or jazz or EDM)

With Kenwood Excelon speakers, impressive sound is a given. But this powerful sub also give you attractive RGB LED lighting that'll add style to your boat or vehicle. It features 21 illumination colors and 21 lighting patterns, plus eight brightness levels and seven speed adjustments. Kenwood includes a handy remote control so you can dial in just the look you want.

Make a splash with your bass

The XM1041's equipped to deal with sun, spray, salt, and extreme temperatures, thanks to its IPX6 water-resistant polypropylene cone and tough rubber surround. The sub's designed for free-air use, allowing you to get creative with your installation on unusual vehicles, but it's also at home in sealed enclosures The included UV-resistant grille gives your sub a stylish look and helps protect it against random hazards on land or on the water.

Product highlights:

10" marine subwoofer
multi-color RGB LED lights with included remote control
4-ohm impedance
polypropylene cone with rubber surround
UV-resistant grille included
designed for free-air (infinite baffle) use (also works in sealed enclosures)
IPX6 waterproof rating

Specs:

power handling: 300 watts RMS (1300 watts peak power)
sensitivity: 84 dB at 1 meter per 1 watt
frequency response: 40-300 Hz
impedance: 4 ohms
mounting depth: 5.5"
top-mount depth: 1.81"
cutout diameter: 9.19"
warranty: 2 years
MFR # XM1041BL
Item # 113XM1041B

What's in the box:

Kenwood Excelon Motorsports XM1041 owner's manual

10" Subwoofer (fixed grille)
10" Link harness
Remote control (CR2025 battery installed)
6 Screws
6 Speed-clips
2 Rubber sleeves
Instruction Manual
Template
Warranty Sheet

Researched by Crutchfield's Pat M.

Features & specs

Features and Specs
Size	10-inch
Impedance (Ohms)	4
Cone Material	Polypropylene
Surround Material	Rubber
Basket Material	Polymer
Grille	Black plastic, Fixed
Free-Air	Yes
Dual Voice Coil	No
Sensitivity	84 dB at 1 watt
Frequency Response	40 - 300 Hz
Max RMS Power Handling	300
Peak Power Handling (Watts)	1300
Top Mount Depth (inches)	5 1/2
Bottom Mount Depth (inches)	N/A
Cutout Diameter or Length (inches)	9 3/16
Frame Width	10.8125
Frame Length	10.8125
Vas (liters)	37.3
Fs (Hz)	43.76
Qts	0.27
Xmax (millimeters)	2.9
Parts Warranty	2 Years
Labor Warranty	2 Years
Box Requirements
Ideal Sealed Box Volume (cubic feet)	2.02
Minimum Sealed Box Volume (cubic feet)	N/A
Maximum Sealed Box Volume (cubic feet)	N/A
Ideal Ported Box Volume (cubic feet)	N/A
Minimum Ported Box Volume (cubic feet)	N/A
Maximum Ported Box Volume (cubic feet)	N/A
Port diameter (inches)	N/A
Port length (inches)	N/A

Product Research

Features

IPX6 Rated: The Kenwood XM1041BL offers a tough design that conforms to the IPX6 standard, so you can enjoy high-quality bass even under the harsh environment of marine and motorsports use. The IPX6 rating guarantees water and dust ingress protection, so the woofer can withstand marine and outdoor environments.

Note: The IPX6 rating is only for the woofer. The included remote control is not IPX6 rated.

10" Polypropylene Woofer: The XM1041BL features a 10" polypropylene cone with rubber surround and resin molded frame basket. Its large magnet produces high braking force, while the 4-layer voice coil can handle a large amount of power input. In addition, the Magnetic Circuit, whose volume has been increased by 35% compared to the conventional design, has greatly increased the driving force to move the diaphragm. Plus, the durability of the vibration system has been greatly enhanced to handle the high input power of 300W RMS. This all results om clear and powerful bass sound reproduction.

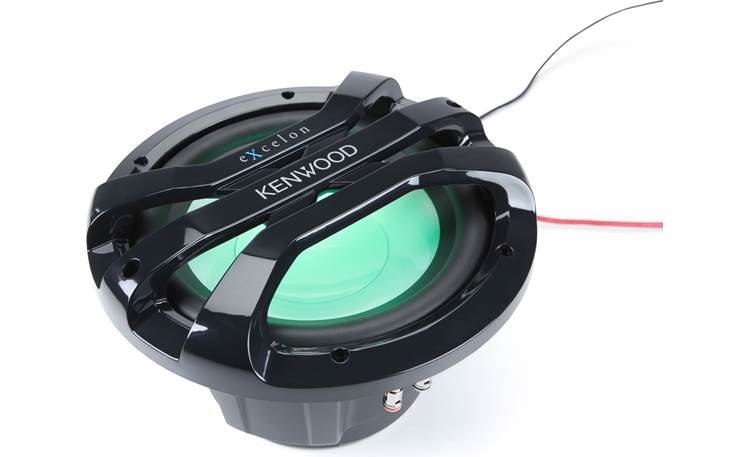

LED Illumination: In addition to great bass sound, the CW-DR1040ML is also equipped with LED Illumination so you can choose your favorite color that suits your mood or music. Using the included remote control, you can from 21 different colors patterns with varying speeds and brightness. The LED illumination feature will require a separate hardwired power and ground connection.

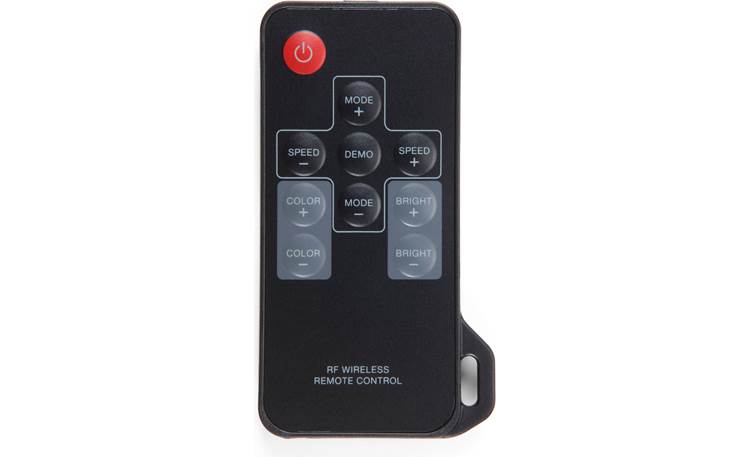

Remote Control: The included RF remote can be used in sunlight and does not require direct line of sight to the subwoofer. It has a wireless range of approximately 98' (30m). The battery is powered by a single CR2025 3V battery that comes pre-installed.

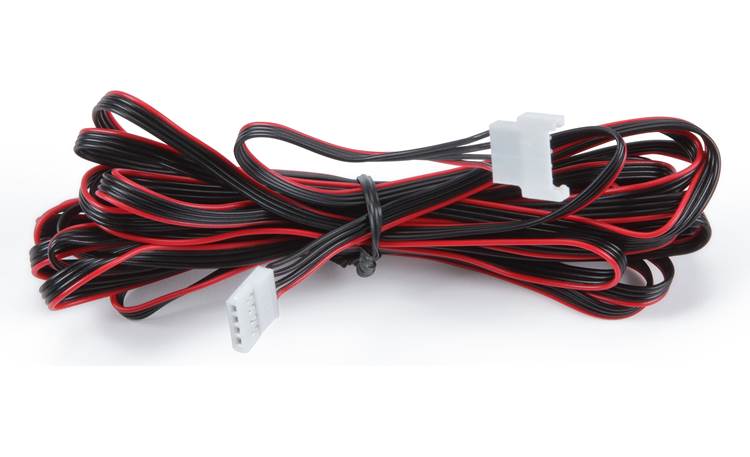

Note: A 10' harness (4-pin) is included to link up to twelve CW-DR1040ML subwoofers, so you can control them all with a single remote. When linked the subwoofers will display the same color pattern. You cannot control subwoofers individually.

Mounting Options: The Kenwood XM1041BL is designed for free-air application, but can also be installed in a sealed enclosure that measures 17.0" (w) x 17.0" (h) x 16.0" (d) with a 2.02 cu.ft internal volume and 9.1875" (diameter) mounting hole. The box should be made of 3/4" thick MDF (medium density fiberboard) or high density particle board. The grille is fixed and is not removable. The woofer is held in place by six screws.

Loading accessories...

1 question already asked

What Kenwood Marine Amp do you recommend to power one of these Subs?

chris Sep 15, 2023

1 answer

The Kenwood Excelon XM1041 marine subwoofer can handle a maximum of 300-watts RMS, Chris. For best performance, we can meet that number exactly at 4-ohms with the Kenwood Excelon XM502-1 in the link below. This amp is a perfect match! Do not forget to pair the Kicker 47KMPK8 marine wiring kit in the second link below, the right length marine 2-channel RCA, and marine 12-gauge speaker wire for your project. I hope this helps! https://www.crutchfield.com/p_113XM5021/Kenwood-Excelon-XM502-1.html https://www.crutchfield.com/p_20647KMPK8/Kicker-47KMPK8-8-gauge.html

bo Sep 15, 2023 (Staff)
