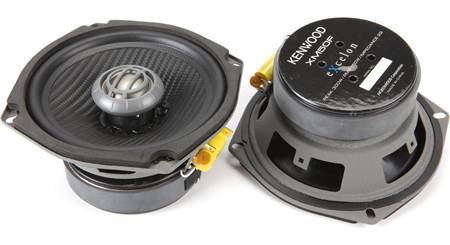

About the Kenwood Excelon XM50F

Product highlights:

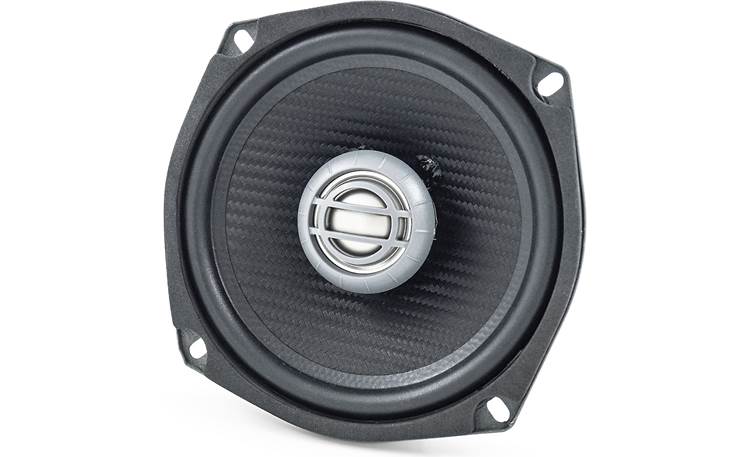

- 5-1/4" full-range motorcycle speakers
- designed for select Harley-Davidson motorcycles
- injection-molded polypropylene cone
- 1" PEI dome tweeter
- power handling up to 150 watts RMS (300 watts peak)
- frequency response: 40-25,000 Hz
- sensitivity: 94 dB
- 2-ohm impedance

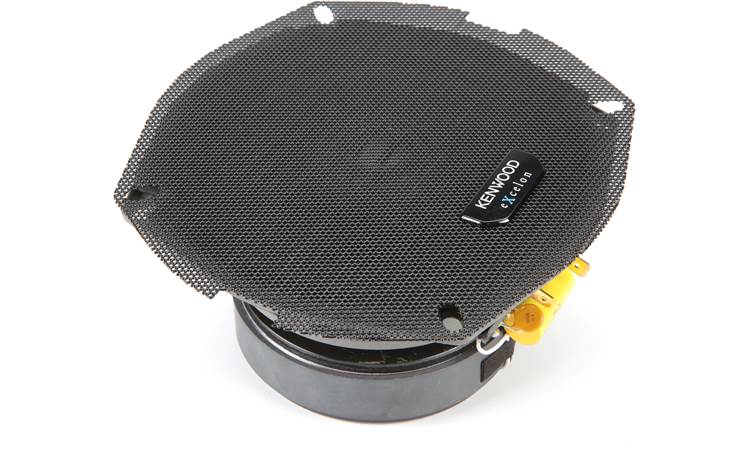

- grilles included
- top-mount depth: 2.45"
- cutout diameter: 4.79"
- frame diameter: 5.27"
- warranty: 2 years
- MFR # XM50F
- Item # 113XM50F
What's in the box:
Kenwood Excelon XM50F owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- 2 Gilles
- Instruction manual
More details on the Kenwood Excelon XM50F

Features & specs
General | ||
---|---|---|
Speaker Size | Vehicle-specific | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Polypropylene | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | PEI | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 2 | |
Weather-resistant | No | |

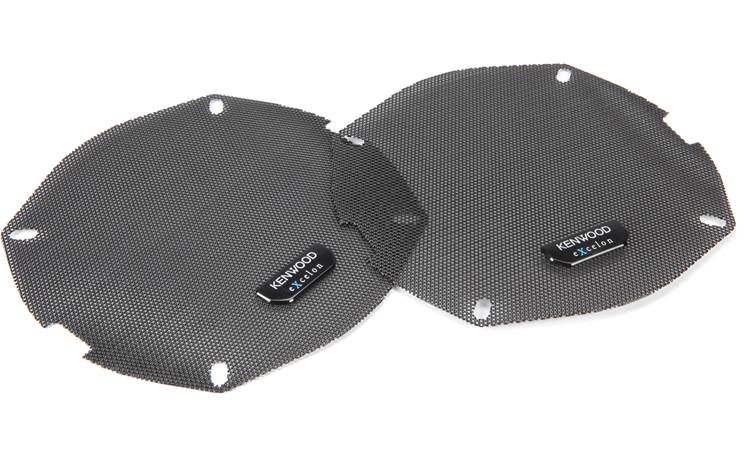

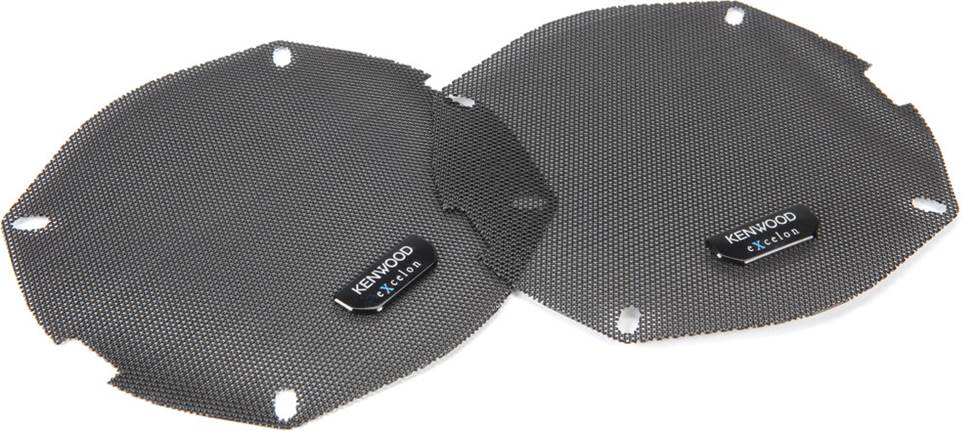

Grilles Included | Black steel mesh | |
Parts Warranty | 2 Years | |
Labor Warranty | 2 Years | |
Specifications | ||
Sensitivity (1W at 1 meter) | 94 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 40 - 25k Hz | |
Maximum RMS Wattage | 150 | |
Peak Power Handling (Watts) | 300 | |

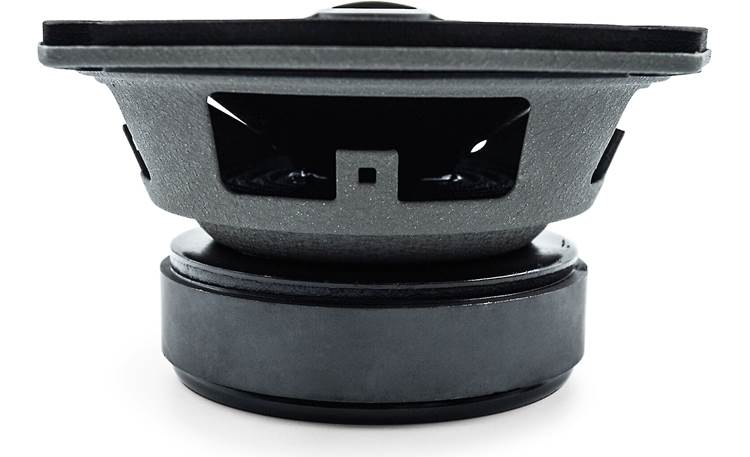

Top-mount Depth (Inches) | 2 1/2 | |
Bottom-mount Depth (Inches) | 2 3/4 | |
Cutout Diameter or Length (inches) | 4 13/16 | |
Mounting Height (Inches) | 0.53 | |
Frame Width | 5.274 | |
Frame Length | 5.274 |
Product Research
Features
Harley Davidson Integration: These Kenwood XM50F motorsports speakers are designed as direct replacements for the front factory speakers in select 1998-2013 Harley-Davidson models. The speakers mount using the factory hardware and the factory wiring plugs directly into the terminals. Please enter your model and year to confirm fit.

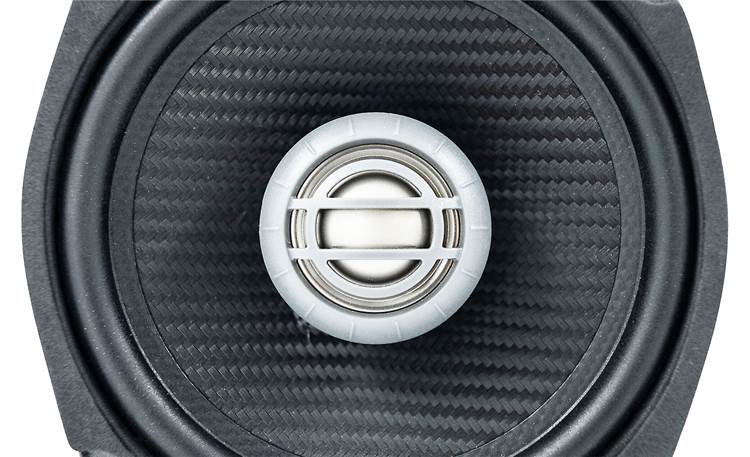

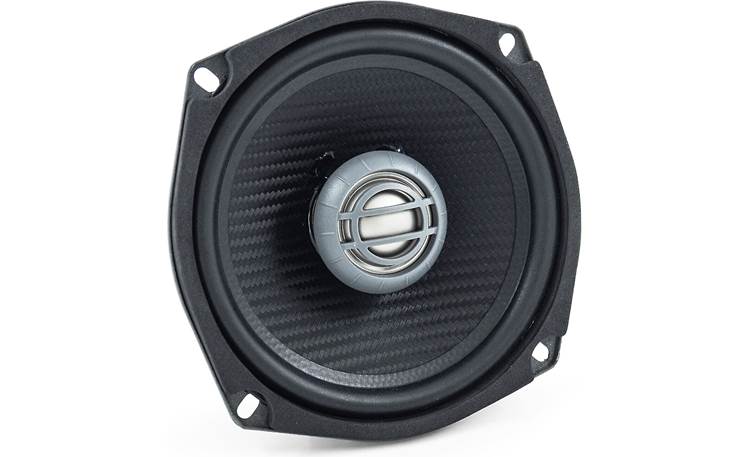

Construction: The woofer cones are IMPP (Injection Molded Polypropylene) and the coaxially-mounted dome tweeters have PEI (Poly-Ether-Imide) diaphragms.
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
Fit in my 2003 Harley Davidson Electra Glide with no problems.
Paul from Hampton, VA
