Axxess XSVI-1731-NAV Wiring Interface Connect a new stereo and retain factory backup camera in select 2016-20 Honda vehicles

Item # 1201731NAV

The Axxess XSVI-1731-NAV interface lets you connect your new car stereo to the factory wiring plug in select...

Find what Fits your vehicle

Remove

Checking fit...

The Axxess XSVI-1731-NAV interface lets you connect your new car stereo to the factory wiring plug in select...

California customers:
Please click here for your Proposition 65 warning.

1 question - 1 answer

Item # 1201731NAV

About the Axxess XSVI-1731-NAV Wiring Interface

Bob Bihlmayer

Axxess XSVI-1731-NAV

The Axxess XSVI-1731-NAV interface lets you connect your new car stereo to the factory wiring plug in select 2016-20 Honda vehicles. This adapter provides the electrical, ground, and speaker connections you need. It also retains the factory backup camera, and offers the reverse, parking brake, and Vehicle Speed Sensor (VSS) outputs needed for installing a new navigation receiver.

Axxess XSVI-1731-NAV

The Axxess XSVI-1731-NAV interface lets you connect your new car stereo to the factory wiring plug in select 2016-20 Honda vehicles. This adapter provides the electrical, ground, and speaker connections you need. It also retains the factory backup camera, and offers the reverse, parking brake, and Vehicle Speed Sensor (VSS) outputs needed for installing a new navigation receiver.

The XSVI-1731-NAV interface includes the AX-CAM6V 12-volt to 6-volt converter you'll need to power your backup camera. The interface also includes a pre-wired harness that plugs into the Axxess ASWC-1 interface (sold separately), saving you time and effort in getting your factory steering wheel audio controls to work with your new car stereo.

Please enter your vehicle information or call an Advisor at 1-888-955-6000 to find out if this adapter is compatible with your vehicle. Warranty: 1 year.

READ LESS

Product highlights:

  • connect a new stereo to your factory wiring plug
  • retains your Honda backup camera
  • provides connections for parking brake, Vehicle Speed Sensor (V.S.S.), and reverse for installing navigation receivers
  • includes prewired harness for ASWC-1 steering wheel control adapter
  • includes 12-volt to 6-volt converter to power backup camera
  • warranty: 1 year
  • MFR # XSVI-1731-NAV

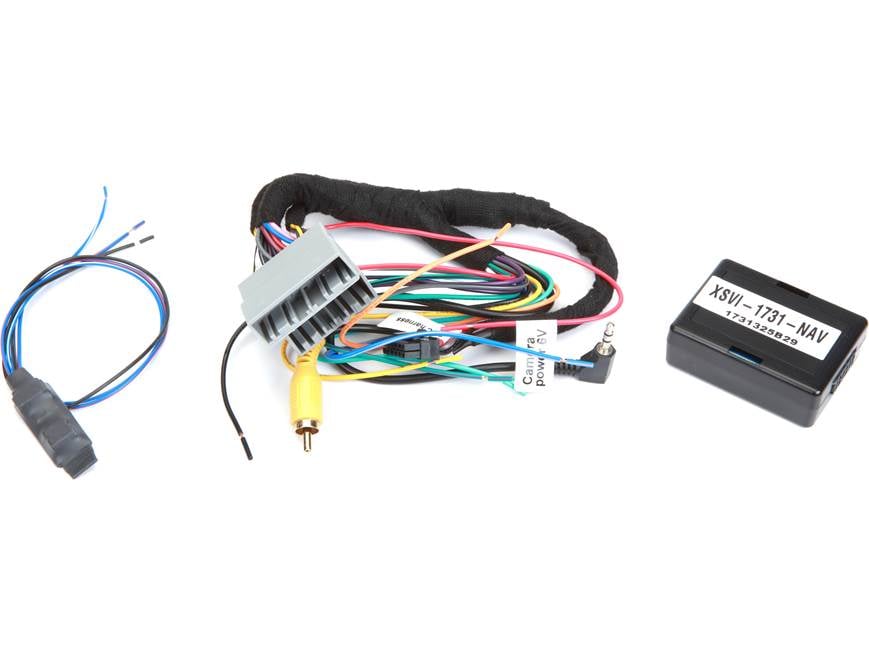

What's in the box:

  • Replacement radio interface module
  • Wiring harness
  • 12V-to-6V converter
  • Installation Instructions

Customer reviews for Axxess XSVI-1731-NAV Wiring Interface

Loading reviews...

Average review:

3.5 out of 5 stars
57 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Axxess XSVI-1731-NAV Wiring Interface

Stacey B.

Product Research

Features

Vehicle Compatibility: The XSVI-1731-NAV radio replacement interface module from Axxess Integrate allows you to replace the factory radio in your 2016-up Honda Civic LX with an aftermarket head unit while retaining important factory features.

Retained Factory Features: The Axxess Integrate XSVI-1731-NAV retains the following features in your 2016-up Honda Civic LX after you have replaced your factory radio with an aftermarket head unit.

  • R.A.P. (Retained Accessory Power): The XSVI-1731-NAV retains the R.A.P. function in your vehicle. R.A.P. (Retained Accessory Power) supplies power to the radio after the ignition is shut off until one of the front doors are opened.
  • Back Up Camera: The XSVI-1731-NAV's harness features a composite video connector which plugs into your aftermarket head unit's rear-view camera input in order to retain your vehicle's factory installed back up camera. A 12V-to-6V converter is supplied for camera power.
  • Optional Steering Wheel Control: The XSVI-1731-NAV interface features a right-angle 3.5mm connector that lets you keep your vehicle's factory steering wheel controls via the optional Axxess Steering Wheel Control Interface (120ASWC1, sold separately).

Outputs: The Axxess Integrate XSVI-1731-NAV provides a 12V/10A accessory output and navigation outputs to make installation easier and less time consuming.

  • Accessory (12V/10A): Because there is no 12-volt accessory wire in the factory harness of the 2016-up Honda Civic, the XSVI-1731-NAV provides a 12-volt, 10-amp switched accessory output. This prevents you from having to run an accessory wire to the fuse box or underneath the steering column when installing your aftermarket stereo.
  • Navigation: The XSVI-1731-NAV provides essential wires required for aftermarket radios that have navigation. VSS (Vehicle Speed Sense), Reverse, and Parking Brake wires are provided. This helps to cut down the installation time, since the installer does not have to look for these wires in the vehicle.

Color Codes: Wiring up the XSVI-1731-NAV is like wiring up any other wire harness that would attach to an aftermarket radio's harness. The Metra/EIA wire code can be found on the back of the interface's package that will aid you in the wiring of your aftermarket radio. The XSVI-1731-NAV interface contains the following wire leads -

Wiring Harness
Wire Color Function
Red Accessory
Yellow Battery
Black Ground
Orange Illumination
Gray Right Front +
Gray/Black Right Front  -
White Left Front +
White/Black Left Front -
Purple Right Rear +
Purple/Black Right Rear -
Green Left Rear +
Green/Black Left Rear -
Blue/Pink VSS (Vehicle Speed Sense)
Green/Purple Reverse
Light Green Parking Brake
Yellow Composite Video Jack Backup Camera
Right-Angle 3.5mm Jack SWC connector for ASWC-1
12V-to-6V Converter
Wire Color Function
Blue/White Reverse
Blue/Red Positive
Black Ground

Loading accessories...

Customer Q&A

1 question already asked

Q
Can you use this for an instillation of a 2020 honda civic touchscreen? I know the wiring harnesses are different but Iâ??m hoping this adapter will fix the problem.
angie  Mar 14, 2023
1 answer
A
Greetings Angie, and thank you for your question. This Axxess harness is to replace a factory radio in many 2016 and up Honda vehicles with an aftermarket stereo. Please contact one of our advisors at 800-324-9695 with your vehicle information, and what your project is.
hogan  Mar 14, 2023 (Staff)
