About the Metra 70-1693 Receiver Wiring Harness

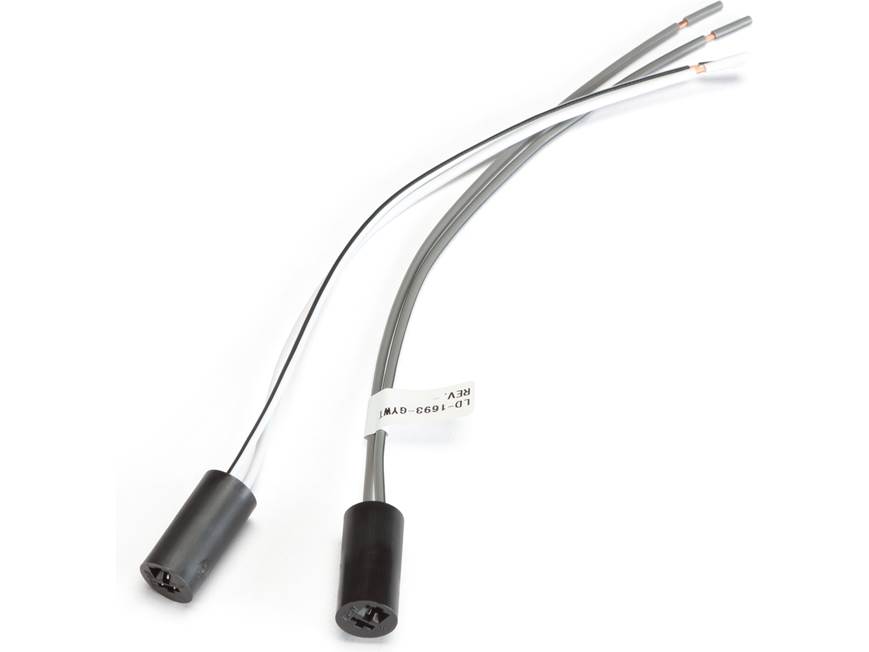

Metra 70-1693 receiver wiring harness
Metra 70-1693 receiver wiring harness
This vehicle-specific wiring harness makes connections between your new car stereo and your car's electrical system.
First, attach the color-coded wires on your Crutchfield-supplied harness to the wires from your new stereo. If you're not using a soldering iron, we recommend that you purchase some wire connectors to secure the connections. Check out our handy article on three ways to connect the wiring harness here.
Now, once this harness is connected to your new stereo, you'll be able to plug right into your car's factory radio connector. This harness saves installation time since you won't have to cut factory wires individually. A detailed instruction sheet comes with the harness. Warranty: 60 days.
Please read this important note: This harness may not contain provisions for every wire needed to complete your installation, and it will not accommodate special navigation, video, or factory steering wheel control connections. You will need a special adapter if you want your factory steering wheel audio controls to work with your new stereo.
Connections:
- left front speaker +/-
- right front speaker +/-
What's in the box:
Metra 70-1693 Receiver Wiring Harness owner's manual
- Two 2-wire receiver wiring harnesses (LD-1693-GYWT)
Customer reviews for Metra 70-1693 Receiver Wiring Harness
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Metra 70-1693 Receiver Wiring Harness

Product Research
Features
Crutchfield Wiring Harness: Crutchfield wiring harnesses prevent you from having to cut your vehicle's factory radio plug when replacing your factory radio with an aftermarket head unit. Simply solder or crimp the Crutchfield wiring harness to your aftermarket head unit's harness (solder & crimps not included), plug the aftermarket head unit's plug into the rear chassis of the aftermarket head unit, and plug the Crutchfield wiring harness into your vehicle's factory radio plug.
Wiring Notes: If the Crutchfield wiring harness is not equipped with a ground wire, you will need to ground the aftermarket head unit's ground wire to the metal chassis of your vehicle. Some vehicle's may require you to bypass the vehicle's factory amplifier (in another location from factory radio) or hardwire certain connections. If your vehicle is equipped with factory steering wheel controls, an additional adapter is required and sold separately.
Wire Code Chart:
Harness # 1
Wire Color | Function |
---|---|
White | Left Front Speaker + |
White/Black | Left Front Speaker - |
Harness # 2
Wire Color | Function |
---|---|
Gray | Right Front Speaker + |
Gray/Black | Right Front Speaker - |
The Crutchfield Car Selector: Please visit the Crutchfield Car Selector for your specific type of vehicle.
