Metra 71-017C Speaker Wiring Harnesses For select 1989-09 vehicles

Item # 12071017

These harnesses allow you to plug your new speakers into the factory connectors present in your vehicle's...

Find what Fits your vehicle

Remove

Checking fit...

These harnesses allow you to plug your new speakers into the factory connectors present in your vehicle's...

Item # 12071017

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns

About the Metra 71-017C Speaker Wiring Harnesses

Other info:
  • MFR # 71-017C
  • Item # 12071017
  • California customers: Please click here for your Proposition 65 WARNING.

More details on the Metra 71-017C Speaker Wiring Harnesses

Pat M.

Product Research

Features

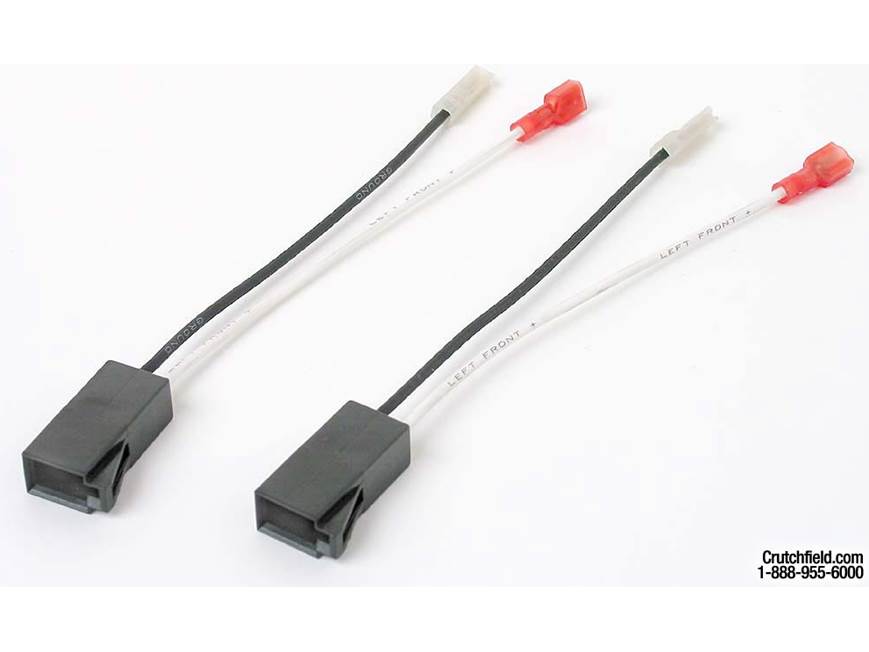

Speaker Harness: These speaker harnesses prevent you from having to cut your vehicle's factory speaker plugs when replacing your factory speakers with aftermarket car speakers. The speaker harness features two female quick-slide connectors on one end to attach directly to your new aftermarket car speakers & a proprietary Molex connector on the other end that connects to your vehicle's factory speaker plug.

Quick-Slide Connectors: The speaker harness is equipped with a large (positive) & small (negative) female quick-slide terminal. These quick-slide terminals fit directly onto most aftermarket car stereo speaker terminals (slight crimping may be required). In rare cases that the quick-slide terminals do not fit your car speaker terminals, you will need to solder the speaker harness to your aftermarket speaker's terminals or replace the quick-slide connectors on the speaker harness with the correct size terminal.

Note: Installation tools, hardware, & accessories are not included & sold separately. Please see the Accessories tab for recommendations & availability.

Quick-Slide Terminal Measurements: The positive female quick-slide terminal measures 0.205" (inner width), while the negative female quick-slide terminal measures 0.115" (inner width).

Wire Code Chart: Two identical speaker harnesses are included.

Wire Color Function
White Positive
Black Negative

Loading accessories...

Customer Q&A

2 questions already asked

Q
Will this work for my 2008 Chevy Equinox to hook up my new focal pc165 speakers?
casey  Oct 13, 2020
1 answer
A
Yes, those are the correct harnesses for your 2008 Equinox. Those work in the front and rear doors.
allison  Nov 08, 2020 (Staff)
Q
Are there male adapter metra wiring harness for sale that would fit these from Crutchfield?
geoffrey  Jun 05, 2017
1 answer
A
Thanks for your question. As it turns out, no. The male end usually comes from the factory location since that's what these adapt to. You may have to check with a vehicle manufacturer or junk yard.
kenneth  Jun 05, 2017 (Staff)
