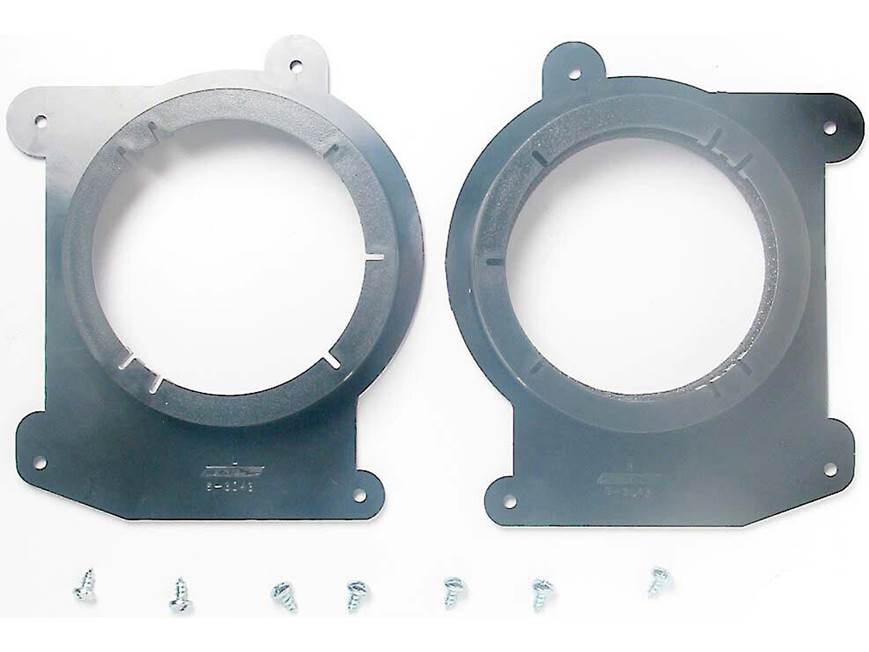

About the Metra 82-3043 Speaker Mounting Brackets
What's in the box:
Metra 82-3043 Speaker Mounting Brackets owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two speaker adapter brackets
- 8 Screws (for mounting bracket in the vehicle)
- 2 Adhesive backed foam gaskets
- Instructions
Other info:
- MFR # 82-3043
- Item # 120823043
- California customers: Please click here for your Proposition 65 WARNING.
More details on the Metra 82-3043 Speaker Mounting Brackets

Product Research
Features
Overview: The 82-3043 is compatible with select 1994-2005 GM and Isuzu trucks. The bracket is designed to allow replacement of the factory speakers with select aftermarket 6-1/2 and 5-1/4 speakers. (Please refer to the Crutchfield Vehicle Selector to confirm fit in your vehicle.)
6-1/2 Speakers: 6-1/2 speakers with the 3-hole bolt pattern or the symmetrical 4-hole bolt pattern can be mounted using the tabs around the inner speaker opening of this bracket (if the hole spacing matches).
5-1/4 Speakers: The frame diameter of some 5-1/4s is smaller than the bracket's cutout; in these cases a speaker baffle should be used to seal the rear of the speaker.
Dimensions:
- Cutout Diameter: 5.089"
- Height: 1.47"
- Three-Hole Spacing (6-1/2): 4.5"-4.95"
- Four-Hole Spacing (5-1/4):
- Perimeter: 3.7"-4"
- Diagonal: 5.2"-5.65"
Loading...
Loading accessories...
Customer Q&A
1 question already asked
Loading...
Loading articles...
When I opened up the door panel I was very glad that Crutchfield had sent along the mounting brackets. After drilling out the rivets in the original speakers these were a snap to install. Remember to put the speakers in the brackets before putting the bracket on the door panel.
Scott from Pennsylvania
