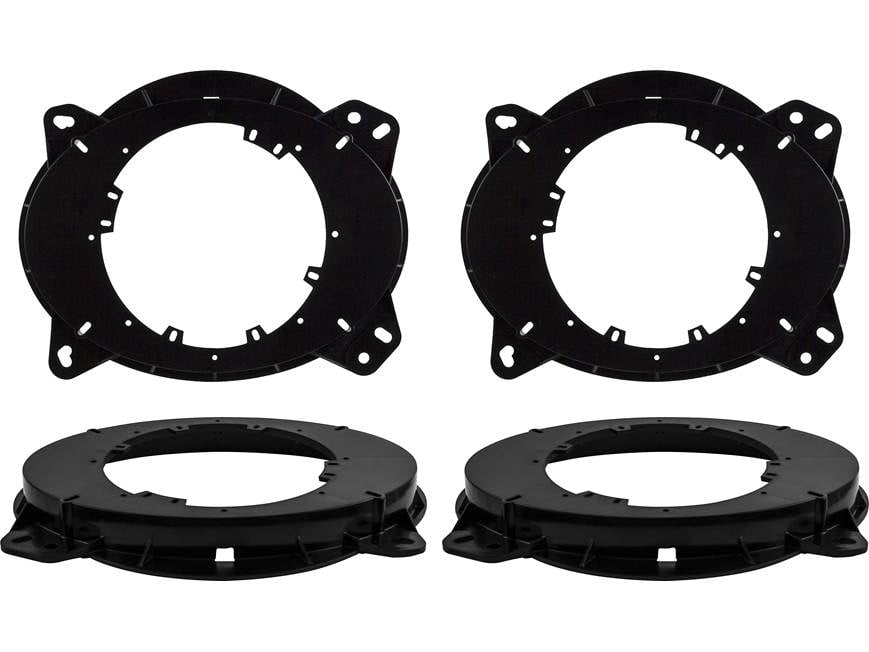

Metra 82-8147 Speaker Mounting Brackets

Features

Overview: As of 3/28/19, the 82-8147 is compatible with select 2003-2019 Lexus, Nissan, Subaru, and Toyota vehicles. The bracket is designed to allow easy replacement of the factory speakers with select aftermarket 6½ and 6¾ speakers. (Please refer to the Crutchfield Vehicle Selector to confirm fit in your vehicle.)

6¾ Speakers: For a 6¾ speaker to fit in the opening of this bracket, the tabs around the inner speaker opening will need to be removed. They are scored along the bottom for easy removal, but still may require pliers and a file.

6½ Speakers: 6½ speakers with a 3-hole or 4-hole bolt pattern can be mounted using the tabs around the inner speaker opening of this bracket.

5¼ Speakers: While a 5¼ speaker will mount easily in this bracket given the bolt pattern, the frame of a typical 5¼ is approximately ½" smaller than the opening in the bracket, making a 6½ or 6¾ a better fit. When using a 5¼, a speaker baffle must also be used to seal the rear of the speaker.

Dimensions:

• Inner Diameter: 5.744" (not accounting for the inner tabs)
• Height: 1.05"
• Three-Hole Tab Spacing (6½): 4.534"-5.030"
• Symmetrical Four-Hole (6½ and 5¼):
  • Perimeter: 3.679"-4.126"
  • Diagonal: 5.260"-5.787"
• Ford Four-Hole (6½):
  • Minor Axis: 3.679"-4.126"
  • Major Axis: 4.534"-5.030"
• Four-Hole Spacing (6¾):
  • Perimeter: 4.276"-4.542"
  • Diagonal: 6.094"-6.378"
