About the Metra 82-8148 Speaker Mounting Brackets
Metra 82-8148
Metra's 82-8148 brackets will allow you to install 5-1/4", 6-1/2" or 6-3/4" speakers in your factory speaker openings. Please enter your vehicle information or call an Advisor at 1-888-955-6000 to find out if these adapters are compatible with your vehicle. Warranty: 1 year.

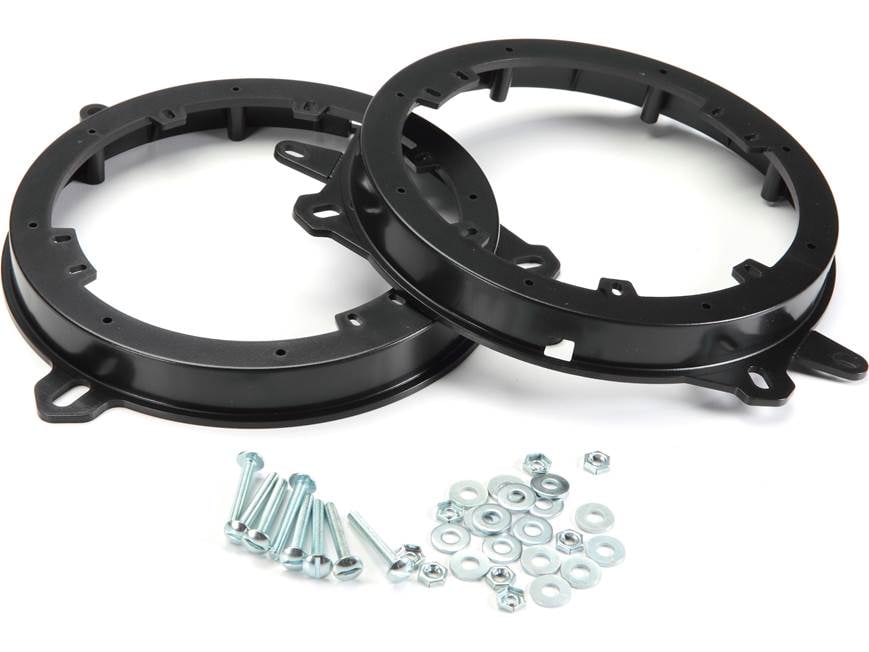

What's in the box:
Metra 82-8148 Speaker Mounting Brackets owner's manual
- 2 Speaker adapter brackets
- Eight 8/32 x 1-1/4" Bolts
- 16 Flat washers
- 8 Nuts
- Instructions
Customer reviews for Metra 82-8148 Speaker Mounting Brackets
Loading...
Loading reviews...
Average review:
4.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Metra 82-8148 Speaker Mounting Brackets
Product Research
Features
Overview: The 82-8148 is compatible with select 2000-2015 Lexus, Pontiac, Scion, Subaru, and Toyota vehicles. The bracket is designed to allow easy replacement of the factory speakers with select aftermarket 6-1/2 and 6-3/4 speakers. (Please refer to the Crutchfield Vehicle Selector to confirm fit in your vehicle.)
6-3/4 Speakers: For a 6-3/4 speaker to fit in the opening of this bracket, the tabs around the inner speaker opening will need to be removed. They are scored along the bottom for easy removal, but still may require pliers and a file.
6-1/2 Speakers: 6-1/2 speakers with the 3-hole or 4-hole bolt pattern can be mounted using the tabs around the inner speaker opening of this bracket (if the hole spacing matches).
5-1/4 Speakers: While a 5-1/4 speaker will mount easily in this bracket given the bolt pattern, the frame of a typical 5-1/4 is approximately 1/2" smaller than the opening in the bracket, making a 6-1/2 or 6-3/4 a better fit. When using a 5-1/4, a speaker baffle must also be used to seal the rear of the speaker.
Dimensions:
- Inner Diameter: 5.735" (not accounting for the inner tabs)
- Height: 0.875"
- Three-Hole Tab Spacing (6-1/2): 4.65"-4.95"
- Four-Hole Tab Spacing (6-1/2):
- Perimeter: 3.8"-4.02"
- Diagonal: 5.36"-5.68"
- Four-Hole Spacing (6-3/4):
- Perimeter: 4.4"
- Diagonal: 6.225"
Loading...
Loading accessories...
Customer Q&A
6 questions already asked
Loading...
Loading articles...
I had to modify the brackets before mounting. This was easy to figure out but the guidance in the package was not close The sound is good enough for my 2010 Tacoma.
Joseph from Knoxville, TN
