About the Axxess AXBUC-VW92 Backup Camera Harness
What's in the box:
Axxess AXBUC-VW92 Backup Camera Harness owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Camera retention interface
- Camera retention harness
- Installation Instructions
Other info:
- MFR # AXBUC-VW92
- Item # 120AXBVW92
- California customers: Please click here for your Proposition 65 WARNING.
More details on the Axxess AXBUC-VW92 Backup Camera Harness

Product Research
Features

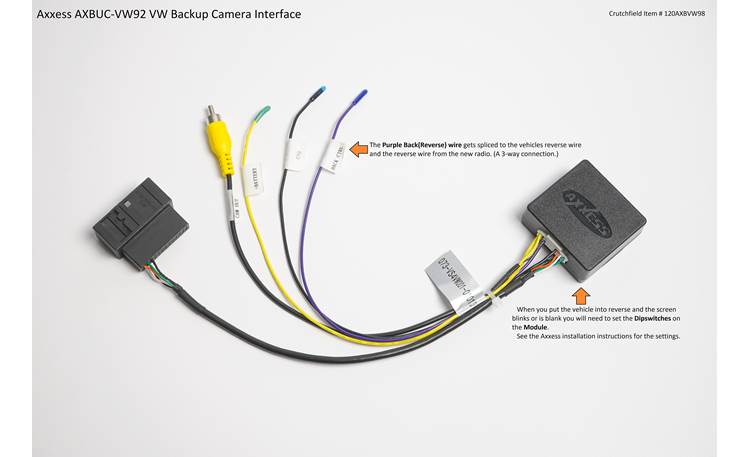

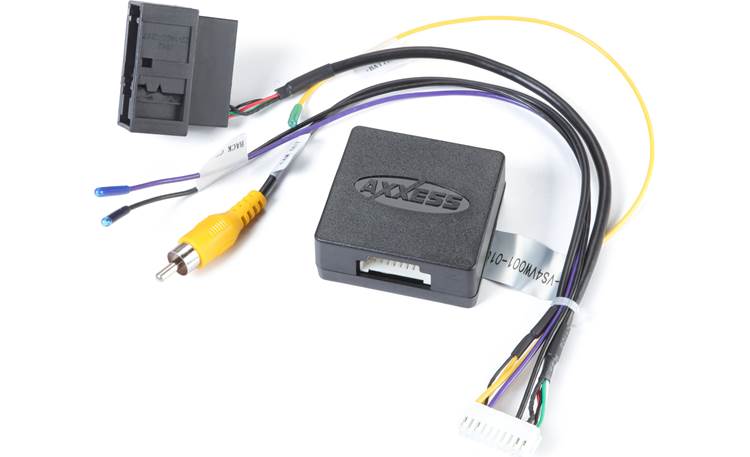

Volkswagen Backup Camera Retention Interface: The Axxess Integrate AXBUC-VW92 retains the factory backup camera in select 2008-2015 Volkswagen and Skoda vehicles when replacing the factory radio with an aftermarket head unit. The male composite video RCA jack of the AXBUC-VW92 will plug into your aftermarket stereo's composite video camera input and display the factory backup camera's image on your aftermarket head unit's touchscreen monitor.
Make | Model | Year |
---|---|---|
Volkswagen | Amarok | 2010-2014 |
EOS | 2009-2014 | |
Golf | 2008-2014 | |
Jetta | 2009-2014 | |
Passat | 2010-2015 | |
Polo | 2008-2014 | |
Scirocco | 2008-2015 | |
Touran | 2010-2015 | |
Transporter | 2009-2014 | |
Skoda | Octavia | 2009 |
Superb | 2008-2015 |
Notes:
- For vehicles equipped with RNS510 (MFD3), RNS315, Columbus (Skoda), or RCD510 (with 26-pin connector).
- There are 4 dip-switches that will need to be configured on the interface based on the make, model, year of vehicle (see Installation Instructions).
- The AXBUC-VW2 is not compatible with vehicles that have a motorized factory camera door.
The Axxess AXBUC-VW92 Backup Camera Harness replaces these items:

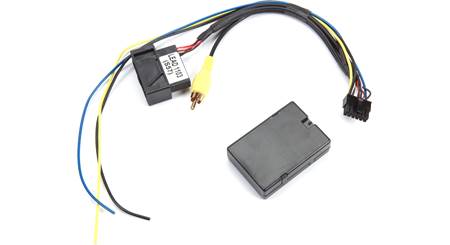

Scosche CRTVW01 Backup Camera Harness
- connects factory VW rear-view camera to the display screen on the aftermarket car stereo
- 26-pin Volkswagen connector to composite video connector
Loading...
Loading accessories...
Customer Q&A
1 question already asked
Loading...
Loading articles...
My Axxess AXBUC-VW92 Backup Camera Harness was very easy to install on the radio and the existing vehicle wiring harness, connected quickly and allows editing of the location of the lines in the back-up camera. I highly recommend this harness.
Rick from Grass Valley, CA
