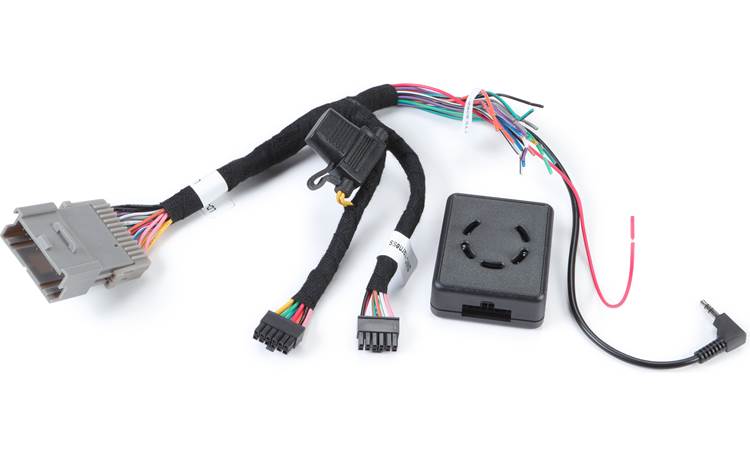

About the Axxess AXDI-CL2 Wiring Interface
Product highlights:
- retains safety chimes through an onboard speaker
- retains balance and fade controls and retained accessory power (R.A.P.)
- provides 12-volt 10-amp accessory power
- provides outputs for NAV receivers (parking brake, reverse, speed sense)
- includes pre-wired harness for Axxess' AXSWC steering wheel control adapter (sold separately)
- warranty: 1 year
- MFR # AXDI-CL2
- Item # 120AXDICL2
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Axxess AXDI-CL2 Wiring Interface owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Radio replacement interface module w/ built-in chime speaker
- Wiring harness
- Installation Instructions
More details on the Axxess AXDI-CL2 Wiring Interface
Researched by Crutchfield's Stacey B.
The Axxess AXDI-CL2 Wiring Interface replaces these items:
Product Research
Features
Vehicle Compatibility: The Axxess Integrate AXDI-CL2 allows you to replace the factory radio in select 2000-2013 GM vehicles with an aftermarket stereo while retaining important factory equipped features.
| Make | Model | Year |
|---|---|---|
| Buick | Century | 2004-2005 |
| LaCrosse | 2005-2009 | |
| Rainier | 2004-2007 | |
| Regal | 2004 | |
| Rendezvous | 2002-2007 | |
| Terraza | 2005-2007 | |
| Cadillac | Escalade/Escalade (ESV / EXT) | 2003-2006 |
| Chevrolet | Avalanche | 2003-2006 |
| Cavalier | 2000-2005 | |
| Colorado | 2004-2012 | |
| Corvette | 2005-2013 | |
| Express | 2003-2007 | |
| Impala | 2000-2005 | |
| Kodiak C4500-C8500 | 2003-2009 | |
| Malibu | 2001-2003 | |
| Malibu Classic | 2004-2005 | |
| Monte Carlo | 2000-2005 | |
| Silverado | 2003-2006 | |
| Silverado Classic | 2007 | |
| SSR | 2003-2006 | |
| Suburban | 2003-2006 | |
| Tahoe | 2003-2006 | |
| Trailblazer | 2002-2009 | |
| Uplander | 2005-2008 | |
| GMC | Canyon | 2004-2012 |
| Envoy | 2002-2009 | |
| Savana | 2003-2007 | |
| Sierra | 2003-2006 | |
| Sierra Classic | 2007 | |
| TopKick C4500-C8500 | 2005-2009 | |
| Yukon / Yukon XL | 2003-2006 | |
| Hummer | H2 | 2003-2007 |
| H3/H3t | 2006-2010 | |
| Isuzu | Ascender | 2003-2008 |
| H-Series | 2003-2008 | |
| I-Series | 2006-2008 | |
| Oldsmobile | Alero | 2001-2004 |
| Bravada | 2002-2004 | |
| Intrigue | 2002 | |
| Pontiac | Aztec | 2001-2005 |
| Grand Am | 2001-2005 | |
| Grand Prix | 2004-2008 | |
| Montana SV6 | 2005-2006 | |
| Sunfire | 2000-2005 | |
| Saab | 9-7x | 2005-2009 |
| Saturn | Relay | 2005-2007 |
Retained Factory Features: The Axxess Integrate AXDI-CL2 retains the following factory features in your vehicle after you have replaced the stock radio with an aftermarket head unit.
- Factory Non-Amplified and Amplified System Compatible: The Axxess Integrate AXDI-CL2 is designed for GM vehicles with factory non-amplified audio systems, factory analog amplified audio systems, or when bypassing the factory amplifier. The AXDI-CL2 will retain balance and fade control.
- R.A.P. (Retained Accessory Power): The ignition power source of most GM vehicles keeps the radio on until one of the doors is opened. This feature is called the R.A.P. (retained accessory power). The Axxess Integrate AXDI-CL2 is designed to retain this feature.
- Retains Warning Chimes: The Axxess Integrate AXDI-CL2 retains factory warning chimes through the use of an on-board speaker.
Outputs: The Axxess Integrate AXDI-CL2 provides a 12V/10A accessory output and navigation outputs to make installation easier and less time consuming.
- 12V/10A Accessory Output: In many GM vehicles, there is no 12-volt accessory wire in the factory harness, which requires the installer to run an accessory wire to the fuse box or underneath the steering column when installing an aftermarket radio. The AXDI-CL2 is designed to provide a 12-volt/10-amp switched accessory output (red wire).
- Navigation Outputs: The AXDI-CL2 provides navigation outputs (VSS, Parking Brake, and Reverse) to help ease the installation process of an aftermarket navigation stereo.

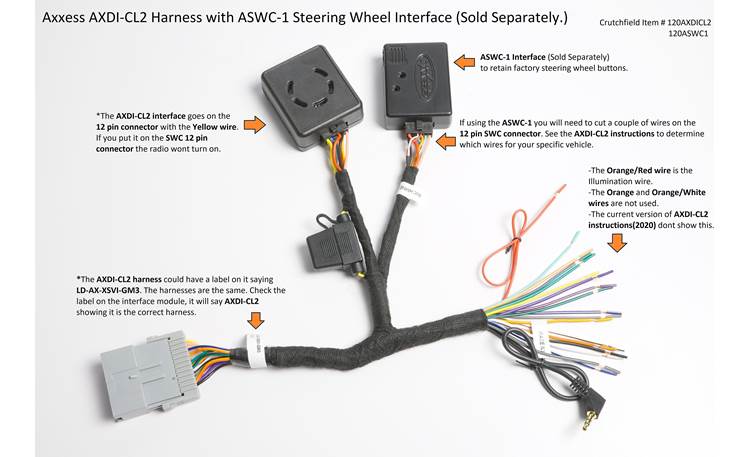

Optional Steering Wheel Control Adapter: The AXDI-CL2 allows you to retain your vehicle's steering wheel controls using Metra's ASWC-1 steering wheel control interface module (sold separately). Your aftermarket stereo must also support steering wheel controls.
The Axxess AXDI-CL2 Wiring Interface replaces these items:
Axxess AX-GMCL2 Wiring Interface
Connect a new car stereo and retain factory door chimes and audible safety warnings in select 2000-12 GM vehicles (does not retain OnStar)
- retains chimes and all audible safety warnings
- prewired harness connects to ASWC-1 steering wheel control adapter (sold separately)
- provides NAV outputs (illumination, parking brake, reverse, speed sense)
Loading...
Loading accessories...
Customer Q&A
8 questions already asked
Q
If I use this will I still need to run an accessory wire to the fuse box or under the steering column?
christopher Jun 10, 2025
1 answer
A
No, this wiring interface creates the accessory wire for the new radio
jason Jun 10, 2025 (Staff)
Q
I have a 2005 Chevy Colorado with an I have aftermarket Sony head unit and Iâ??m confused on what wiring harness i would need or that would fit. What would be the best option for my vehicle and head unit?
levi Jun 07, 2025
1 answer
A
Greetings Levi. We are going to have a few wiring adapters for the Colorado. For your best option, you would want to call one of our advisors at 800-324-9695.
thomas Jun 07, 2025 (Staff)
Q
I have a 2004 Chevy Silverado 2500hd crew cab and Iâ??m not sure what exactly I need. I do have a Bose system in it and just confused on what exactly Iâ??m supposed to be looking for. Will this work with the Bose system?
london May 25, 2025
1 answer
A
This wiring interface does not work to install a new radio into your pickup. We have a few different wiring interfaces that can work and a few other vehicle specific installation parts that are needed too. I recommend contacting a product advisor by calling 1-800-324-9695 to get a personal recommendation on all the gear you will need
jason May 27, 2025 (Staff)
Q
I have a 2010 Chevy Colorado and a Sony ax7000 what harness kit do I need to Hook everything up looking for plug and play kit mainly?
peter b Apr 18, 2025
1 answer
A
This harness works in some of the Colorado pickups and there might be a better harness depending on the options that comes in the pickup. I recommend contacting a product advisor by calling 1-800-324-9695 to check your Colorado
jason Apr 19, 2025 (Staff)
Loading...
Loading articles...
Saves time doing self install. I also added the pre-connected harness for the extra $28, very well worth it & saves both time & frustration. Original chimes were retained, not that I necessarily like chimes but reminds me to take my keys which I sometimes forget.
Douglas from Lake Mills, IA
