Axxess AX-LCD Interface 2.5" LCD screen — works with aftermarket interfaces to retain control of the onscreen factory setup options in select vehicles

Item # 120AXLCD

The Axxess AX-LCD interface is a compact LCD screen that works in conjunction with select aftermarket radio...

Find what Fits your vehicle

Remove

Checking fit...

The Axxess AX-LCD interface is a compact LCD screen that works in conjunction with select aftermarket radio...

California customers:
Please click here for your Proposition 65 warning.

Item # 120AXLCD

Shop all Metra Factory System Adapters

About the Axxess AX-LCD Interface

Bob Bihlmayer

Keep your onscreen set-up options

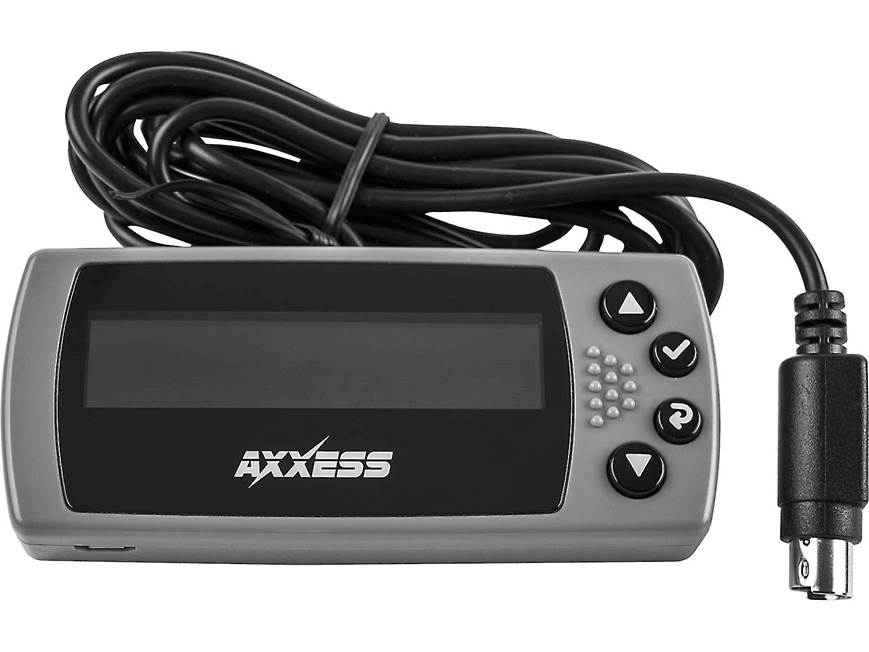

The Axxess AX-LCD interface is a compact LCD screen that works in conjunction with select aftermarket radio replacement interfaces (sold separately) to retain control of the onscreen factory setup options in select vehicles from GM, Fiat, Ford, Mazda, RAM, Saab, and Toyota.

Keep your onscreen set-up options

The Axxess AX-LCD interface is a compact LCD screen that works in conjunction with select aftermarket radio replacement interfaces (sold separately) to retain control of the onscreen factory setup options in select vehicles from GM, Fiat, Ford, Mazda, RAM, Saab, and Toyota.

Once the screen is installed and plugged into the interface module, you'll be able to select lighting options, door lock options, factory security settings, and other comfort and convenience options, even though you've replaced your factory radio.

In select vehicles, the AX-LCD fits perfectly into an aftermarket dash kit, so you can access your setup options from the driver's seat. In select other vehicles, you'll attach the screen to the dash or hide it away in a convenient spot so you can change the options when you need to.

READ LESS

Highlights:

  • LCD screen with 2-line, 16-character display
  • works in conjunction with select aftermarket radio replacement interfaces (sold separately) to retain control of onscreen factory setup options
  • suitable for use in select GM, Fiat, Ford, Mazda, RAM, Saab, and Toyota vehicles
  • dimensions: 2-9/16"W x 5/8"H
  • warranty: 1 year
  • MFR # AX-LCD

What's in the box:

  • LCD screen (w/ attached 6' DIN cable)
  • 15" DIN harness
  • Installation Instructions

Customer reviews for Axxess AX-LCD Interface

Loading reviews...

Average review:

1.0 out of 5 stars
2 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Axxess AX-LCD Interface

Stacey B.

Product Research

Features

Personalization Menu Retention: The AX-LCD allows you to retain the personalization menu that is lost when you replace the factory radio with an aftermarket head unit in select vehicle applications; ranging from GM, Ford/Lincoln/Mercury, Mazda, RAM, SAAB, & Toyota.

LCD Module: The LCD module consists of a 2.5" (diagonal) screen which offers 256 color adjustments. There are 4 push-button controls to toggle up/down through menu options, return to previous menu, and select current menu option.

DIN Cable: The LCD module features an attached 6' DIN cable that will plug into select aftermarket radio replacement interfaces (sold separately) for specific vehicles. Compatible interface modules include the Axxess AX-ADGM01, XSVI-9006-NAV, GMOS-MOST-01, GMOS-LAN-09.

Note: Some vehicle installations will require the splicing of two CAN data wires behind the radio, using the included 15" wiring harness.

GM Kit: The Metra 99-3015G kit for select Chevy and GMC vehicles offers a mounting provision for the LCD module.
