About the Install Bay Circuit Breaker

What's in the box:
- 200A Circuit breaker
Other info:
- MFR # E-CB200MR
- Item # 120CB200MR
- California customers: Please click here for your Proposition 65 WARNING.
More details on the Install Bay Circuit Breaker

Product Research
Features

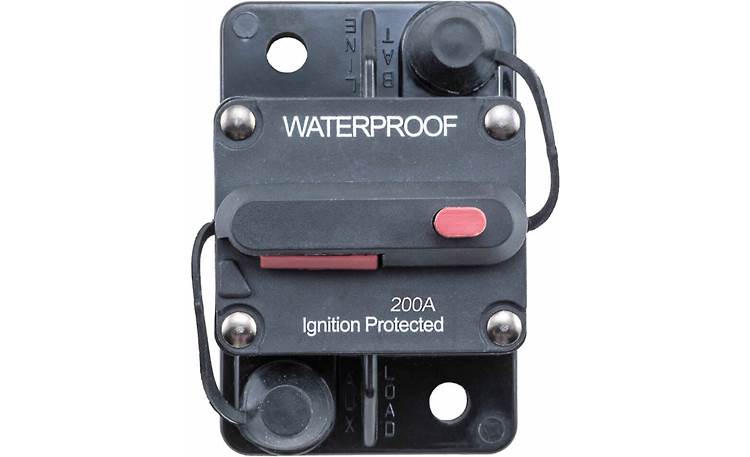

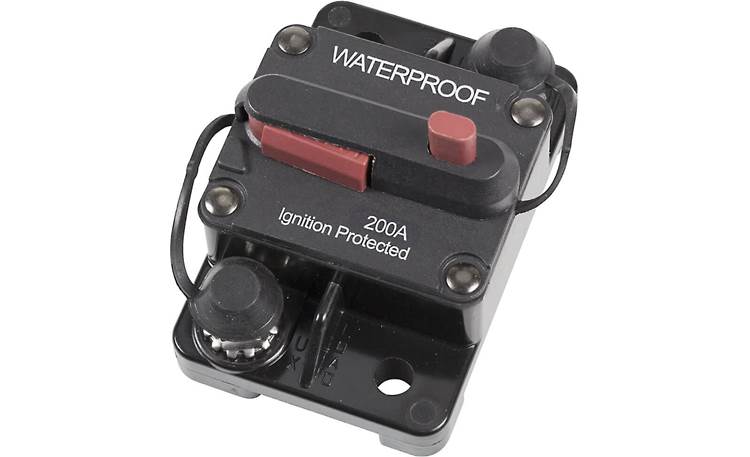

Overview: The Install Bay E-CB200MR is an ignition protected circuit breaker housed in an impact-resistant polycarbonate body. It has a rating of 200-amps, and protects your vehicle and electronics without the need for constantly changing blown fuses. If a short circuit occurs, the circuit breaker will safely and instantly disconnect your electronics. A red lever will indicate that the circuit breaker has activated. To reset the breaker, simply return the lever to the normal position. A manual disconnect button is also included to allow you to break the circuit whenever you want. The base has two holes that allow you to mount the circuit breaker with screws or wire ties (not included).
IP67 Rated: The Install Bay E-CB200MR features a waterproof, IP67-rated design for use in engine compartments and wet area applications.
Wire Connections: The E-CB200MR features two 0.375" diameter threaded posts, each with a lock-washer nut, for attaching your input and output wires. The threaded posts can accommodate ring terminals or bare-ended wire. Rubber caps are provided to help protect the wire terminals.
