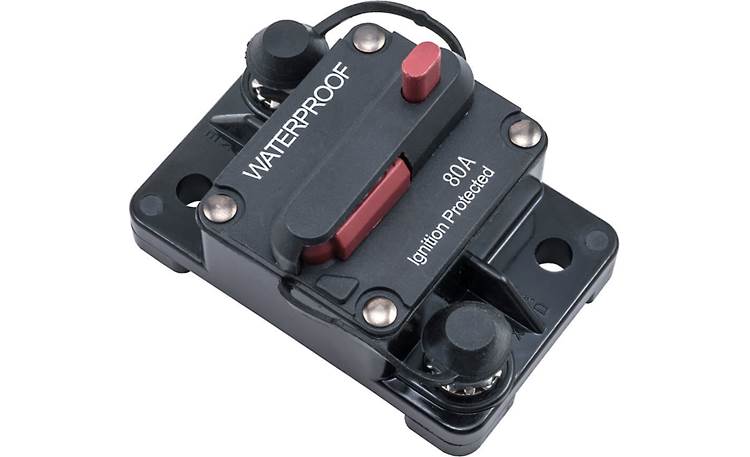

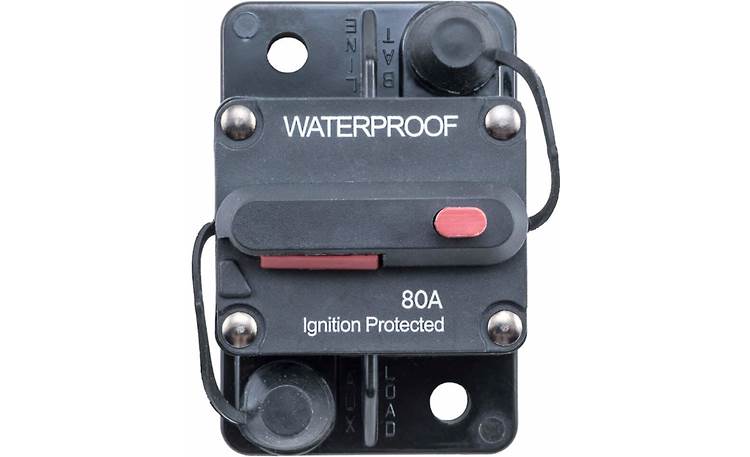

Install Bay Circuit Breaker Waterproof circuit breaker with manual bypass and reset (80A)

Item # 120CB80MR

The Install Bay circuit breaker features an IP67 rating, ignition protection, and both reset and disable buttons.

The Install Bay circuit breaker features an IP67 rating, ignition protection, and both reset and disable buttons.

California customers:
Please click here for your Proposition 65 warning.

Item # 120CB80MR

In stock
$39.99

Other options

About the Install Bay Circuit Breaker

Buck Pomerantz

Reliable safety in all weather conditions

This Install Bay circuit breaker features an IP67 rating against water and dirt, so it'll work well in all conditions on land or water. It also features ignition protection for safety in fume-prone areas, and both trip/reset and disable/bypass buttons that give you complete control over the power flow to your audio amplifier, lighting system, trolling motor, or other electrical accessory.

Reliable safety in all weather conditions

This Install Bay circuit breaker features an IP67 rating against water and dirt, so it'll work well in all conditions on land or water. It also features ignition protection for safety in fume-prone areas, and both trip/reset and disable/bypass buttons that give you complete control over the power flow to your audio amplifier, lighting system, trolling motor, or other electrical accessory.

Practical design

This compact circuit breaker's mounting area is less than 2 inches by 3 inches, so it'll fit almost anywhere. The connections are clearly labelled, so you'll know which one is supposed to go the battery and which one connects to the device you want protected. Toothed lock washers ensure good electrical conduction. The binding posts accept ring terminal connectors or bare wires and have weather-proof caps to help protect the binding posts against corrosion. Warranty: 1 year.

READ LESS

What's in the box:

  • 80A Circuit breaker
MFR #E-CB80MR

Customer reviews for Install Bay Circuit Breaker

We don't have any reviews, yet.
Submit a review and then enter to win a $350 gift card.
Be the first to review this product

Loading reviews...

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Install Bay Circuit Breaker

Mark G.

Product Research

Features

Overview: The Install Bay E-CB80MR is an ignition protected circuit breaker housed in an impact-resistant polycarbonate body. It has a rating of 80-amps, and protects your vehicle and electronics without the need for constantly changing blown fuses. If a short circuit occurs, the circuit breaker will safely and instantly disconnect your electronics. A red lever will indicate that the circuit breaker has activated. To reset the breaker, simply return the lever to the normal position. A manual disconnect button is also included to allow you to break the circuit whenever you want. The base has two holes that allow you to mount the circuit breaker with screws or wire ties (not included).

IP67 Rated: The Install Bay E-CB80MR features a waterproof, IP67-rated design for use in engine compartments and wet area applications.

Wire Connections: The E-CB80MR features two 0.25" diameter threaded posts, each with a lock-washer nut, for attaching your input and output wires. The threaded posts can accommodate ring terminals or bare-ended wire. Rubber caps are provided to help protect the wire terminals.

Loading accessories...

Customer Q&A

2 questions already asked

Q
Can this be used in place of the factory fusible link between the alternator and battery in a '06 Jeep Wrangler?
walter l  Oct 24, 2023
1 answer
A
I would not advise it, Walter. This Install Bay 150A circuit breaker is designed for high-powered audio systems and marine supplementary battery installs, we could not guarantee performance if you are using the Install Bay 150A circuit breaker as a replacement for any original equipment fuses in your vehicle.
bo  Oct 24, 2023 (Staff)
Q
I have the JL Audio XDM300/1 what AMP should I use with it?
jiovani  Feb 27, 2024
1 answer
A
The JL Audio XDM300/1 has a 30A fuse rating, Jiovani. We do not offer the Install Bay circuit breaker in an amperage rating lower than 50A, a 30A would be the best pairing.
bo  Feb 29, 2024 (Staff)
