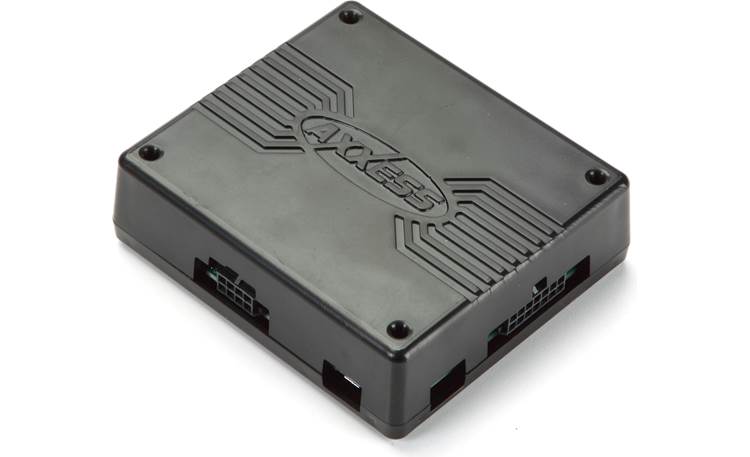

Axxess GMOS-MOST-01 MOST Wiring Interface

Features

Radio Replacement Interface (for GM): The Axxess Integrate GMOS-MOST-01 allows you to replace the factory radio in select GM vehicles with an aftermarket head unit, while retaining factory features that are normally lost when removing the factory radio.

Vehicle Compatibility: The GMOS-MOST-01 radio replacement interface is compatible with the following 2014-up GM vehicles (as of 8/19/15):

Retained Features: The Axxess Integrate GMOS-MOST-01 will retain your GM vehicle's factory MOST amplifier, OnStar, Bluetooth, Aux input, backup camera, R.AP., warning chimes, & turn-signals.

• MOST Amplifier: This radio replacement interface allows you to retain your GM vehicle's factory MOST amplifier.
• OnStar: The GMOS-MOST-01 is designed to retain the factory OnStar emergency services system that would normally be lost when your GM factory radio is replaced with an aftermarket stereo.
• Bluetooth: The GMOS-MOST-01 also retains your factory Bluetooth functionality and microphone. (The factory microphone still integrates with the factory Bluetooth system, it does not interface with the aftermarket radio).
• Aux Input: To retain your GM vehicle's factory Aux input, your aftermarket stereo must have a rear-panel Aux input (male mini to female stereo RCA adapter may be required, sold separately).
• Backup Camera: This radio replacement interface lets you retain your vehicle's backup camera by connecting to your aftermarket head unit's composite video camera input.
• R.A.P. (Retains Accessory Power): The ignition power source of most GM vehicles keeps the radio on until one of the doors is opened. This feature is called the R.A.P. (retained accessory power) and is retained with GMOS-MOST-01 interface.
• Warning Chimes & Turn Signals: The GMOS-MOST-01 radio replacement interface module also retains your vehicle's factory warning chimes and turn signals.

Outputs: The GMOS-MOST-01 radio replacement interface module also provides accessory power for your aftermarket stereo, as well as navigation outputs such as parking brake, reverse, mute, and vehicle speed sense.

• 12V/10A Accessory Output: In these GM vehicles, there is no 12-volt accessory wire in the factory harness, which requires the installer to run an accessory wire to the fuse box or underneath the steering column when installing an aftermarket radio. The GMOS-MOST-01 is designed to provide a 12-volt/10-amp switched accessory output (red wire) for your new aftermarket head unit.
• Navigation Outputs: The GMOS-MOST-01 also provides parking brake, reverse, mute, and vehicle speed sense (VSS) to make installing an aftermarket Navigation head unit simpler and less time consuming.

Optional Steering Wheel Control Interface: The GMOS-MOS T-01 requires the Axxess ASWC-1 steering wheel control interface adapter (120ASWC1, sold separately) if steering wheel audio controls are desired to be retained.
