Axxess GMOS-LAN-03 Wiring Interface Connect a new car stereo and retain OnStar®, RAP, and the safety warning chimes in select 2006-12 GM vehicles

Item # 120OSLAN03

The Axxess GMOS-LAN-03 wiring interface lets you replace the factory radio in select OnStar-equipped...

Find what Fits your vehicle

Remove

Checking fit...

The Axxess GMOS-LAN-03 wiring interface lets you replace the factory radio in select OnStar-equipped...

California customers:
Please click here for your Proposition 65 warning.

7 questions - 14 answers

Item # 120OSLAN03

About the Axxess GMOS-LAN-03 Wiring Interface

Ken Nail
The Axxess GMOS-LAN-03 wiring interface lets you replace the factory radio in select OnStar-equipped 2006-12 GM vehicles using the existing wiring and connectors. Even if you don't subscribe to OnStar, you'll need this interface to connect an aftermarket stereo.

The Axxess GMOS-LAN-03 wiring interface lets you replace the factory radio in select OnStar-equipped 2006-12 GM vehicles using the existing wiring and connectors. Even if you don't subscribe to OnStar, you'll need this interface to connect an aftermarket stereo.

Connect the GMOS-LAN-03 to your aftermarket radio, mount the module, and plug it into the existing factory plug. Get the great sound you want, and keep all of the important safety features intact.

You can adjust volume settings for OnStar as well as the safety chimes. In addition, this interface lets your new receiver work with any existing factory amplifiers. This interface gives you convenient plug-in connections for the Axxess steering wheel control adapter (not included) that works with most aftermarket stereos – that means less wiring work for you. This interface even includes a relay that enables you to keep the audible "click" for your vehicle's turn signal.

The Axxess GMOS-LAN-03 is compatible with select 2006-and up General Motors vehicles. If you haven't done so already, please enter your vehicle information or call a Sales Advisor at 1-888-955-6000 to find out if this item is compatible with your vehicle. Warranty: 1 year.

READ LESS

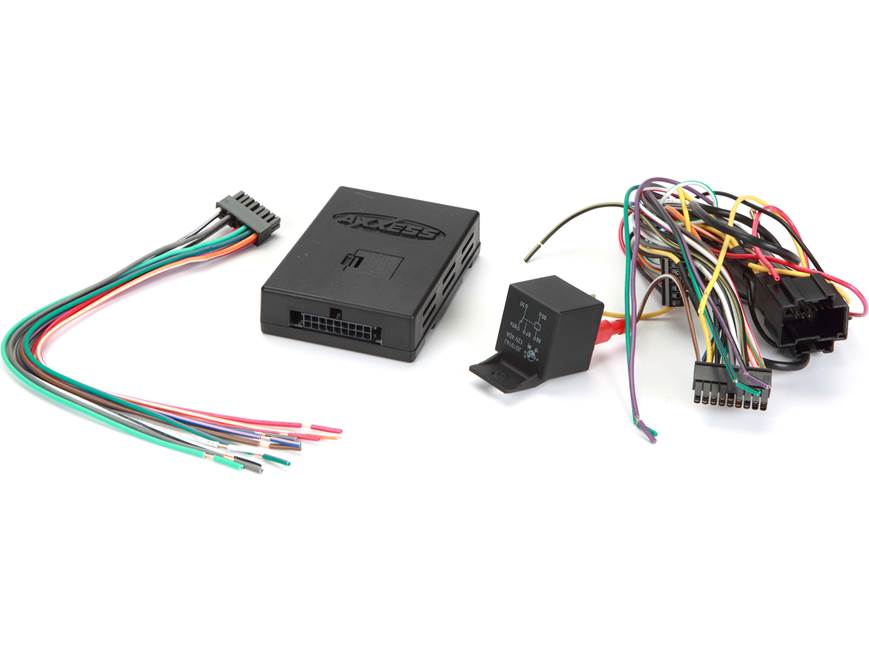

What's in the box:

  • GMOS-LAN-03 Module
  • 16-pin harness w/ stripped leads
  • 18-Pin to GM-plug harness
  • Installation Instructions
MFR #GMOS-LAN-03

Customer reviews for Axxess GMOS-LAN-03 Wiring Interface

Loading reviews...

Average review:

4.0 out of 5 stars
68 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Axxess GMOS-LAN-03 Wiring Interface

Stacey B.

Product Research

Features

Overview: The GMOS-LAN-03 Interface is designed to retain the ONSTAR emergency services function and retain the warning chimes that are normally lost when the factory radio is removed and replaced by an aftermarket head unit. It also provides a 12-volt accessory output for proper aftermarket head unit operation and supports your vehicle's factory R.A.P. (Retained Accessory Power). In addition, the GMOS-LAN-03 also provides a Mute, Parking Brake, VSS or Speed Sense, and a Reverse Output to make installation of an aftermarket navigational head unit simpler and less time consuming. The GMOS-LAN-03 supports the Axxess Steering Wheel Control Interface (sold separately).

Compatibility: The GMOS-LAN-03 is compatible with the following Chevrolet, Pontiac and Saturn vehicles.

Make Model Year
Chevy Cobalt 2007-2010
HHR 2006-2010
Malibu 2008-up
Pontiac G5 2007-2008
G6 2009
Solstice 2006-2009
Saturn Aura 2006-2009
Sky 2006-2009

Note: Not compatible with factory amplified sound systems. Please consult the Crutchfield Car Selector for your vehicle's compatibility.

Connections: The GMOS-LAN-03 consists of a single interface with a 16-pin connector on one of the module and and 18-pin connector on the other end; plus includes two harnesses. One harness includes a 16-pin plug that plugs into the 16-pin connection on the interface (beside potentionmeter) and its bare lead wires are hardwired into your new radio's harness. The other harness also includes a 18-pin plug that plugs into the other 18-pin connection of the interface and includes bare wires that hardwire into your new aftermarket radio's harness and GM factory plugs that plug into the factory side plugs behind the radio.

Chime Volume Adjustment: The GMOS-LAN-03 interface features potentiometer located on the 10 pin harness of the module, to adjust the chime volume of your vehicle. Rotate clockwise to make the chime louder and counterclockwise to make the chime softer.

Navigation Compatible: The GMOS-LAN-03 also provides Mute, Parking Brake, VSS or Speed Sense, and a Reverse Output to make installing an aftermarket Navigation radio simpler and less time consuming.

Retained Accessory Power (R.A.P.): The ignition power source of most GM vehicles keeps the radio on until one of the doors is opened. This feature is called the R.A.P. (retained accessory power). The GMOS-LAN-03 is designed to retain this feature.

OEM Steering Wheel Control Compatible (optional): The GMOS-LAN-03 features a right-angle 3.5mm connector that lets you keep your vehicle's OEM steering wheel controls via the optional Axxess Steering Wheel Control Interface (120ASWC1, sold separately).

Note: Your vehicle must have factory steering wheel controls to retain access to the factory customization menu, once the factory radio is replaced with an aftermarket head unit.

Optional RSE Retention Harness: The Metra GMRSAV (120GMRSAV, sold separately) is an RSE retention harness designed to retain the rear seat entertainment system in these select GM vehicles. The GMRSAV provides an audio/video input to the factory overhead video screen from your new aftermarket radio, and provides the audio/video output from the rear seat control panel to the aftermarket head unit.



Loading accessories...

Customer Q&A

7 questions already asked

Q
I am having a problem finding a data interface that retains the OnStar chimes and dask information for a 2008 Chevy HHR. I don't have steering wheel controls. Can you please tell me which?
bill  Jan 06, 2023
1 answer
A
If you have the Pioneer premium audio package originally Bill, you can use the Axxess GMOS-LAN-04 wiring interface in the first link below to keep Onstar features. If you do not have the Pioneer premium audio package you will use the Axxess GMOS-LAN-03 in the second link below. Neither harness lists any info display retention, sadly. I hope this helps! https://www.crutchfield.com/p_120OSLAN04/Axxess-GMOS-LAN-04-Wiring-Interface.html https://www.crutchfield.com/p_120OSLAN03/Axxess-GMOS-LAN-03-Wiring-Interface.html
bo  Jan 06, 2023 (Staff)
Q
is my front driver side speaker cut out when I stuck my key in or when I start the car up then when I start the car it cuts out for a minute then goes back on ? is that what is supposed to do?
benjss_76  Jan 02, 2016
2 answers
A
Is it when the the bell goes off when you put the key in the ignition and start the car then yes that's normal
david  Jan 02, 2016
A
Mine does too 2011 HHR however it will do this whenever a chime goes off in the car.
shawn  Jan 02, 2016
Q
is there an adapter that does not have onstar support? i hate paying for more than I need. my 2011 hhr lt does not have onstar.
shrek  Aug 05, 2015
1 answer
A
For details on fit or installation please contact an Advisor by phone (1-800-324-9695) or online chat. They will be able to pull up your vehicle and give you the details on if this will fit and what you will need for an installation in your vehicle.
kristina  Aug 05, 2015 (Staff)
Q
Is this part mandatory for the radio itself to work? Or is it only necessary to regain the chimes?
jacobmyers  Jul 17, 2014
5 answers
A
It is mandatory for the radio itself to work their is no other adapter that will work with this radio besides those
garrett  Jul 21, 2014
A
It is not necessary for the radio to work. However if you do not use it you will loose some factory features like door chimes, turn signal on too long warning, and other audio warnings. I guess these systems are all integrated.
clement k  Jul 19, 2014
A
Just to regain the chime. In my car it only restored the seatbelt safety noise and other warning noises. I have no blinker noise.
terry m  Jul 19, 2014
A
The place that installed it for me said it's only necessary for the chimes and onstar.
clifton  Jul 19, 2014
A
Mine works fine without it. I do wish I had take. The time to install it for the chimes.
frank  Jul 19, 2014
Q
Is this pretty easy to install? Does it come with instructions?
cali  Jun 09, 2014
3 answers
A
yes it is very easy to install and the instructions are pretty straight forward
john  Jun 11, 2014
A
Yes my hubby installed in 20 mind tech support helped
anna  Jun 09, 2014
A
I had it installed at a custom car shop. The guy who did it said it was.
clifton  Jun 09, 2014
