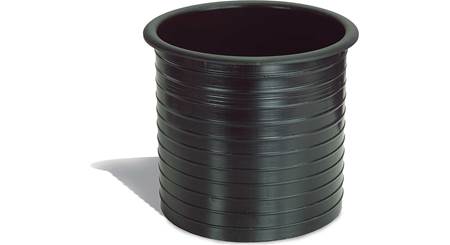

Install Bay PSP6 6" diameter port tube kit for subwoofer enclosures

Item # 120PSP6

Install Bay's port tube kits are made to simplify building your own ported subwoofer enclosure.

Install Bay's port tube kits are made to simplify building your own ported subwoofer enclosure.

Item # 120PSP6

Ships free today

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
In stock
$64.99

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

About the Install Bay PSP6

Bob Bihlmayer

Product highlights:

  • ABS plastic port tube kit for subwoofer box construction
  • includes tube, larger exterior flared end cap, smaller interior end cap, and connecting rings
  • dimensions:
    • tube diameter: 6"
    • tube length: 12"
    • exterior cap diameter: 9.25"
    • overall length with caps: 18"
  • warranty: 90 days
  • MFR # PSP6
  • Item # 120PSP6
  • California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

More details on the Install Bay PSP6

Mark G.
The Install Bay PSP6 replaces these items:

Product Research

Features

Precision Port: The Precision Port Tube Kit (PSP6) delivers greater sound pressure levels, plus cleaner sound with less distortion for your subwoofer enclosure. The Precision Port Tube Kit features high quality ABS construction will simple installation.

  • The Precision Port Kit consists of 5 parts - a single port tube, one exterior flared end, one interior flared end, and two connector rings. These connector rings attach the flared ends to the tube. Use an ABS adhesive or similar type glue (sold separately) to secure the port tube, connector rings, and flared ends together.
  • Once you've measured and cut the hole for the Precision Port in your enclosure, the Precision Port can be secured to the top of the enclosure with mounting screws (not included). The Precision Port (center of hole) can be placed as close as 4¾" from the inside wall of the enclosure. Although, it is recommended to keep it as far away from the inside wall as possible.

Note: Professional installation by a qualified installer is recommended. See Installation Instructions for further installation details.

Dimensions: Dimensions for the Precision Port Tube Kit (PSP6).

  • Overall: 9¼" (diameter) x 18" (length)
  • Port Tube: 6" (diameter) x 12" (length)
  • Cutout: 8⅜" (diameter)

Note: See Installation Instructions on how to calculate the port length needed for your subwoofer enclosure.

The Install Bay PSP6 replaces these items:


Adding...
  • Rolled front flange sits flush against the box's exterior
  • ABS plastic port can be trimmed to a specific length
  • 6" diameter
