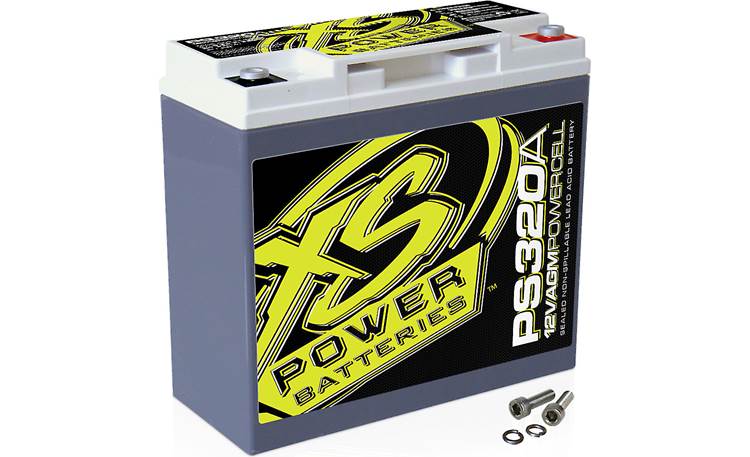

About the XS Power PS320A
Juice for powersports and marine applications
Juice for powersports and marine applications
Whether you've got a side-by-side, ATV, motorcycle, snowmobile, or jet ski, you can always appreciate a little more get-up-and-go, right? XS Power's PS Series powersports batteries deliver reliable energy to your toy, so you can count on that extra "oomph" when you need it on the road, trail, water, or snow.
Advanced AGM technology
PS Series batteries feature a sealed absorbed glass mat (AGM) design that incorporates special glass fiber mats that contain the acid electrolyte between the lead plates, rather than a standard flooded (liquid) design. These batteries actually store energy, so you don't have to add a capacitor to your system to get a quick burst. And the pure lead plates mean both more power and longer life than conventional batteries.
Designed to fit nearly anywhere without leaking
The rugged XS Power PS320A 12-volt battery provides up to 1,000 maximum amps and has a capacity of 20 amp-hours. This battery's compact size lets you get creative with your installation. Since there are no external vents on a PS Series battery, you can mount it nearly anywhere without fear of leaks — no more worries about corrosion or damage to chrome or paint. XS Power guarantees their batteries will not leak, even if damaged. These batteries also resist extreme vibrations so they'll perform on choppy waters and rough trails without skipping a beat.
Note: PS Series batteries do not have reinforced casings and are not recommended for automobiles.
Important Note: You must charge this battery before installing it. We recommend XS Power's HF IntelliCharger (sold separately) to charge this battery properly. Improper charging can permanently damage the battery, and void your warranty.
Product highlights:
- deep cycle 12-volt battery for powersports and marine applications
- M6 terminal hardware included
- sealed absorbed glass mat (AGM) design
- maximum output: 1,000 amps
- reserve capacity: 28 minutes
- discharge capacity: 28 amp-hours
- 7"W x 6-1/2"H x 3"D (measure for fit)
- weight: 15.42 lbs.
- warranty: 2 years
- MFR # PS320A
What's in the box:
XS Power PS320A owner's manual
- PS320A Battery
- 2 M6 machine screws
- 2 Flat-washers
- 2 Lock-washers
- Instruction sheet
- Warranty card
Customer reviews for XS Power PS320A
Loading...
Loading reviews...
Thanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the XS Power PS320A
Product Research
Features
Overview: The XS Power PS320A 12-volt AGM battery is a six cell, sealed-valve regulated, lead-acid battery designed for use in off-road UTVs, ATVs, and Cruiser motorcycles. XS Power batteries pack more power than standard batteries, making them perfect for vehicles with added stereos, amps, lights, winches, etc.
Terminals Needed: This PS-series battery does not come with battery terminals, so you will need to purchase the proper terminal adapters to fit the inner diameter of your power ring terminals before installing. Recommended terminal adapters include: Two 5/16" brass stud adapters (#589), Two 3/8" brass stud adapters (#590), Two 5/16" + Two 3/8" brass stud adapters (#588), or Two 3/8" zinc-plated steel stud adapters (#587). You could also choose the Short Brass Post Adapters (#580) or Long Brass Post Adapters (#586). The PS320A can be mounted using the 511 stamped aluminum side mount box.
Absorbent Glass Mat (AGM): XS Power's AGM (Absorbent Glass Mat) batteries use a fibrous material to suspend the liquid electrolyte against the lead plates. Because the electrolyte is absorbed in the material, there is little chance of an acid leak, even in the event the case is ruptured. AGM batteries contain more lead compared to traditional "flooded" batteries, thus producing more power.
Charging the Battery: It is very important to properly charge an Absorbent Glass Mat (AGM) battery before using. Improper charging can permanently damage the battery, and will void the warranty. The XS Power HF IntelliCharger for AGM Batteries (sold separately) has a microprocessor that monitors the charging process to avoid overcharging, and is recommended for this battery.
Specifications:
- Maximum Output: 1000 amps
- Cranking Amps: 320 A
- Reserve Capacity: 28 minutes
- Discharge Capacity: 20 Ah (amp hours)
- Dimensions: Width - 7.0", Height - 6.50", Depth - 3.0"
- Weight: 15.42 lbs.
