Pioneer DEH-1100MP CD receiver

Features

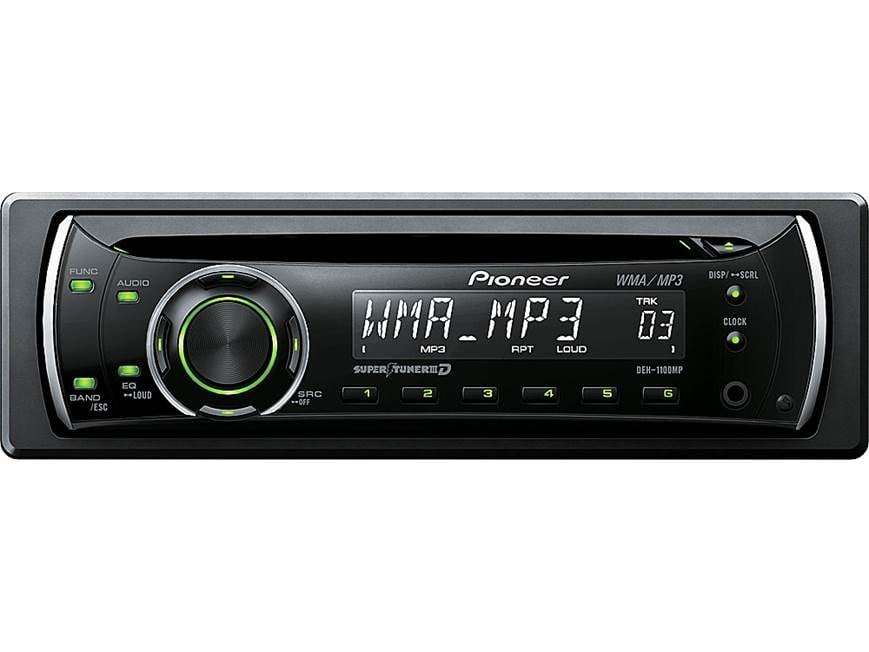

Overview: The Pioneer DEH-1100MP is an AM/FM/CD receiver which supports MP3/WMA playback and features a front panel 3.5mm auxiliary input for connecting portable devices such as a portable MP3 player.

CEA2006 Compliant: The power specifications for the DEH-1100MP are compliant with the CEA2006 Mobile Amplifier Power Testing and Measurement standards from the Consumer Electronics Association (CEA). These standards were developed as a way to equitably compare power specs from model to model and between manufacturers. The power output specs for the DEH-1100MP are as follows:

• CEA2006 Specs: 14 watts RMS x 4 channels (at 4 ohms, 20Hz-20kHz, 1% THD-N)
• Continuous Power Output: 22 watts RMS x 4 channels (at 4 ohms, 50Hz-15kHz, 5% THD)
• Maximum Power Output: 50 watts x 4 channels

MOSFET Amplifier: The DEH-1100MP is equipped with a MOSFET amplifier. Compared to conventional power supplies, the MOSFET amplification circuit is smaller and more efficient, and it delivers increased power with less distortion and absolutely zero on/off switching noise. More power means louder and cleaner music at higher volumes because you're not pushing the limits of the amplification circuit.

Supertuner IIID AM/FM Tuner: The Supertuner IIID features Feed Forward Control, which avoids multi-path interference. This pre-detection of interference enables quick filter control and results in less distortion. In addition, the Supertuner IIID creates enhanced stereo during multi-path interference, unlike conventional tuners that collapse to mono. Digital processing reduces distortion, and improves Signal-to-Noise Ratio and stereo separation. Advanced analog technology improves signal processing sensitivity.

BSM (Best Stations Memory):The BSM (Best Stations Memory) function lets you automatically store the six strongest stations under preset buttons 1-6 of the currently tuned band. The tuner has 3 FM banks and 1 AM bank. You can store 6 presets for each bank giving you a total of 18 FM presets and 6 AM presets.

Local Tuning: Local seek tuning lets you tune in only those radio stations with sufficiently strong signals for good reception. There are 4 level of sensitivity for FM and two levels for AM. The higher settings allow reception of only the strongest stations, while lower settings let you receive progressively weaker stations.

MP3/WMA/WAV Playback: This unit can play MP3, WMA and WAV files recorded on CD-ROM, CD-R, and CD-RW discs in ISO9660 Level 1/Level 2, Joliet, and Romeo formats. MP3 files with a bit rate from 8-320 kbps, WMA files with a constant bit rate from 48-320 kbps, and WMA files with a variable bit rate from 48-384 kbps are supported. The unit is compatible with ID3 Tags and will display artist, folder, file, and album name, plus comments. Up to 8 directories, 99 folders and 999 files per disc are recognized by this unit.

Rough Search: During MP3/WMA/WAV playback, you can switch between Fast Forward/Reverse method of searching to Rough search. During Rough search, you can skip every 10 tracks of the current disc or folder. This can speed up your search when you have discs or folders loaded with hundreds of files.

Compression/BMX: The Compression and BMX digital enhancement functions let you adjust the sound quality of compressed audio file playback. You can set up to two levels of COMP and BMX, or turn each function off.

EEQ (Easy EQ): The DEH-1100MP is equipped with a 3-band EQ with 6 preset EQ settings: Powerful, Dynamic, Vocal, Natural, Custom, and EQ Flat. The bands can be adjusted as follows:

• Bass: +/- 6dB at 100 Hz
• Mid:+/- 6dB at 1 kHz
• Treble:+/- 6dB at 10 kHz

Loudness: The Loudness feature compensates for deficiencies in the low and high sound ranges at low volume. You can set the Loudness feature to High, Low, or Off.

Source Level Adjustment (SLA):This function lets you adjust the volume level of each source to prevent radical changes in volume when switching between sources. Settings are based on the volume level of the FM tuner, which remains unchanged. Each source can be independently adjusted from -4dB to +4dB.

Auxiliary Input:The DEH-1100MP is equipped with a front panel 3.5mm stereo minijack auxiliary input for connecting external components, such as a portable MP3 player, DVD, or VCR. AUX must be turned on in the setup menu in order to be selected as a source.

2.2-Volt Preamp Output: The Pioneer DEH-1100MP features one pair of 2.2 volt preamp outputs (left/right) fixed to its rear chassis.

LED Display: The DEH-1100MP features a black background with a one-line, 8-character white Dot-Matrix OEL display.

Display Illumination/Clock Display: When the Clock Display has been turned on, pressing and holding the Source button turns off audio output, but the clock display remains on. When the Clock Display has been turned off, pressing and holding the source button turns the unit off completely. Even if you have turned the radio completely off you can view the clock display be pressing the clock button. The clock will then remain On until you turn it back Off. When the unit is On you can select between the clock display or the audio track/tuner display.

Detachable Face Security: This unit features Detachable Face Security. A face-fixing screw is supplied for making the face non-detachable, if desired.

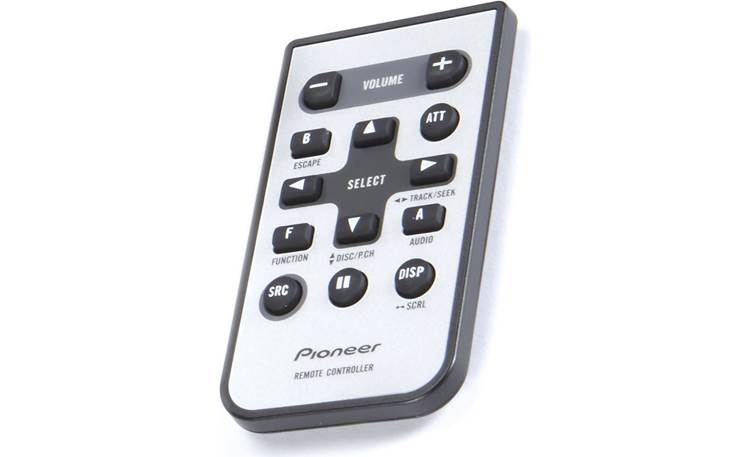

Remote Control: The DEH-1100MP comes with a wireless remote control (CXC5719). The remote allows you to control the volume, switch between sources, pause the CD, change the display, and adjust the audio. The attenuator button allows you to quickly lower the volume by about 90%, a function that cannot be performed from the front panel.
