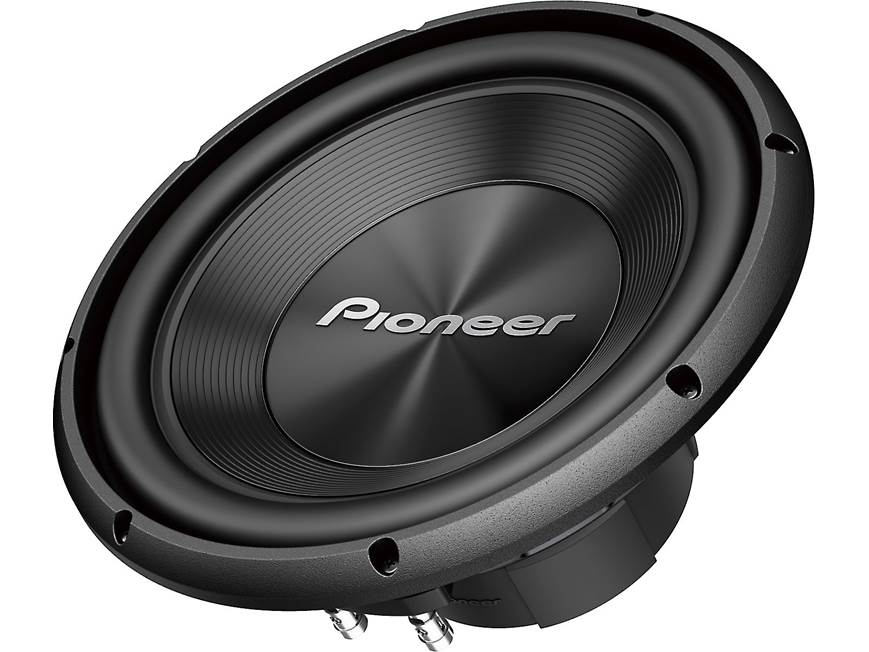

Pioneer TS-A120D4 A-Series 12" subwoofer with dual 4-ohm voice coils

Item # 130TSA120D

I don't think it's any exaggeration to say that a good sub will make your car's sound system come alive, and...

I don't think it's any exaggeration to say that a good sub will make your car's sound system come alive, and...

8 questions - 9 answers

Item # 130TSA120D

Low stock
$119.99 each

About the Pioneer TS-A120D4

Bob Bihlmayer

Bring your tunes alive

I don't think it's any exaggeration to say that a good sub will make your car's sound system come alive, and Pioneer made their A-Series subs to give you the deep low-frequency punch that you want. Their TS-A120D4 12" subwoofer handles up to 500 watts RMS while pumping out loud, clean bass. This sub features an injection-molded polypropylene cone that's impregnated with glass fibers and mica for exceptional precision and strength. A butyl rubber surround supports the woofer during cone excursion so you'll get accurate, hard-hitting bass notes even when the music's turned up loud.

Bring your tunes alive

I don't think it's any exaggeration to say that a good sub will make your car's sound system come alive, and Pioneer made their A-Series subs to give you the deep low-frequency punch that you want. Their TS-A120D4 12" subwoofer handles up to 500 watts RMS while pumping out loud, clean bass. This sub features an injection-molded polypropylene cone that's impregnated with glass fibers and mica for exceptional precision and strength. A butyl rubber surround supports the woofer during cone excursion so you'll get accurate, hard-hitting bass notes even when the music's turned up loud.

Enhance your ride

This potent Pioneer sub will bring out all the punch and power in your music by filling in the lowest frequencies of the sound spectrum. Its dual 4-ohm voice coils give you more wiring options when setting up your system. Throw one or two of these subs in your daily ride, power them up with a nice amp, and you'll understand what the fuss is all about — whatever you listen to, great bass will make it sound much, much better.

Subwoofer Wiring Diagrams

To see sample wiring diagrams for all common subwoofer/amplifier combinations, check out this informative article.

READ LESS

Product highlights:

  • Featured in our article: Best 12" car subwoofers for 2024
  • 12" subwoofer with dual 4-ohm voice coils
  • injection-molded polypropylene/glass fiber/mica cone
  • butyl rubber surround
  • power handling: 500 watts RMS (250 watts per coil)
  • 1500 watts peak power handling
  • frequency response: 20-2300 Hz
  • sensitivity: 77 dB
  • mounting depth: 5-13/16"
  • grille not included
  • warranty: 1 year
  • MFR # TS-A120D4

What's in the box:

  • One 12" Subwoofer
  • Trim ring
  • Eight 1-1/8" Screws
  • Adhesive backed foam gasket
  • Manual (English/ French/ Spanish)
  • Warranty information

Customer reviews for Pioneer TS-A120D4

Loading reviews...

Average review:

5.0 out of 5 stars
8 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Pioneer TS-A120D4

Pat M.

Product Research

Features

Woofer Cone: Pioneer uses Glass Fiber and Mica reinforced injection molded polypropylene (IMPP) for the cone, making it more rigid than polypropylene alone.

Dual 4Ω Voice Coils: This woofer features two 4Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 2Ω load; when wired in series, the woofer presents an 8Ω load.

Terminals: The spring post terminals will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.

Sealed Box Volume: Pioneer recommends a sealed enclosure with an internal volume between 0.85 ft³ and 1.75 ft³, with an ideal volume of 1.25 ft³. Sealed enclosures provide the most control over the woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.

Ported Box Volume: The recommended ported box volume ranges from 1.25 ft³ to 2.0 ft³, with the ideal size being 1.5 ft³, using a single 3" diameter x 6½" long port. Ported (or vented) enclosures typically provide better overall efficiency than sealed, maximizing bass output for a given amplifier.

Measurements: When mounting the woofer without the trim ring, the dimensions change as follows:

  • Mounting Height: 0.53"
  • Flange Height: 0.168"
  • Frame Diameter: 12.235"

Loading accessories...

Customer Q&A

8 questions already asked

Q
How big of an Amp would I need to run 3 of these?
bryse  Feb 21, 2023
1 answer
A
Tripling up on the Pioneer TS-A120D4 12" subs is a great idea for impressive bass output, Brysen! Since the wiring can get complicated with DVC 4-ohm speakers, the first link below is a handy wiring diagram you will want to use that will show around 2.7-ohms at your mono amp terminals. With a total RMS of 1500-watts with the triple setup, we can use a powerful amp for maximum performance. For me, the ideal choice is the JL Audio HD series HD1200/1 in the second link below. This amp has a regulated output of 1200-watts RMS from 1.5-4 ohms. This means you will get that 1200-watts at your roughly 2.7-ohm load in your custom setup. The Kicker 46CXA1800.1T in the third link below is also a major contender, though potentially too powerful for the three Pioneer's so you would have to make sure you set your amp up properly to avoid damage. We have the speakers and amps in stock and ready to ship! https://images.crutchfieldonline.com/ca/learningcenter/car/subwoofer_wiring/3DVC_4-ohm_mono.jpg https://www.crutchfield.com/p_136HD1200/JL-Audio-HD-Series-HD1200-1.html https://www.crutchfield.com/p_20646CX18T/Kicker-46CXA1800-1T.html?tp=35834
bo  Feb 22, 2023 (Staff)
Q
whats a good amp for these i got three?
johnathen  Jan 23, 2023
1 answer
A
If you wanted to fully drive your subwoofers then the Kicker 46CXA1800.1T would be a good match which will be linked down below. If you have any specific questions about that amp or any others we have then please give us a call at 800.324.9695 and we will find the perfect set up for you. https://www.crutchfield.com/p_20646CX18T/Kicker-46CXA1800-1T.html?tp=35834
arielle  Jan 23, 2023 (Staff)
Q
I have a truck speaker box will this speaker fit in a shallow box?
anthony  Dec 25, 2021
2 answers
A
Replaced the MTX loaded sub with this one (huge improvement) and the MTX box is 14??? deep had room to spare.
richard marlin  Dec 25, 2021
A
Yes
dale  Dec 25, 2021
Q
Will this memphis srx500d.1 work on these subs If not can you give me some names of ones that go with my amp?
samantha  Sep 21, 2020
1 answer
A
Thanks for your question. For information on selecting the best amp for your subs I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.
kristina  Oct 05, 2020 (Staff)
Q
Will this memphis srx500d.1 work on these subs?
samantha  Sep 21, 2020
1 answer
A
It should work just fine. You just have to wire the dual voice coils in parallel to make the speaker a 2ohm load and you should be good to go.
keenen  Sep 21, 2020
Q
I have the A series 6x9 rear deck and 6.5 front doors what size amp would I need for connecting all 5 (1) 12" sub A series?
brandon  Sep 29, 2019
1 answer
A
Thanks for your question. For information on selecting the best amp I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.
kristina  Oct 15, 2019 (Staff)
Q
If I got 2 of these what amp would would be BEST??
michael  Sep 20, 2019
1 answer
A
Thanks for your question. For information on selecting the best amp for your subs I would recommend reaching out to an Advisor by phone (1-800-324-9695) or online chat. They will be able to help determine the differences between the amp models and help you make the best choice for your system.
kristina  Oct 09, 2019 (Staff)
