About the Pioneer TS-A1300C

Enjoy your tunes
Enjoy your tunes
Pioneer brings their "A game" with their A Series TS-A1300C 5-1/4" component speaker system. Bump up your sound quality with these serious performers and an outboard amp. With power handling up to 50 watts RMS, you'll really be able to crank your jams.
Accurate sound

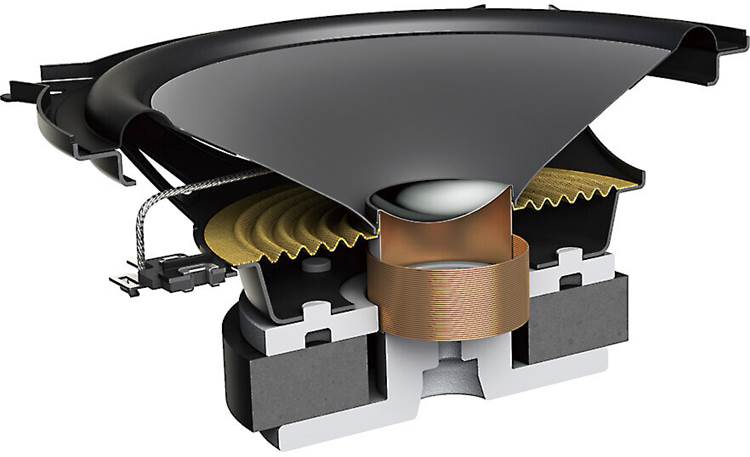

This component set delivers a satisfying punch, thanks to enhanced woofer cones made of reinforced mica for exceptional rigidity and responsiveness. Install the separate 3/4" tweeters in a good spot up high in your vehicle for better stereo imaging. Pioneer smartly houses the soft dome tweeters in wave guide enclosures that help your highs achieve the widest dispersion possible.
Product highlights:
- component speaker system includes 2 woofers and 2 tweeters
- 5-1/4" injection molded polypropylene composite woofer cone
- 3/4" soft-dome tweeter with inline crossover
- handles up to 50 watts RMS (300 watts peak power)
- frequency response: 42-38,000 Hz
- sensitivity: 87 dB
- woofer top-mount depth: 2-1/8"
- woofer grilles and tweeter mounting equipment included
- warranty: 1 year
- MFR # TS-A1300C
What's in the box:
Pioneer TS-A1300C owner's manual
- Two woofers
- Two tweeters (with attached 10" speaker leads terminated with quick-connects)
- 2 Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 11" input leg)
- 2 Tweeter angled surface mount housings
- 2 Tweeter flush mount rings
- 2 Tweeter factory mount brackets
- Eight 3/4" Screws
- Six 1/2" Screws
- 2 Speed clips
- 2 Adhesive backed foam discs
- Warranty information
- Template and specs on box
Reviews (13)
Customer reviews for Pioneer TS-A1300C
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Pioneer TS-A1300C

Features & specs
General | ||
---|---|---|
Speaker Size | 5 1/4 | |
Design | 2-way | |
Tweeter Design | 20mm Dome | |
Impedance (Ohms) | 4 | |
Tweeter Composition | Polyimide | |
Woofer Composition | Carbon and Mica reinforced IMP | |
Woofer Surround | Rubber | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 87 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 42 - 38k Hz | |
Minimum RMS Wattage | --- | |
Maximum RMS Wattage | 50 | |
Peak Power Handling (Watts) | 300 | |
Top-mount Depth (Inches) | 2 1/8 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 4 9/16 | |
Mounting Height (Inches) | 0.207 |
Product Research
Features
Woofer Surrounds: For durability and a smooth response, each woofer uses an elastic polymer (synthetic rubber) surround.
Tweeter Mounting: The system includes flush mount rings and angled surface mount housings for the tweeters. The surface mount housing positions the tweeters at approximately a 45° angle. Bendable brackets are also included for mounting the tweeters in factory locations. Once installed the tweeters do not swivel.
Tweeter Mounting Dimensions:
Angled Surface Mount | Flush Mount | |
Mounting Height | 1.47" | 0.233" |
Mounting Depth | screw depth | 0.552" |
Frame Diameter | N/A | 1.955" |
Frame Depth | 1.785" | N/A |
Frame Width | 1.5" | N/A |
Cutout Diameter | N/A | 1.641" |
Crossovers: The high pass crossovers are integrated into the included speaker wire. The slope is 6 dB/octave and the crossover point is 3.2 kHz. Each length of speaker wire connects to both a woofer and tweeter. Quick slides connect to the woofer, a 40" output leg with integrated crossover (approximately ½" diameter x 1¾" long) connects to the terminals attached to the tweeter, and an 11" input leg connects to the source.
