About the Pioneer TS-A1301C

Product highlights:

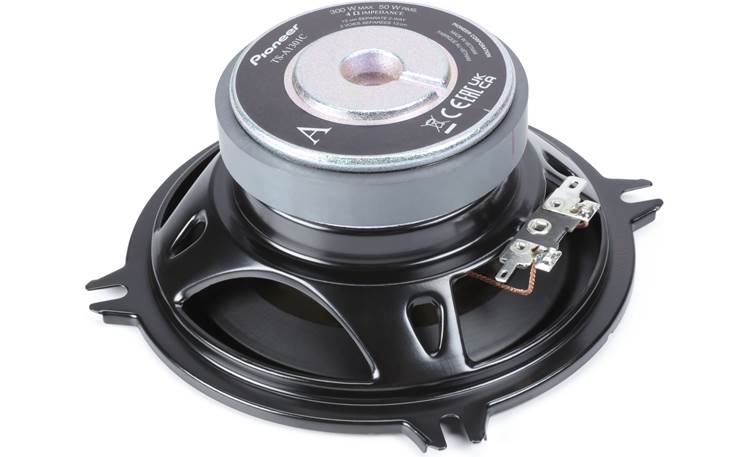

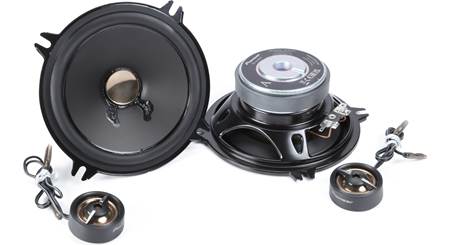

- component speaker system includes 2 woofers and 2 tweeters
- 5-1/4" carbon/mica reinforced injection molded polypropylene woofer cone with elastic polymer surround
- separate 13/16" polyethermide tweeter
- inline crossover network (6 dB/octave @ 3350 Hz)
- flush- and angle-mount tweeter mounting hardware included
Specs:
- handles up to 50 watts RMS (300 watts peak power)
- frequency response: 42-58,000 Hz
- sensitivity: 89 dB
- impedance: 4 ohms
- woofer top-mount depth: 2-1/8"
- warranty: 1 year
- MFR # TS-A1301C
- Item # 130TSA1301
What's in the box:
Pioneer TS-A1301C owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two woofers

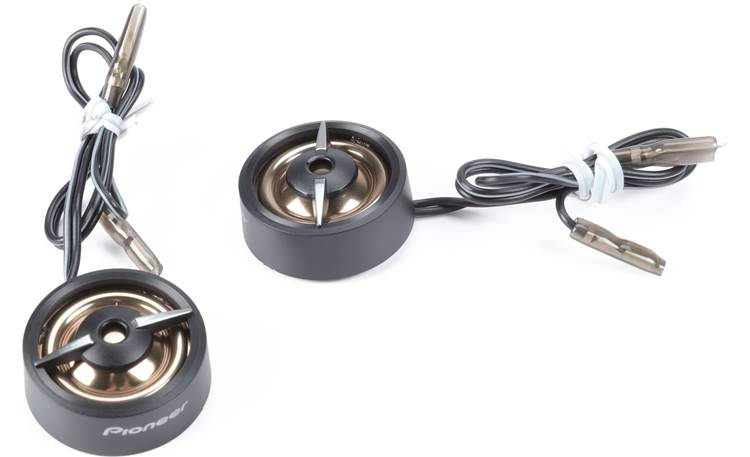

- Two tweeters (with attached 10" speaker leads terminated with quick-connects)
- 2 Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 10" input leg)
- 2 Tweeter angled surface mount housings
- 2 Tweeter flush mount rings
- 2 Tweeter factory mount brackets
- Eight 3/4" Screws
- Six 1/2" Screws
- 2 Adhesive backed foam discs
- Warranty information
- Templates and specs on box
Featured video:
More details on the Pioneer TS-A1301C

Features & specs
General | ||
---|---|---|
Speaker Size | 5 1/4 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Carbon and Mica reinforced IMPP | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | Dome | |
Tweeter Material | Polyetherimide | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 89 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 42 - 58k Hz | |
Maximum RMS Wattage | 50 | |
Peak Power Handling (Watts) | 300 | |
Top-mount Depth (Inches) | 2 1/8 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 4 9/16 | |
Mounting Height (Inches) | 0.216 | |
Frame Width | 5.08 | |
Frame Length | 5.08 |
Product Research
Features

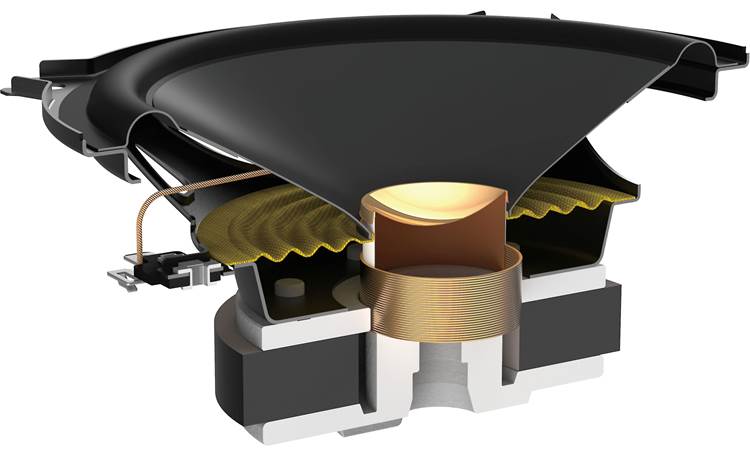

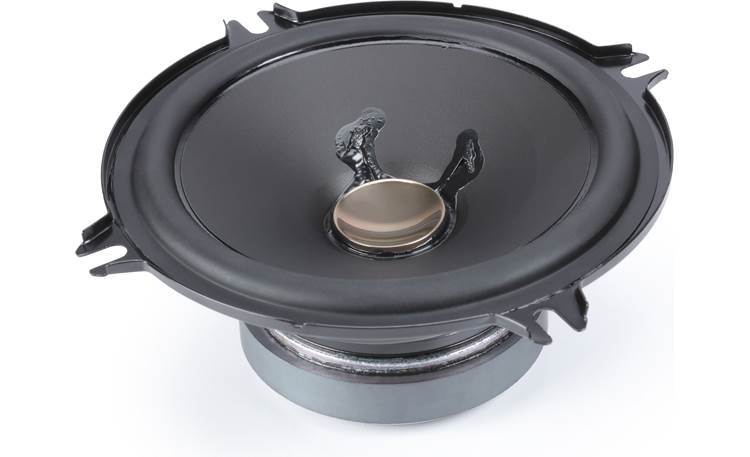

Woofers: Each woofer has a carbon and mica reinforced injection-molded polypropylene (IMPP) cone. This process of cone molding assures a uniform cone thickness to improve linearity and clarity. Additionally, the cones are lightweight and rigid to decrease distortion.

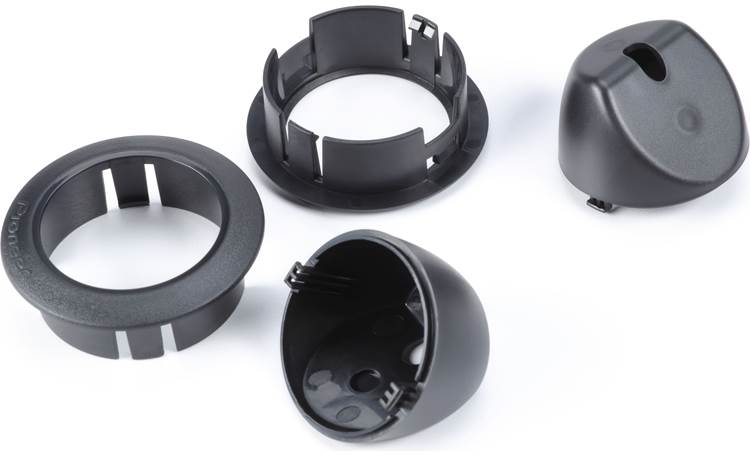

Tweeter Mounting: The system includes flush mount rings and angled surface mount housings for the tweeters. The surface mount housing positions the tweeters at approximately a 45° angle. Flexible brackets are also included for mounting the tweeters in factory locations. Once installed the tweeters do not swivel.
Tweeter Mounting Dimensions:
Angled Surface Mount | Flush Mount | |
---|---|---|
Mounting Height | 1.475" | 0.2" |
Mounting Depth | screw depth | 0.552" |
Frame Diameter | N/A | 1.952" |
Frame Depth | 1.8" | N/A |
Frame Width | 1.5" | N/A |
Cutout Diameter | N/A | 1.63" |
Crossovers: The high pass crossovers are integrated into the included speaker wire. The slope is 6 dB/octave and the crossover point is 3.35 kHz. Each length of speaker wire connects to both a woofer and tweeter. Quick slides connect to the woofer, a 40" output leg with integrated crossover (approximately ½" diameter x 1" long) connects to the terminals attached to the tweeter, and an 10" input leg connects to the source.
The Pioneer TS-A1301C replaces these items:
- 5-1/4" injection molded polypropylene composite woofer cone
- 3/4" soft-dome tweeter with inline crossover
- handles up to 50 watts RMS (300 watts peak power)
