About the Pioneer TS-A2500LB
Space-saving shallow enclosure
Space-saving shallow enclosure
Need hard-hitting bass from a small enclosure? Pioneer's TS-A2500LB enclosure fits in in a wide variety of car trunks and truck applications, and delivers powerful performance without taking up a lot of space. At only 5-7/8" deep, it'll work in most pickups.
Home for a 10" sub
The enclosure houses a rugged Pioneer 10" sub, which features an oversized, injected polypropylene cone with a rubber surround to punch out deep bass with less distortion. Its dual-spider design helps to stabilize the cone and support the linear movement needed to pump out big volume.
The rugged enclosure is built of 5/8" MDF for strength, and is covered in black carpet with an embroidered Pioneer logo. A steel mesh grille protects the speaker against all the dangers of life behind a seat.
Product highlights:
- sealed enclosure with one 10" subwoofer
- 2-ohm impedance
- 5/8" medium density fiberboard construction with black carpet covering and steel mesh grille
- power handling: 300 watts nominal (1200 watts peak power)
- dimensions: 20-7/8"W x 11-3/4"H x 5-7/8"D
- frequency response: 20-900 Hz
- sensitivity: 86 dB
- warranty: 1 year
- MFR # TS-A2500LB
What's in the box:
Pioneer TS-A2500LB owner's manual
- Pre-loaded 10" passive subwoofer enclosure
- 4 Threaded feet
- 2 Angle brackets
- 4 Adhesive feet cushions
- Eight 1" screws
- Installation instructions
- Warranty information
Reviews (3)
Customer reviews for Pioneer TS-A2500LB
Loading...
Loading reviews...
Average review:
4.5 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the Pioneer TS-A2500LB
Features & specs
| General | ||
|---|---|---|
| Woofer Size (inches) | 10 | |
| Speakers Per Box | 1 | |
| Woofer Material | IMPP | |
| Enclosure Type | Sealed | |
| Color | Black | |
| Pieces in System | 1 | |
| Width (inches) | 20-7/8 | |
| Height (inches) | 11-7/8 | |
| Depth (inches) | 5-7/8 | |
| Connector Type | Binding posts | |
| Frequency Response | 20-900 Hz | |
| Power Range (Watts RMS) | 300 | |
| Maximum Wattage | 1200 | |
| Sensitivity | 86 dB | |
| Impedance | 2 ohms | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
Product Research
Features
Overview: The Pioneer TS-A2500LB is a pre-loaded, sealed subwoofer enclosure. It's passive design offers maximum flexibility in amplifier matching and in the wide variety of vehicles it can be used in.
A-Series: The TS-A2500LB is part of Pioneer's A-series speakers, purposely designed to match A-series full-range speakers, providing smooth and seamless sound characteristics with dynamic, high-impact bass.
Driver: The TS-A2500LB features a single 10" driver made with a glass fiber and mica interlaced, injection molded polypropylene (IMPP) cone with butyl rubber surround, mounted in a matched ported enclosure. Careful engineering of the entire motor structure and suspension system gives balanced and linear motion of the cone, both forward and reverse directions, maintaining a high level of linearity, even during high output/high excursion transients.
Enclosure: The TS-A2500LB features a compact, space-saving enclosure that's designed for optimal use of space. The carpeted enclosure is shallow enough for mounting in a variety of pickup trucks including standard- and extended-cab models. Its unique design and included mounting hardware allow it to be mounted upright or laying flat, facing up or down.
Mounting: Two metal angle-brackets and eight 1" screws are provided for mounting the enclosure to a trunk or rear compartment floor in an upright fashion. Four screw-on feet also allow the enclosure to be mounted flat under a seat, either facing up or in a down-firing configuration.
Terminals: Wire connection to the subwoofer enclosure is done through a pair of binding posts that can accommodate bare wire (up to 12AWG), banana plugs, or pin connectors.
Specifications:
- Driver Size: 10"
- Power Handling: 300 watts RMS / 1200 watts peak
- Frequency Range: 20Hz - 900Hz
- Sensitivity: 86dB
- Nominal Impedance: 2Ω
The Pioneer TS-A2500LB replaces these items

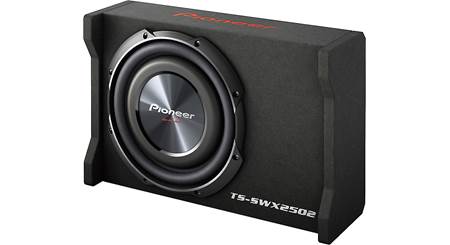

Pioneer TS-SWX2502
- sealed enclosure with one 10" TS-SW2502S4 subwoofer
- 5/8" medium density fiberboard construction covered with black carpet
- power handling: 300 watts nominal (1200 watts peak power)
