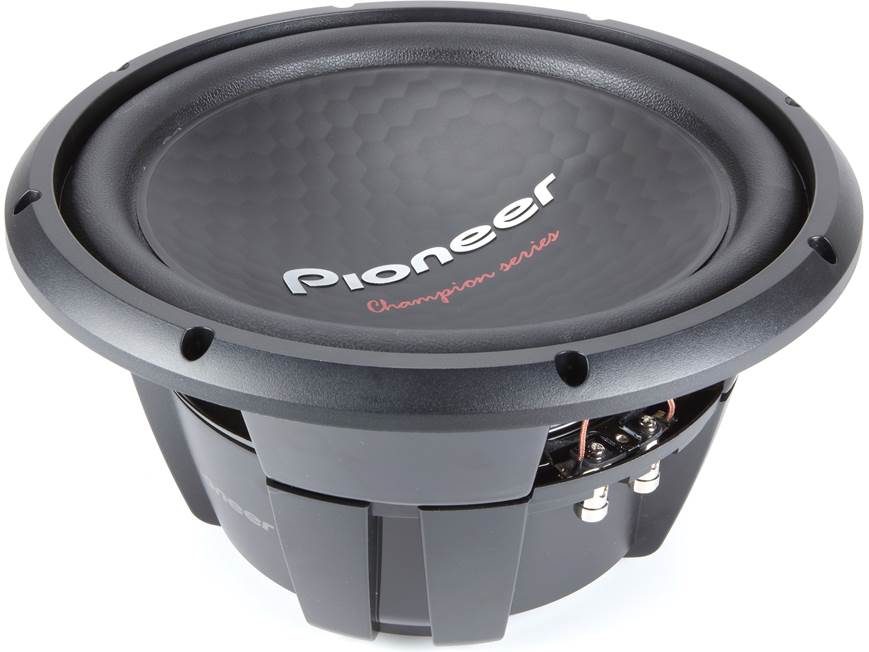

About the Pioneer TS-A301D4
Product highlights:
- 12" subwoofer with dual 4-ohm voice coils
- injection-molded polypropylene/glass fiber/mica cone
- elastic polymer/reinforced fiber surround
- power handling: 500 watts RMS (250 watts per coil)
- 1600 watts peak power handling
- frequency response: 20-1600 Hz
- sensitivity: 92 dB
- mounting depth: 6.125"
- sealed box volume: 1.25 cubic feet
- ported box volume: 1.5 cubic feet
- grille not included
- warranty: 1 year
- MFR # TS-A301D4
- Item # 130TSA301D
What's in the box:
Pioneer TS-A301D4 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 12" Dual 4-ohm voice coil woofer
- Eight 1-1/8" Screws
- Adhesive backed foam gasket
- Manual (English/ French/ Spanish/ Portuguese)
- Warranty information
More details on the Pioneer TS-A301D4
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 12-inch | |
| Impedance (Ohms) | 2, 8 | |
| Cone Material | IMPP Composite | |
| Surround Material | Fiber/Elastic Polymer | |
| Basket Material | Steel | |
| Grille | None included | |
| Free-Air | Yes | |
| Dual Voice Coil | Yes | |
| Sensitivity |
92 dB at 1 watt | |
| Frequency Response | 20 - 1600 Hz | |
| Max RMS Power Handling | 500 | |
| Peak Power Handling (Watts) | 1600 | |
| Top Mount Depth (inches) | 6 1/4 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 11 1/8 | |
| Frame Width | 12.834 | |
| Frame Length | 12.834 | |
| Vas (liters) | 37.7 | |
| Fs (Hz) | 37 | |
| Qts | 0.73 | |
| Xmax (millimeters) | 11.3 | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 1.25 | |
| Minimum Sealed Box Volume (cubic feet) | 0.85 | |
| Maximum Sealed Box Volume (cubic feet) | 1.75 | |
| Ideal Ported Box Volume (cubic feet) | 1.5 | |
| Minimum Ported Box Volume (cubic feet) | 1.25 | |
| Maximum Ported Box Volume (cubic feet) | 2 | |
| Port diameter (inches) | 3 | |
| Port length (inches) | 6.5 | |
Product Research
Features
Woofer Cone: Pioneer uses an IMPP (Injection Molded Polypropylene) woofer cone. This process of cone molding assures a uniform cone thickness for superior linearity and clarity.
Dual 4Ω Voice Coils: This woofer features two 4Ω voice coils that offer wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 2Ω load. When the voice coils are wired in series, the woofer presents an 8Ω load.
Terminals: The spring post terminals will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.
Sealed Box Volume: Pioneer recommends a sealed enclosure with an internal volume between 0.85 ft³ and 1.75 ft³, with an ideal volume of 1.25 ft³. Sealed enclosures provide the most control over the woofer, will handle a lot of power, and provide accurate sonic reproduction, making them suitable to all types of music.
Ported Box Volume: The recommended ported box volume ranges from 1.25 ft³ to 2.0 ft³, with the ideal size being 1.5 ft³, using a single 3" diameter x 6½" long port. Ported (or vented) enclosures typically provide better overall efficiency than sealed, maximizing bass output for a given amplifier.
Free-Air: The woofer can also be mounted in free air to a baffle board (infinite baffle, no enclosure). When mounted in free air, the power handling is reduced by 75% (to 125 watts).
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
The sound is clean and powerful! I paired this with a Pioneer Champion Series monoblock amp wired at 2 ohms and it sounds wonderful. I needed more space in my trunk so I went with this to replace 2 lower-powered subs. I'm very pleased with my purchase.
Ryan from Cypress, TX
