Pioneer TS-A653CH A-Series MAX 6-1/2" component speaker system

Name: Pioneer TS-A653CH
Brand: Pioneer
SKU: 130TSA653C
Price: 149.99 USD
Availability: InStock
Rating: 4.5 (48 reviews)

Item # 130TSA653C

Pioneer's A-Series speakers have been consistent favorites at Crutchfield for years.

Does it Fit your car?

Find what Fits your vehicle

Remove

Checking fit...

Front

1/10

Back

2/10

Only at Crutchfield

3/10

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

Crutchfield: Pioneer's A-Series car speakers

Pioneer's A-Series speakers have been consistent favorites at Crutchfield for years.

Item # 130TSA653C

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

Deeply discounted installation gear

$149.99

Add to cart

Other options

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Ken Nail

Built on a solid foundation

Pioneer's A-Series speakers have been consistent favorites at Crutchfield for years. With the new A-Series MAX component speaker systems, we see Pioneer's continued commitment to improved performance without jacking prices through the roof. These Pioneer TS-A653CH 6-1/2" component speakers wear the A-Series MAX mantle with pride to help your car stereo sound better, especially when paired with an external amplifier. You'll get audio reproduction that's loud and clear, but without bothersome distortion that can harsh your mellow. And thanks to Pioneer's design expertise, you can expect reliably consistent output for the life of the speakers.

Ready for the road

Pioneer builds their A-Series MAX speakers with advanced materials and construction so your ears feel taken care of. The woofer cone sports an injection-molded polypropylene design reinforced with aramid fiber and mica, for smooth handling and hard-hitting low-end output. The speaker's deeper basket design allows Pioneer's exclusive suspension system to keep the cone in control during your music's peak moments, so those kick drums won't sound off-kilter. And Pioneer didn't forget about those higher frequencies — the separate dome tweeter comes with flush- and angle-mount hardware for optimal placement in your car.

Product highlights:

Featured in our article: Best component car speakers for 2025
component speaker system includes 2 woofers and 2 tweeters

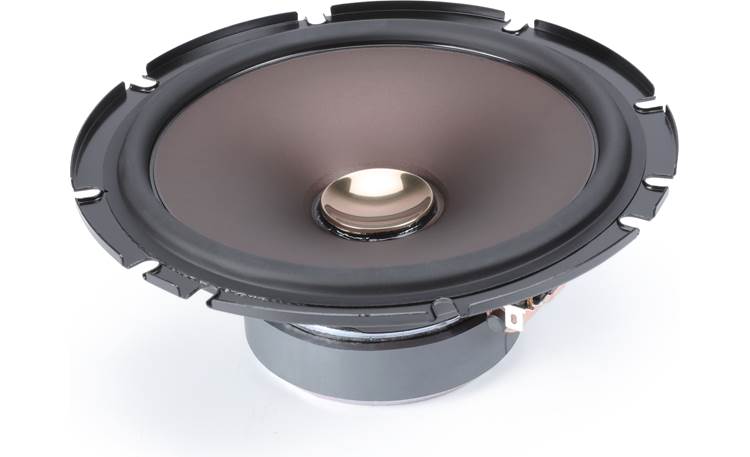

6-1/2" injection molded polypropylene and aramid fiber/mica-reinforced composite woofer cone with elastic polymer surround

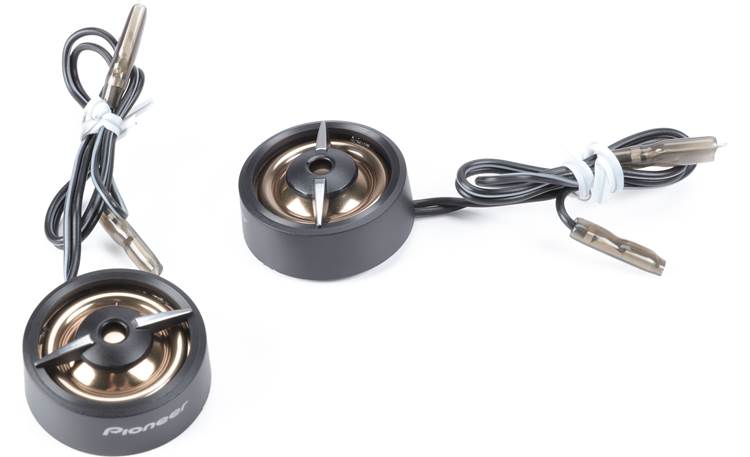

separate 13/16" polyethermide tweeter
inline crossover network (6 dB @ 2800 Hz)
flush- and angle-mount tweeter mounting hardware included

Specs:

handles up to 85 watts RMS (370 watts peak power)
frequency response: 33-58,000 Hz
sensitivity: 91 dB
impedance: 4 ohms
woofer top-mount depth: 2-3/8"
warranty: 1 year
MFR # TS-A653CH
Item # 130TSA653C

What's in the box:

Pioneer TS-A653CH owner's manual

Two woofers
Two tweeters (with attached 10" speaker leads terminated with quick-connects)

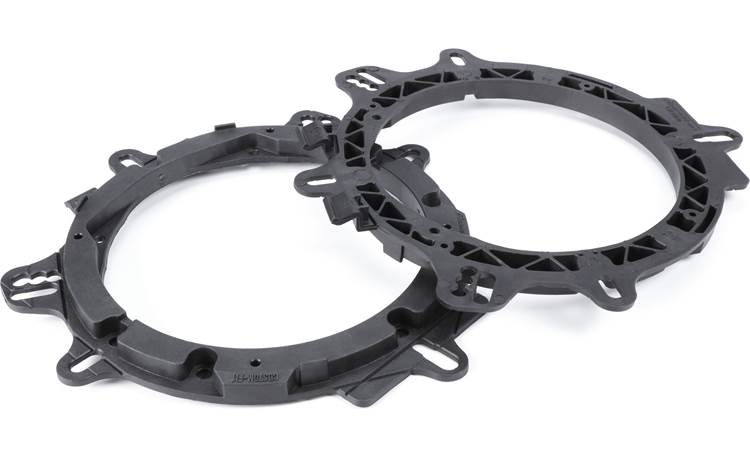

2 Multi-application woofer mounting brackets

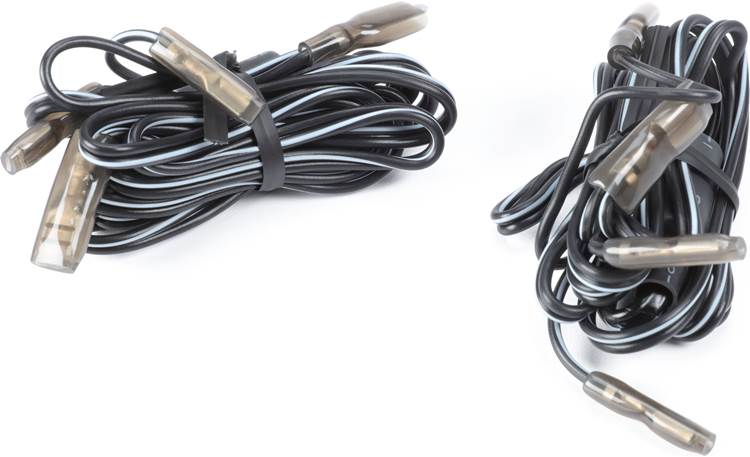

2 Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 10" input leg)
2 Tweeter angled surface mount housings
2 Tweeter flush mount rings
2 Tweeter factory mount brackets
Eight 3/4" Screws
Six 1/2" Screws
Eight 3/8" Screws
8 Flat washers
2 Adhesive backed foam discs
Warranty information
Templates and specs on box

Featured video:

Researched by Crutchfield's Pat M.

Features & specs

General
Speaker Size	6 1/2
Driver Design	2-way
Woofer Design	Cone
Woofer Material	Aramid Fiber and Mica reinforced IMPP
Woofer Surround	Rubber
Midrange Design	---
Midrange Material	---
Tweeter Design	Dome
Tweeter Material	Polyetherimide
Super Tweeter Design	---
Super Tweeter Material	---
Impedance (Ohms)	4
Weather-resistant	No
Grilles Included	No
Parts Warranty	1 Year
Labor Warranty	1 Year
Specifications
Sensitivity (1W at 1 meter)	91
Sensitivity at 2.83 volts	N/A
Frequency Response	33 - 58k Hz
Maximum RMS Wattage	85
Peak Power Handling (Watts)	370
Top-mount Depth (Inches)	2 3/8
Bottom-mount Depth (Inches)	N/A
Cutout Diameter or Length (inches)	5 1/2
Mounting Height (Inches)	0.214
Frame Width	6.48
Frame Length	6.48

Product Research

Features

Woofers: Each woofer has an aramid fiber and mica reinforced injection-molded polypropylene (IMPP) cone. This process of cone molding assures a uniform cone thickness to improve linearity and clarity. Additionally, the cones are lightweight and rigid to decrease distortion.

Size Classification Note: Some manufacturers, including Pioneer, call this size woofer a 6½". Because it requires a larger cutout than a standard 6½" speaker, Crutchfield has traditionally referred to this size speaker as a 6¾". Please enter your vehicle information to confirm fit.

Mounting Brackets: Pioneer includes a pair of mounting brackets to install the woofers in vehicle-specific applications. Again, enter your vehicle information to confirm fit.

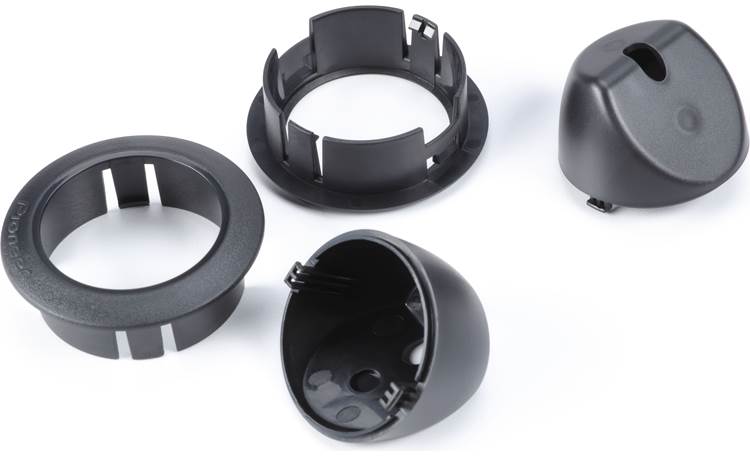

Tweeter Mounting: The system includes flush mount rings and angled surface mount housings for the tweeters. The surface mount housing positions the tweeters at approximately a 45° angle. Flexible brackets are also included for mounting the tweeters in factory locations. Once installed the tweeters do not swivel.

Tweeter Mounting Dimensions:

	Angled Surface Mount	Flush Mount
Mounting Height	1.475"	0.2"
Mounting Depth	screw depth	0.552"
Frame Diameter	N/A	1.952"
Frame Depth	1.8"	N/A
Frame Width	1.5"	N/A
Cutout Diameter	N/A	1.63"

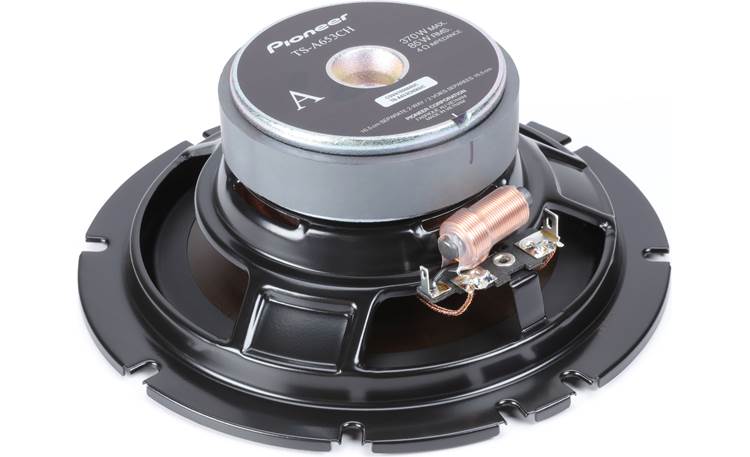

Crossovers: The high pass crossovers are integrated into the included speaker wire and the low pass crossovers are integrated into the woofer baskets. The slope of both is 6 dB/octave and the crossover point is 2.8 kHz. Each length of speaker wire connects to both a woofer and tweeter. Quick slides connect to the woofer, a 40" output leg with integrated crossover (approximately ½" diameter x 1" long) connects to the terminals attached to the tweeter, and an 10" input leg connects to the source.

Loading accessories...

6 questions already asked

Why doesnt the tweeters come with a crossover? How do you wire the tweeters

jerome Feb 28, 2025

1 answer

Hey Jerome, there is a crossover in this set. It will be an in-line crossover that is designed to be installed between the car wiring and the speaker itself and will act as a sort of bass blocker to ensure we do not feed any unnecessary low frequencies to those tweeters.

red Feb 28, 2025 (Staff)

can i use chanels 1 and 2 for tweaters and 3 and 4 for woofers, to prevent sound level reduction or will sound reduction not occour using only two channels ?

samuel Sep 15, 2024

1 answer

Hey Samuel, sound reduction will not occur when running these in a 2ch situation. If you tried to run them in a 4ch situation, you can also do this since the crossover is in-line with the tweeter to block those lower frequencies though I prefer to have a DSP in those lines to set our crossover points at each speaker.

red Sep 15, 2024 (Staff)

I had bought these speakers on Friday April 26 for $149.99 and they just went down in price can I get my money back on this????

jake Apr 29, 2024

1 answer

Greetings Jake. Absolutely. Please contact one of our customer service representatives at 800-955-9091. They will get you set up for the refund, but call before they go back up in price, please. I do not see an end date listed at the moment. Thank you for your business.

thomas Apr 29, 2024 (Staff)

Do I need an amp for these speakers?

jake Apr 26, 2024

1 answer

Greetings Jake. Thank you for your question. The Pioneer speakers will run from radio/stereo power, they will just not sound as good with low power going to them. An amplifier would be highly recommended.

thomas Apr 27, 2024 (Staff)

I have a 4 channel amp. Can I run these with two channels without buying anything else, And then use my 2 extra channels for rear coaxial speakers? Or will I need an external crossover?

trace Dec 13, 2023

1 answer

The Pioneer TS-A653CH speakers have included crossovers and are designed to be driven with 2-channels of power, Trace. You can connect these to the channels 1-2 on your amp and use your channels 3-4 for your rear coaxial speakers, no problem!

bo Dec 13, 2023 (Staff)

What settings should I put my head unit at to have the best setting meant for these speakers? My head unit is a pioneer MVH-S622BS

nicholas Nov 29, 2023

1 answer

EQ and crossover settings are a personal preference choice, Nicholas. The Pioneer TS-A653CH speakers have a frequency response of 33-58,000 Hz, for best bass no hi-pass crossover is required.

bo Nov 29, 2023 (Staff)
