About the Pioneer TS-A6901C
Product highlights:
- component speaker system includes 2 woofers and 2 tweeters
- 6" x 9" carbon/mica reinforced injection molded polypropylene woofer cone with elastic polymer surround

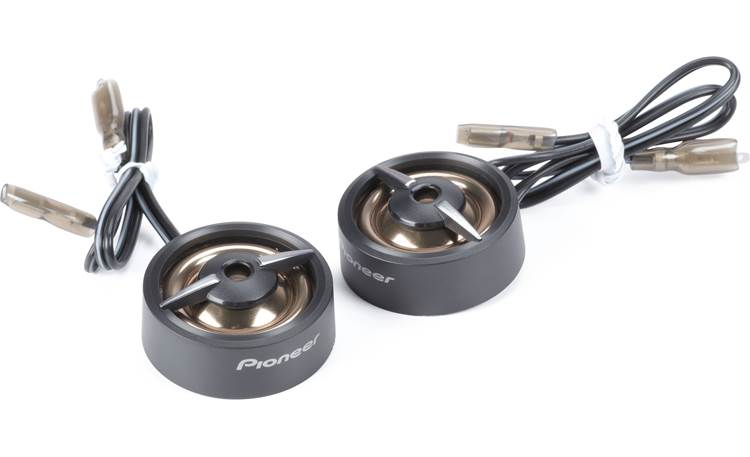

- separate 13/16" polyethermide tweeter
- inline crossover network (6 dB/octave at 3800 Hz)
- flush-and angle-mount tweeter mounting hardware included
Specs:
- handles up to 100 watts RMS (450 watts peak power)
- frequency response: 28-58,000 Hz
- sensitivity: 92 dB at 2.83V
- impedance: 4 ohms
- woofer top-mount depth: 2.85"
- warranty: 1 year
- MFR # TS-A6901C
- Item # 130TSA6901
What's in the box:
Pioneer TS-A6901C owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two woofers
- Two tweeters (with attached 10" speaker leads terminated with quick-connects)
- 2 Multi-application woofer mounting brackets
- 2 Lengths of speaker wire (each has quick slides to connect to the woofer-a 40" tweeter output leg with integrated crossover-and an 10" input leg)
- 2 Tweeter angled surface mount housings
- 2 Tweeter flush mount rings
- 2 Tweeter factory mount brackets
- Eight 1-1/8" Screws
- Six 1/2" Screws
- Eight 3/8" Screws
- 2 Adhesive backed foam discs
- Warranty information
- Templates and specs on box
Featured video:
More details on the Pioneer TS-A6901C
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6X9 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Carbon and Mica reinforced IMPP | |
| Woofer Surround | Rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
| Tweeter Design | Dome | |
| Tweeter Material | Polyetherimide | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | No | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 92 | |
| Sensitivity at 2.83 volts | N/A | |
| Frequency Response | 28 - 58k Hz | |
| Maximum RMS Wattage | 100 | |
| Peak Power Handling (Watts) | 450 | |
| Top-mount Depth (Inches) | 2 7/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 0 | |
| Mounting Height (Inches) | 0.274 | |
| Frame Width | 6.37 | |
| Frame Length | 9.298 | |
Product Research
Features

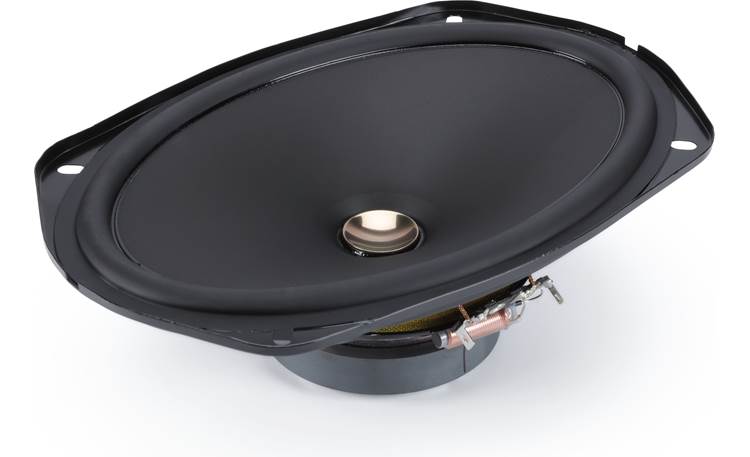

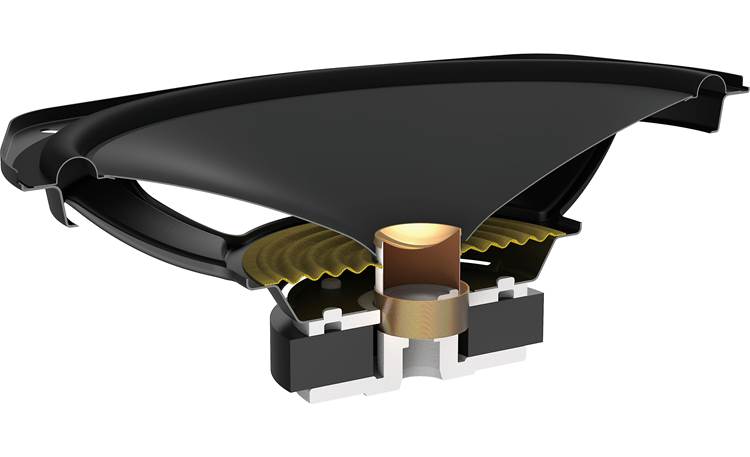

Woofers: Each woofer has a carbon and mica reinforced injection-molded polypropylene (IMPP) cone. This process of cone molding assures a uniform cone thickness to improve linearity and clarity. Additionally, the cones are lightweight and rigid to decrease distortion.

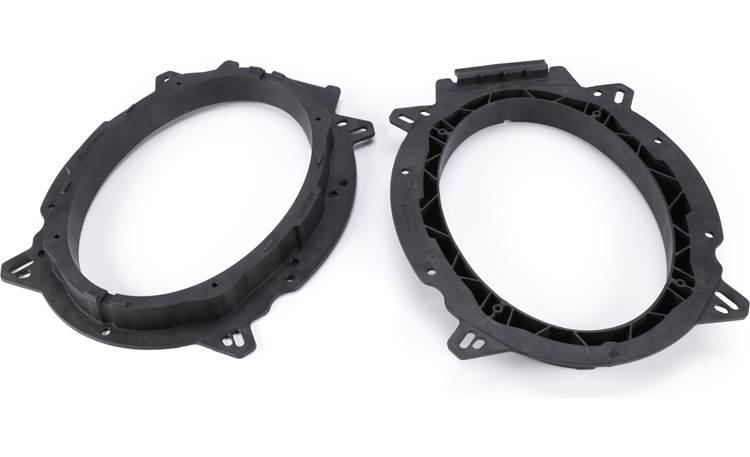

Mounting Brackets: Pioneer includes a pair of mounting brackets to install the woofers in vehicle-specific applications. Again, enter your vehicle information to confirm fit.

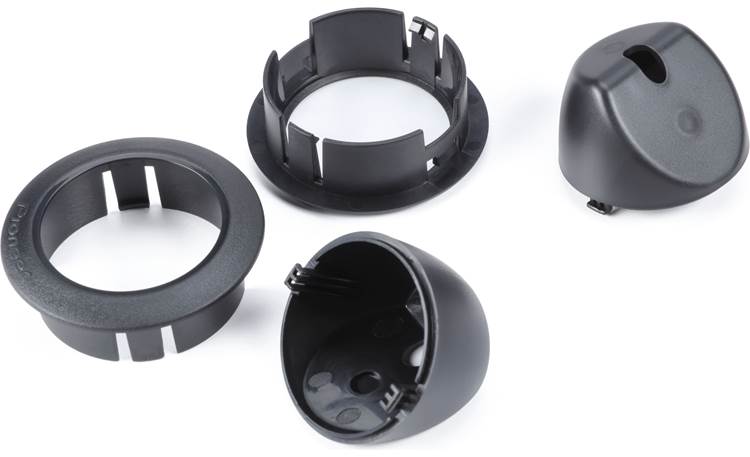

Tweeter Mounting: The system includes flush mount rings and angled surface mount housings for the tweeters. The surface mount housing positions the tweeters at approximately a 45° angle. Flexible brackets are also included for mounting the tweeters in factory locations. Once installed the tweeters do not swivel.
Tweeter Mounting Dimensions:
| Angled Surface Mount | Flush Mount | |
|---|---|---|
| Mounting Height | 1.475" | 0.2" |
| Mounting Depth | screw depth | 0.552" |
| Frame Diameter | N/A | 1.952" |
| Frame Depth | 1.8" | N/A |
| Frame Width | 1.5" | N/A |
| Cutout Diameter | N/A | 1.63" |

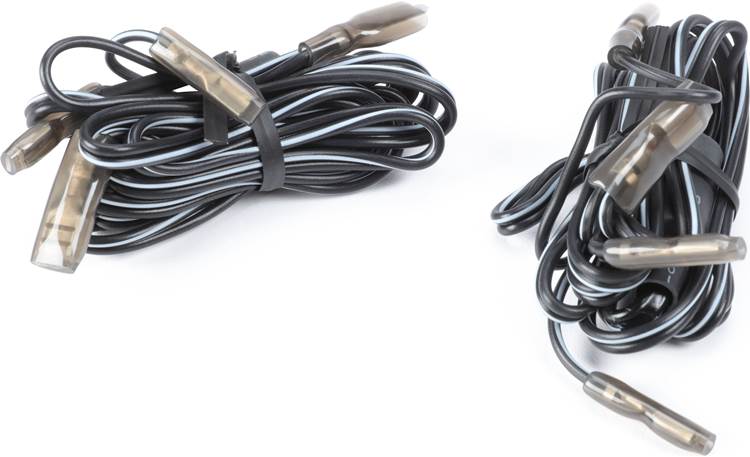

Crossovers: The high pass crossovers are integrated into the included speaker wire and the low pass crossovers are mounted to the woofer frames. The slope is 6 dB/octave and the crossover point is 3.8 kHz. Each length of speaker wire connects to both a woofer and tweeter. Quick slides connect to the woofer, a 40" output leg with integrated crossover (approximately ½" diameter x 1" long) connects to the terminals attached to the tweeter, and a 10" input leg connects to the source.
The Pioneer TS-A6901C replaces these items:
- 6"x9" multilayer carbon- and mica-reinforced IMPP woofer cone with elastic polymer surround
- 3/4" polyimide hard dome tweeter with inline crossover
- handles up to 100 watts RMS (450 watts peak power)
