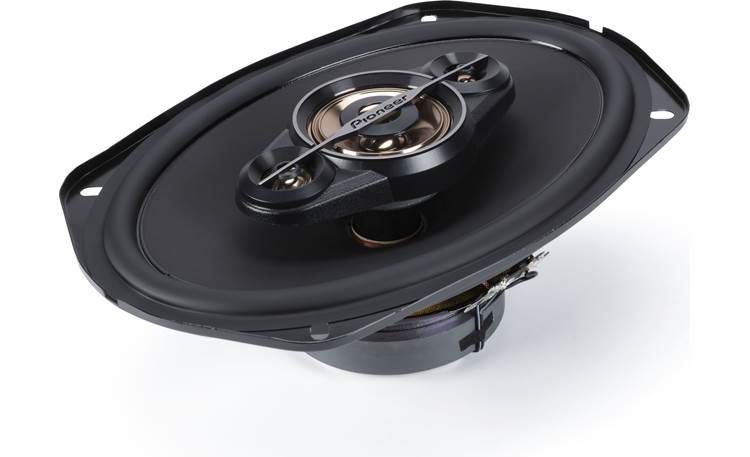

About the Pioneer TS-A6971F

Product highlights:
- 4-way car speakers (pair)
- 6"x9" carbon/mica reinforced injection molded polypropylene woofer cone with rubber surround
- 2-1/4" polyetherimide midrange cone
- polyetherimide 3/4" semi-dome tweeter and 7/16" supertweeter
- handles up to 100 watts RMS (600 watts peak power)
- frequency response: 29-33,000 Hz
- sensitivity: 92 dB
- impedance: 4 ohms
- top-mount depth: 2-7/8"
- black steel mesh grilles included
- warranty: 1 year
- MFR # TS-A6971F
- Item # 130TSA697
What's in the box:
Pioneer TS-A6971F owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 4-way speakers
- 2 Grilles
- 2 Grille frames
- 2 Multi-application mounting brackets
- Two 12" Lengths of speaker wire (each has quick-slides on one end and bare wire on the other)
- Eight 1-1/8" Screws
- Eight 3/8" Screws
- Warranty information
- Specifications and template on box
Featured video:
More details on the Pioneer TS-A6971F

Features & specs
General | ||
---|---|---|
Speaker Size | 6X9 | |
Driver Design | 4-way | |
Woofer Design | Cone | |
Woofer Material | Carbon and Mica reinforced IMPP | |
Woofer Surround | Rubber | |
Midrange Design | Cone | |
Midrange Material | Polyetherimide | |
Tweeter Design | Dome | |
Tweeter Material | Polyetherimide | |
Super Tweeter Design | Dome | |
Super Tweeter Material | Polyetherimide | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black steel mesh, Plastic frame, Silver Accent | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 92 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 29 - 33k Hz | |
Maximum RMS Wattage | 100 | |
Peak Power Handling (Watts) | 600 | |
Top-mount Depth (Inches) | 2 7/8 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 0 | |
Mounting Height (Inches) | 0.64 | |
Frame Width | 6.365 | |
Frame Length | 9.3 |
Product Research
Features

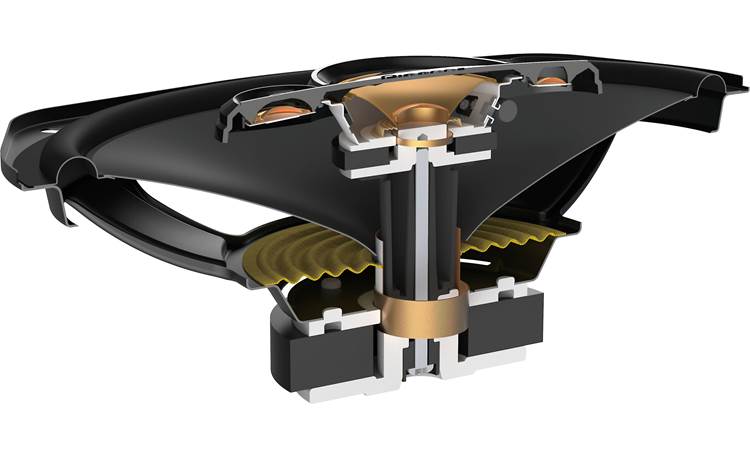

Woofers: Each speaker has a carbon and mica reinforced injection-molded polypropylene (IMPP) woofer. This process of cone molding assures a uniform cone thickness to improve linearity and clarity. Additionally, the cones are lightweight and rigid to decrease distortion.
Tweeter/Midrange: The speakers feature Polyetherimide (PEI) midrange, tweeters and super tweeters. PEI is a polymer film that produces a wide sound-stage for superior imaging.

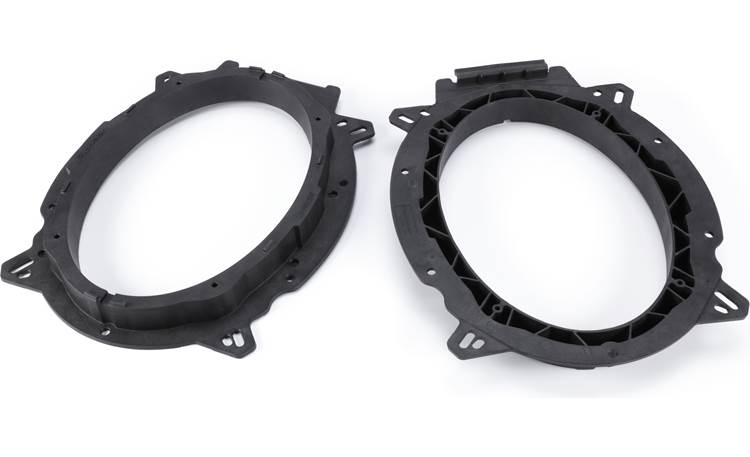

Mounting Brackets: Pioneer includes a pair of mounting brackets to install the speakers several in vehicle-specific applications. Please enter your vehicle information to confirm fit.
