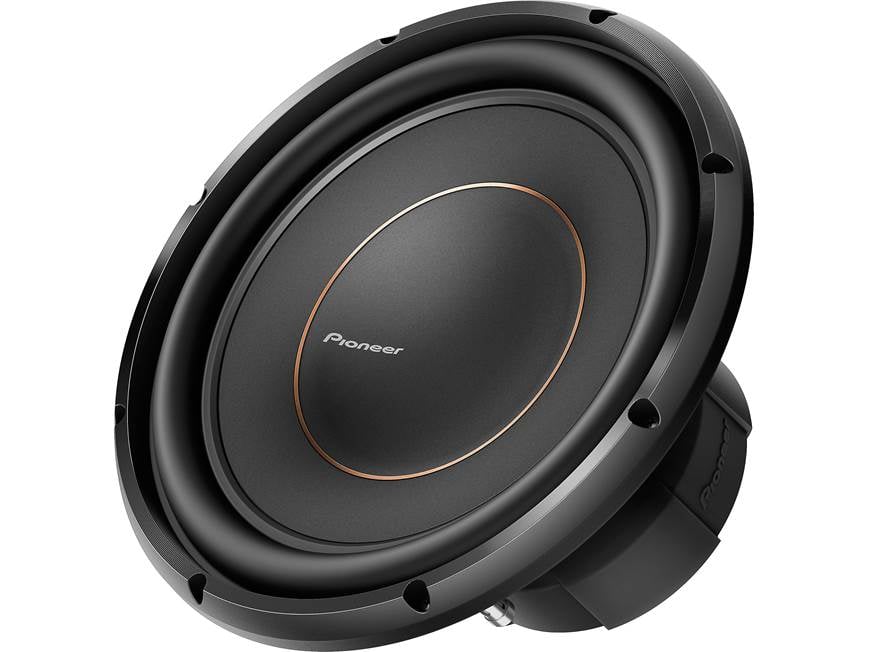

About the Pioneer TS-D12D2

Product highlights:
- 12" subwoofer with dual 2-ohm voice coils
- injection-molded polypropylene/aramid fiber cone
- butyl rubber surround
- power handling: 600 watts RMS (300 watts per coil)
- 2000 watts peak power handling
- frequency response: 20-4700 Hz
- sensitivity: 74 dB
- mounting depth: 6-1/4"
- grille not included
- warranty: 1 year
- MFR # TS-D12D2
- Item # 130TSD12D2
What's in the box:
Pioneer TS-D12D2 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 12" Dual 2-ohm voice coil woofer
- Trim ring
- Eight 1-1/4" Screws
- Adhesive backed foam gasket
- Manual (English/ German/ French/ Spanish/ Portuguese/ Italian/ Russian)
- Warranty information
More details on the Pioneer TS-D12D2

Features & specs
Features and Specs | ||
---|---|---|
Size | 12-inch | |
Impedance (Ohms) | 1, 4 | |
Cone Material | Aramid Fiber Interlaced IMPP | |
Surround Material | Butyl Rubber | |
Basket Material | Steel | |
Grille | None included | |
Free-Air | Yes | |
Dual Voice Coil | Yes | |
Sensitivity |
76 dB at 1 watt | |
Frequency Response | 20 - 4700 Hz | |
Max RMS Power Handling | 600 | |
Peak Power Handling (Watts) | 2000 | |
Top Mount Depth (inches) | 6 3/16 | |
Bottom Mount Depth (inches) | N/A | |
Cutout Diameter or Length (inches) | 11 | |
Frame Width | 12.45 | |
Frame Length | 12.45 | |
Vas (liters) | 46.2 | |
Fs (Hz) | 33 | |
Qts | 0.64 | |
Xmax (millimeters) | 13 | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Box Requirements | ||
Ideal Sealed Box Volume (cubic feet) | 1 | |
Minimum Sealed Box Volume (cubic feet) | 0.8 | |
Maximum Sealed Box Volume (cubic feet) | 1.2 | |
Ideal Ported Box Volume (cubic feet) | 1 | |
Minimum Ported Box Volume (cubic feet) | 0.8 | |
Maximum Ported Box Volume (cubic feet) | 1.2 | |
Port diameter (inches) | 3 | |
Port length (inches) | 6 |
Product Research
Features
Woofer Cone: Pioneer uses aramid fiber interlaced injection molded polypropylene (IMPP) for the cone, making it more rigid than polypropylene alone.
Dual 2Ω Voice Coils: This woofer features two 2Ω voice coils, offering wiring flexibility. When the voice coils are wired in parallel, the woofer presents a 1Ω load; when wired in series, the woofer presents a 4Ω load.
Terminals: The spring post terminals will accept pin connectors, single banana plugs, or bare wire up to 10 gauge.
Sealed Box Volume: The sealed box sizes recommended by Pioneer range from 0.8 ft³ to 1.2 ft³; within this range the ideal size is 1.0 ft³.
Vented Box Volume: The vented box sizes recommended by Pioneer range from 0.8ft³ to 1.2 ft³; within this range the ideal size is 1.0 ft³ with a single 3" diameter x 6" long port.
Double-stacked Magnet: The woofer uses double-stacked magnets to create a powerful magnetic force. This increases the control exerted over the voice coil.
Free-Air: The woofer can also be mounted in free air to a baffle board (infinite baffle, no enclosure). When mounted in free air, the power handling is reduced by 75% (to 150 watts).
Measurements: When mounting the woofer without the trim ring, the dimensions change as follows:
- Mounting Height: 0.564"
- Flange Height: 0.165"
- Frame Diameter: 12.26"
