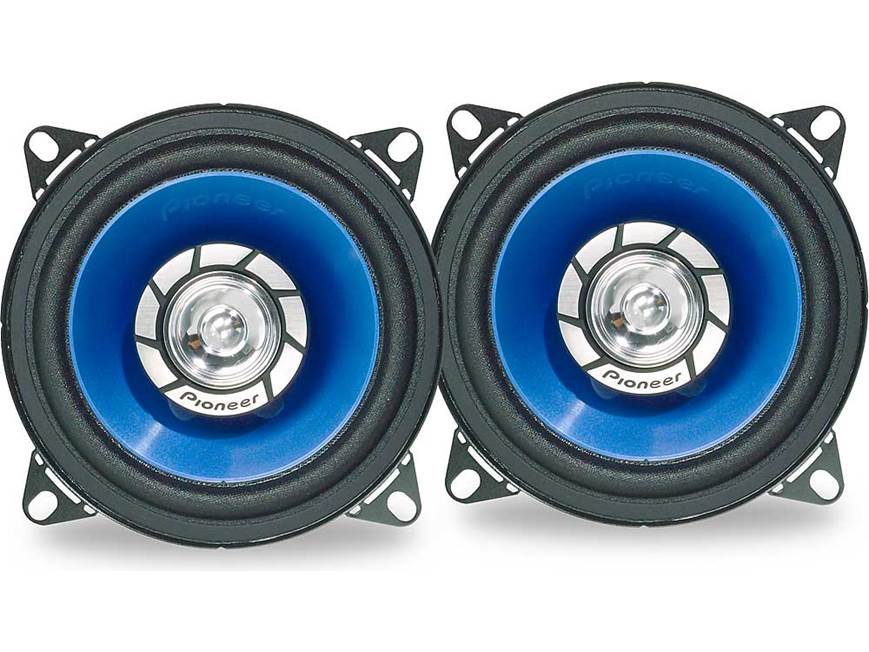

Pioneer TS-G1040R 4" 2-way car speakers

Item # 130TSG1040

Pioneer's bold and blue TS-G1040R 4" speakers lay down great sounds when you crank 'em up! These affordably-priced...

Find what Fits your vehicle

Remove

Checking fit...

Pioneer's bold and blue TS-G1040R 4" speakers lay down great sounds when you crank 'em up! These affordably-priced...

Item # 130TSG1040

Shop all Pioneer 4" Speakers

About the Pioneer TS-G1040R

Ken Nail
Pioneer's bold and blue TS-G1040R 4" speakers lay down great sounds when you crank 'em up! These affordably-priced Pioneers feature beefy IMPP composite woofers that belt out full bass. Warm and clear high-frequency response is a given, thanks to the metal film cone tweeters.

Pioneer's bold and blue TS-G1040R 4" speakers lay down great sounds when you crank 'em up! These affordably-priced Pioneers feature beefy IMPP composite woofers that belt out full bass. Warm and clear high-frequency response is a given, thanks to the metal film cone tweeters.

The combination of great sound and solid power handling makes these speakers a fine choice when you're ready to ditch the worn-out factory speakers in your ride. These Pioneers have removable mounting tabs, so they'll fit in both standard 4", metric 4" (4m), and Toyota-style 4" (4T) locations.

Priced per pair

READ LESS

Product highlights:

  • 2-way 4" speakers (pair)
  • injection-molded polypropylene (IMPP) composite woofer with cloth surround
  • 1-1/8" metal film cone tweeter
  • frequency response 45-22,000 Hz
  • recommended power range 2-20 watts RMS
  • peak power handling 100 watts
  • sensitivity 90 dB
  • top-mount depth 1-5/8"
  • warranty: 1 year
  • MFR # TSG1040R

What's in the box:

  • Two 2-way speakers
  • Two 13" lengths of speaker wire (each length of speaker wire has quick-slides on one end and bare wire on the other end)
  • 8 Self-tapping screws
  • 8 Speed clips
  • Warranty sheet

Customer reviews for Pioneer TS-G1040R

Loading reviews...

Average review:

4.0 out of 5 stars
10 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

More details on the Pioneer TS-G1040R

Pat M.

Features & specs

General
Speaker Size
Design 2-way
Tweeter Design Cone
Impedance (Ohms) 4
Tweeter Composition Metal Film
Woofer Composition IMPP
Woofer Surround Cloth
Parts Warranty 1 Year
Labor Warranty 1 Year
Specifications
Sensitivity (1W at 1 meter) 90
Sensitivity at 2.83 volts N/A
Frequency Response 45 - 22k Hz
Minimum RMS Wattage 2
Maximum RMS Wattage 20
Peak Power Handling (Watts) 100
Top-mount Depth (Inches) 1 5/8
Bottom-mount Depth (Inches) 1 3/4
Cutout Diameter or Length (inches) 3 9/16
Mounting Height (Inches) 0.287
Frame Width 4.014
Frame Length 4.014
The Pioneer TS-G1040R replaces these items:

Product Research

Features

Injection-molded Polypropylene (IMPP) Composite Woofers: Each composite woofer is constructed from injection-molded polypropylene. This process of cone molding assures a uniform cone thickness for superior linearity and clarity. In addition, the cones are lightweight and rigid for decreased distortion and superior bass response.

Treated Cloth Surrounds: Each woofer uses a treated cloth surround for improved durability.

1-1/16" PET Silver Film Cone Tweeters: Each speaker features a 1-1/16" PET silver film cone tweeter for crisp, clear highs.

4/2/0 Hole Compatibility: The speaker tabs are perforated for easy removal, allowing you to use the speakers in 4-hole, 2-hole (size 4T), or 0-hole (size 4M) applications.
