Features

Coreless Direct-Drive Motor: For the SL-1200M7B, a new coreless direct drive motor was developed. This motor employs a coreless stator. The removal of the core (iron core) from the stator eliminated the root cause of cogging. Furthermore, the magnetic force of the rotor magnets was improved to the highest possible level, and the gap between the coreless stator and rotor magnets was optimized, thus achieving high-torque-performance. Boasting smooth rotation and powerful torque, this motor reproduces sound accurately and faithfully from the groove on an analogue record.

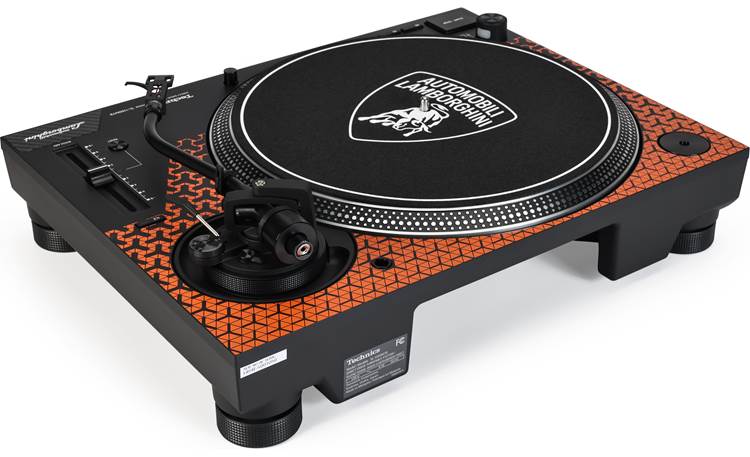

High Sensitive Tonearm: The tonearm, which has continued to support the leading edge of the DJ scene for many years, inherits the highly reliable static-balance universal S-shape tonearm. Using high-precision bearings, it achieves a higher initial-motion sensitivity. This accurately tracks the groove on the phono record to assure excellent tracking performance with minimum stylus jumping even in harsh playing conditions such as scratching.

Speed & DJ Controls: The Technics SL-1200M7B direct drive turntable supports playback speeds of 33-1/3, 45, and 78 RPM records The torque/brake speed adjustment, rotation speed switch, and reverse play can be adjusted by switches on the SL-1200M7B turntable.

• Torque/Brake Speed Adjustment: The newest digital motor control technology, accumulated through the development of Blu-ray disc products, is applied to improve adjustment by allowing the torque and brake speed to be adjusted individually in four steps.
• Pitch Control: The pitch control function allows fine adjustment of the rotation speed within +/- 8% or +/-16%. It does this through digital control, from positional detection of the slider to rotational control of the motor, eliminating the unnecessary DA conversion. This greatly improves tracking performance to achieve accurate and stable pitch adjustment.
• Reverse Play: The SL-1200M7B offers a reverse play function, which brings forth new possibilities of creative performance.
• Stylus Illuminator: The stylus illuminator features a new push-type structure for intuitive operation, and employs a high-brightness and long-life white LED. The illumination area and intensity were reviewed to provide improved visibility of the stylus tip even in a dark environment.

High-Rigidity Cabinet with Damping Insulator: The turntable's chassis, an essential part for reducing external vibrations, inherits the audio quality enhancement technology fostered through the development of high-end turntables. The aluminum die-cast chassis is rigidly integrated with a special material consisting of ABS mixed with glass fiber to achieve a two-layer construction. The combination of this special high-rigidity material and a metal chassis raised the rigidity and vibration-damping performance to higher levels, realizing a robust cabinet for beautiful sound reproduction. The insulator is comprised of a spring and rubber to provide optimal frequency characteristics. This not only assures high sound quality and superb howling resistance, but also effectively shuts out external vibrations under high sound level conditions.

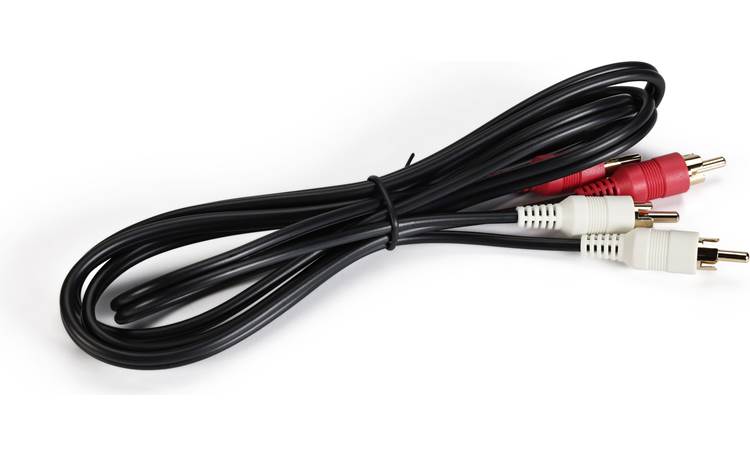

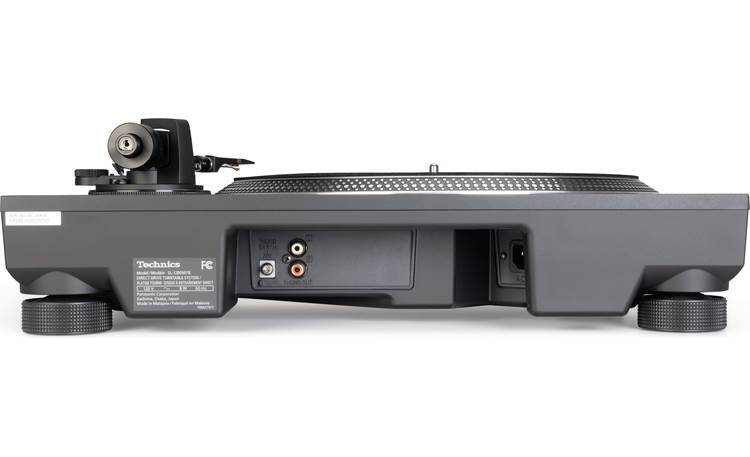

Gold-Plated RCA Outputs: The Technics SL-1200M7B direct drive turntable uses gold-plated phono terminals for detachable cables, so a wide variety of cables can be selected. Also, the use of metal shielding construction inside the case reduces the effects of external noise. The turntable must be connected to a Phono MM input on the back of your integrated amplifier or AV receiver. If your amplifier or receiver does not have a suitable Phono MM input, a separate phono preamplifier (sold separately - see Accessories Tab) is required to connect the turntable to your amp or receiver.
