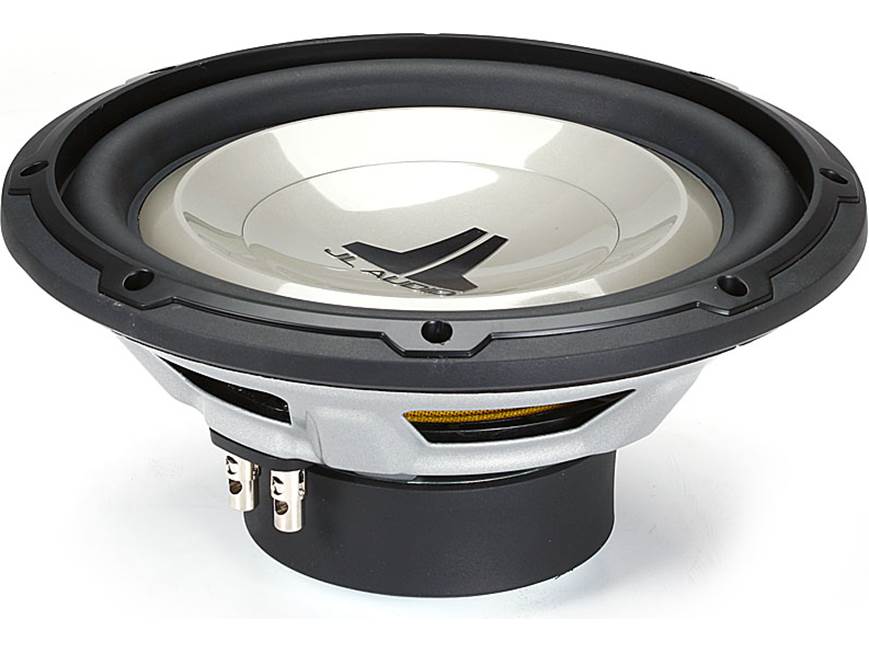

JL Audio 10W1v2-8 W1v2 Series 10" 8-ohm subwoofer

Item # 13610W1V28

The affordable W1v2 subwoofer incorporates patented features developed by JL Audio for their legendary W7 subs.

The affordable W1v2 subwoofer incorporates patented features developed by JL Audio for their legendary W7 subs.

Item # 13610W1V28

Shop all JL Audio Component Subwoofers

About the JL Audio 10W1v2-8

Dominic DeVito
The affordable W1v2 subwoofer incorporates patented features developed by JL Audio for their legendary W7 subs. Special venting keeps the W1v2 sub running cool for trouble-free performance, while extensive research in cone bonding and motor assembly construction keeps its cone movement linear for precise, dependable output. The cone interlocks with the dust cap for superior rigidity, and a sophisticated suspension system keeps internal parts aligned properly.

The affordable W1v2 subwoofer incorporates patented features developed by JL Audio for their legendary W7 subs. Special venting keeps the W1v2 sub running cool for trouble-free performance, while extensive research in cone bonding and motor assembly construction keeps its cone movement linear for precise, dependable output. The cone interlocks with the dust cap for superior rigidity, and a sophisticated suspension system keeps internal parts aligned properly.

The low-profile 10W1v2-8 10" subwoofer works best in compact enclosures, so you can put quality lows in smaller and hard-to-fit vehicles. It features a metallic-finish polypropylene cone with an embossed JL Audio logo for a look that stands out as much as the sound. The removable, customizable trim ring lets you put a personal touch on your system, and makes optional grille installation a snap. This punchy W1v2 sub works well with moderate power, delivering impressive performance without costing a fortune.


Priced per speaker
READ LESS

Product highlights:

  • 10" 8-ohm subwoofer
  • metallic-finish polypropylene cone with nitrile-butylene rubber surround
  • power range: 50-300 watts RMS
  • peak power handling: 600 watts
  • frequency response: 25-250 Hz
  • sensitivity: 84.67 dB
  • top-mount depth: 4-7/16"
  • sealed box volume: 0.625 cubic feet
  • ported box volume: 1.0 cubic foot
  • Recommended Q-Logic Box Type: 1, 2
  • warranty: 1 year
  • MFR # 92073

What's in the box:

  • 10" Single voice coil 8-ohm subwoofer
  • Black plastic trim ring
  • Owner's Manual

Customer reviews for JL Audio 10W1v2-8

Loading reviews...

Average review:

4.5 out of 5 stars
3 reviews

Thanks for submitting your review

Filter by rating

Customer photos

Customer provided image, click to load a larger version.
Customer provided image, click to load a larger version.

Sort reviews

Sort by:
Items per page:
View page:

Verified customer (What's this?)
Verified employee review (What's this?)

Reviewed on Samsung.com

This review was collected as part of a promotion

Pros:

Cons:

Crutchfield response
Customer provided image, click to load a larger version.
<< >>

Product Research

Features
Enclosure Compatibility

Features

Woofer: JL Audio W1v2 subwoofer features an injection-molded, metallic-finish polypropylene cone woofer with an embossed metallic JL Audio logo with a butyl rubber surround for added durability, woofer excursion and bass response.

Surround Stress Relief: By creating a radius feature on the edge of the cone, stress is relieved from the surround material at  maximum forward excursion, resulting in longer life and more consistent surround behavior

Interlocking Cone & Dust Cap: The W1v2's utilize a dust cap that is not just glued, but also interlocks with features molded into the cone body for a tight snap-fit. This creates a more rigid cone assembly and a more reliable dust cap attachment.

Dynamic Motor Analysis (DMA): DMA is JL Audio's proprietary method aimed at improving dynamic motor behavior. As a result of DMA optimization, W1v2 motors remain linear in motor force over a very long range of excursion, and also maintain a highly stable fixed magnetic field in the gap over a wide power range. The result is vastly reduced distortion, faithfully reproduced transients, and tight, clean, articulate bass.

Floating Cone Attachment Method (FCAM): JL Audio's patented FCAM technology is an innovative method of bonding the surround/cone assembly to the voice coil/spider assembly. This assembly technique ensures proper surround geometry in the assembled speaker for better excursion control and dynamic voice coil alignment.

Vented Reinforcement Collar: The Vented Reinforcement Collar (VRC) is a composite structure that addresses two issues related to reliability.

  • Stress Relief: By reinforcing the critical junction between the cone, voice coil and spider, the VRC greatly reduces failures due to glue breakdown or material weakness. It does this by greatly increasing adhesive contact area and providing stress relief to the spider material at excursion extremes
  • Air Flow: The VRC also features slots that facilitate air flow directly onto the voice coil windings. This reduces thermal compression effects and enhances reliability

Insert Molded Suspension/Coil/Terminal Sub-Assembly: The W1v2 features a unique spider, coil and terminal subassembly which is assembled prior to installation in the speaker frame for optimum alignment and glue-joint integrity. This type of assembly ensures precise lead wire length, lead wire entry and exit angles; and coil to spider perpendicularity.

Elevated Frame Cooling System: The elevated frame design of the W1v2 delivers cool air through slots directly above the top-plate to the voice coil of the speaker. This not only enhances power handling, but also sound quality by minimizing dynamic parameter shifts and power compression.

Customizable Trim Ring: The woofer comes with a removable ring made of black ABS plastic which can be painted to match the installation theme and create a personalized look. You can purchase optional grille mesh inserts which are specifically designed to fit into the inner diameter of the trim ring.

Enclosure Compatibility

Recommended Sealed Box Volume: The sealed box size recommended by JL Audio is 0.625 cu/ft. A diagram is provided in the owner's manual for a sealed box with external dimensions of 16.5" W x 13.5" H x 7.75" D, assuming 3/4" thick material. (If you are using 5/8" thick materials, you should subtract 1/4" from each dimension.)

Recommended Ported Box Volume: The ported box size recommended by JL Audio is 1.00 cu/ft. A diagram is provided in the owner's manual for a sealed box with external dimensions of 18" W x 13.25" H x 13.5" D, assuming 3/4" thick material. (If you are using 5/8" thick materials, you should subtract 1/4" from each dimension.) A slot port is recommended with the following dimensions:

  • Slot Width =1.0"
  • Slot Height = 11.75"
  • Slot Length = 29.0" (a right angled port with a 13.75" extension)
