JL Audio M3-770X-S-GW-I 7.7" marine speakers with LED lights (Gloss White with Sport Grilles)

Name: JL Audio M3-770X-S-GW-I
Brand: JL Audio
SKU: 13693523
Price: 419.99 USD
Availability: InStock
Rating: 4.5 (10 reviews)

Item # 13693523

Having toured JL Audio myself, I can tell you these guys take two things very seriously — great sound and...

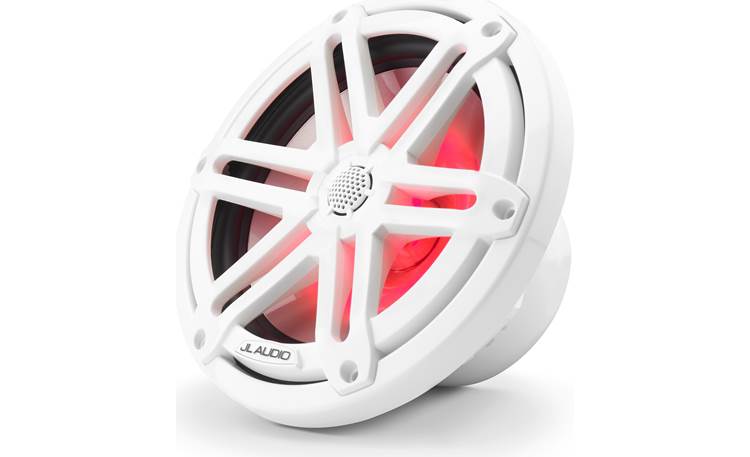

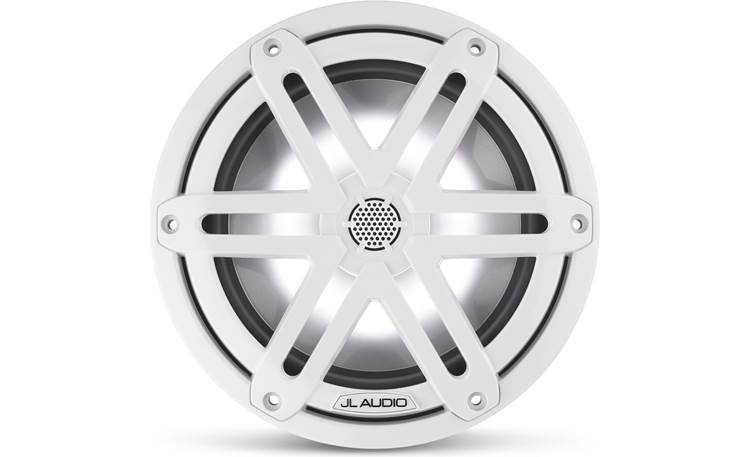

JL Audio builds the tweeter into the grille of this LED-equipped speaker

1/38

Back

2/38

Only at Crutchfield

3/38

Only at Crutchfield. No pressure. And no commissions! Our experts help you get what you need and will never upsell you. No sweat. We do the research, so you get the best info, the best instruction, and the best tech support. All for free. No regret. With 60-day price protection and returns, you can feel good about your purchase – or send it back. Legendary Service. Since 1974.

From JL Audio: M3 Marine Coaxial Loudspeaker

JL Audio M3-770X-S-GW-I JL Audio builds the tweeter into the grille of this LED-equipped speaker

JL Audio M3-770X-S-GW-I Only at Crutchfield

Having toured JL Audio myself, I can tell you these guys take two things very seriously — great sound and...

Item # 13693523

Free 1-day shipping to Virginia

Every order includes

Free lifetime tech support
60-day price-drop protection
60-day returns

In stock

$419.99 pair

Add to cart

Add to wishlist

Compare products

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

1-888-955-6000

by Crutchfield's Alexander H.

Get the LED out

Having toured JL Audio myself, I can tell you these guys take two things very seriously — great sound and life on the water. These M3-770X-S-Gw-i 7.7" marine speakers combine durable, marine-ready design, outstanding audio performance, and the cool look of subtle blue lighting. Supplied with plenty of power, these oversized speakers can overcome that wicked combination of wind, water, and engine noise. Plus, the built-in LED lighting brightens up any nighttime cruise.

Tough enough for life on a boat

The weatherproof cone is suspended in a durable synthetic rubber surround for great sound and long life, and the UV-resistant polymer basket surrounds and protects the entire structure. The 3/4" treated silk dome tweeter renders brilliant highs, and it's mounted directly to the white "Sport" grille for optimal sound radiation. The high-quality 2-way crossover mounted to the woofer basket ensures the woofer and tweeter work in perfect concert.

Ideal for free-air mounting

You can mount these sharp-looking 7.7" speakers in your boat's cockpit or bulkhead walls, either as stand-alones or in conjunction with a subwoofer. For optimal performance, each speaker will need at least 2 cubic feet of airspace.

Product highlights:

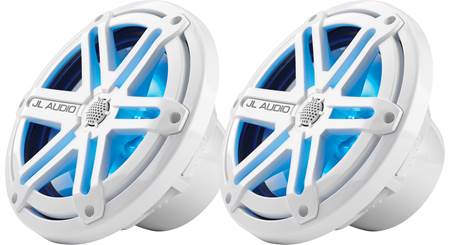

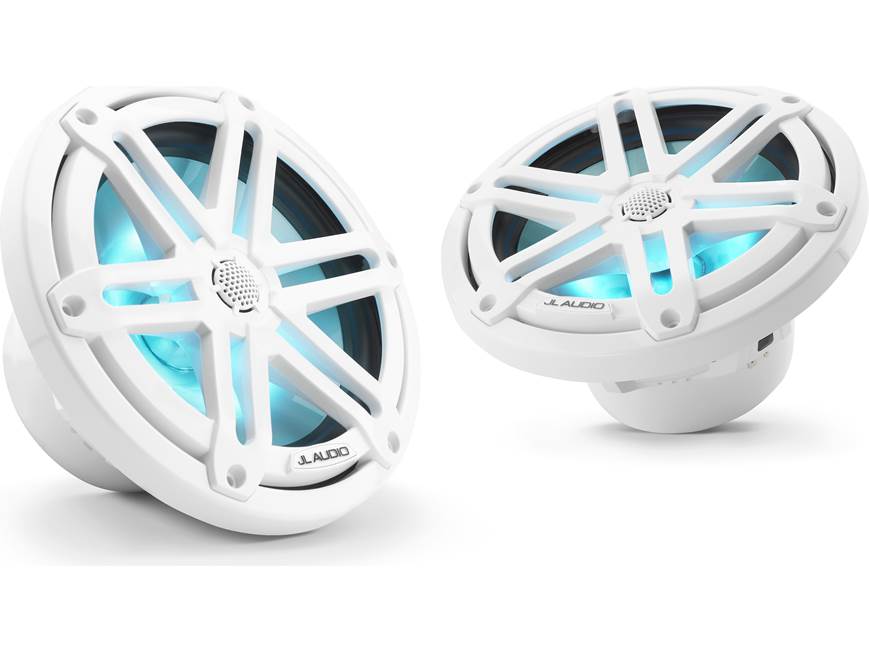

7.7" 2-way marine speakers with blue LED lighting (pair)
injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
3/4" silk dome tweeter
2-way crossover attached to the woofer basket
UV- and corrosion-resistant polymer baskets and white "Sport" grilles
designed for free-air applications (no enclosures needed)
- for best performance, speaker needs at least 2 cubic feet of airspace
power handling: 70 watts RMS (225 watts peak power)
frequency response: 45-25,000 Hz
impedance: 4 ohms
sensitivity: 90.5 dB
cutout diameter: 6.2
frame diameter: 7.7
mounting depth: 3.246
warranty: 2 years
MFR # 010-03069-00
Item # 13693523
California customers: Please click here for your Proposition 65 WARNING.

What's in the box:

JL Audio M3-770X-S-GW-I owner's manual

Two 2-way Marine speakers with grilles attached
Twelve 1-1/8" Philips-head stainless-steel screws
12 Stainless-steel flat washers
Owner's manual
Template

Researched by Crutchfield's Pat M.

Features & specs

General
Speaker Size	7.7
Design	2-way
Tweeter Design	3/4" Dome
Tweeter Composition	Silk
Woofer Composition	Mica-filled IMPP
Woofer Surround	Synthetic Rubber
Parts Warranty	2 Years
Labor Warranty	2 Years
Specifications
Sensitivity	90.5 dB at 1 watt
Frequency Response	45 - 25k Hz
Max RMS Power Handling	70
Peak Power Handling (Watts)	225
Impedance (Ohms)	4
Top-mount Depth (Inches)	3 1/4
Bottom-mount Depth (Inches)	N/A
Cutout Diameter or Length (inches)	6 1/4
Bolt Circle	6.91

The JL Audio M3-770X-S-GW-I replaces these items:

JL Audio MX770-CCX-SG-WLD-B

Product Research

Features

Marine Tested: JL Audio's marine speakers are tested in ultraviolet chambers to simulate years of sun exposure, and salt fog chambers to simulate years of exposure to salt-water environments.

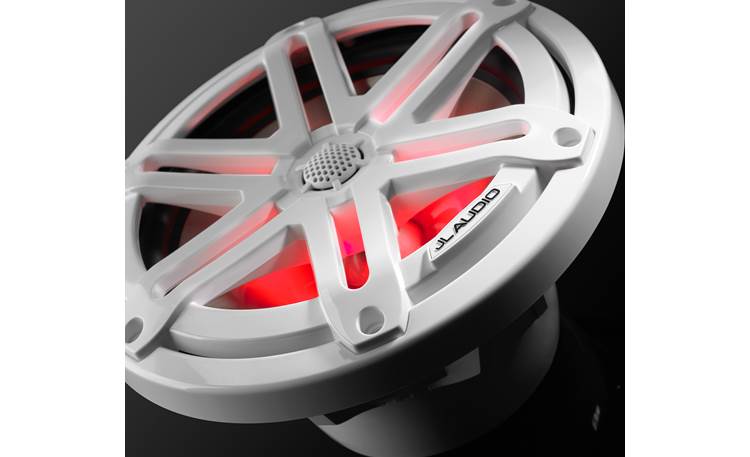

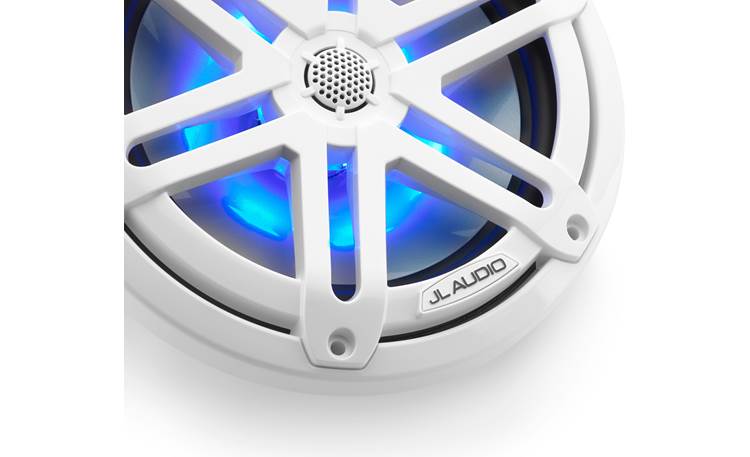

LEDs: There are six multi-color LEDs in the back of the tweeter casing, to create a glow on the woofer cone. Depending on what combination of LED wires is connected, they can light red, green, blue, yellow, pink, aqua, or white. A 12 volt power supply is needed to turn the LEDs on. JL Audio recommends a 150 mA fuse on the LED power lead of each speaker. The LEDs can also be controlled using JL Audio's MLC-RC controller (item number 13699816, sold separately).

Woofers: The woofer cones are injection-molded, mica-filled polypropylene with UV inhibitors, synthetic rubber surrounds, and marine-grade synthetic fiber spiders.

DMA (Dynamic Motor Analysis): DMA is JL Audio's proprietary method of improving dynamic motor behavior. The DMA-optimized long-excursion design enhances output, bass extension and power handling of the speaker.

Tweeters: Each speaker features a grille mounted ¾" treated silk dome tweeter with a specially formulated treatment to withstand the marine environment. The tweeters use neodymium magnets for higher efficiency levels and are Ferrofluid-cooled and damped for improved response and power handling capabilities.

Crossover: The woofers use a natural roll-off and the tweeter crossovers are 12 dB/octave. The crossover also features a polyswitch solid-state tweeter protection circuit.

Polymer Basket And Grille: The baskets and grilles are UV-resistant polymer. The baskets encapsulate the woofers' motor systems to prevent corrosion.

Infinite-Baffle Operation: The speakers are optimized for infinite-baffle operation so they can be installed in a variety of locations, without the need for a dedicated enclosure.

Power Handling: JL Audio recommends two RMS power figures for this model; 70 watts RMS continuous power handling and 20-140 recommended amplifier power. We've listed the more conservative 70 watts RMS in the specs table.

The JL Audio M3-770X-S-GW-I replaces these items:

JL Audio MX770-CCX-SG-WLD-B

7.7" marine speakers with LED lights

White w/ "Sport" grilles

6 reviews

injection-molded mica-filled poly woofers
synthetic rubber surrounds
3/4" silk dome tweeters

Loading accessories...

3 questions already asked

Can I set the low pass to 16Hz with these speakers?

scott Sep 03, 2023

1 answer

Perhaps we mean 16kHz, in which case the answer is yes, you could set a low pass crossover to block out frequencies over 16kHz. Our advisors are happy to help with your project via online chat or phone at 1-800-324-9695.

zachary Sep 03, 2023 (Staff)

To set the lighting to blue, is the lighting controller needed?

jeff Feb 06, 2023

1 answer

Greetings Jeff, and thank you for your question. A controller is only needed if you need or wanted to change the colors. If all you need is the one color, all you need is a power lead to a 12v switched source, and a ground.

thomas Feb 06, 2023 (Staff)
