About the JL Audio M6-770X-S-GmTi-i
Bring outstanding sound to your boat
Bring outstanding sound to your boat
JL Audio's line of M6 marine speakers bring a whole new level of sound and style to your boat. These powerful 7.7” speakers combine innovative design with rugged, marine-ready componentry to give you outstanding audio performance. They'll really cut through wind, water, and engine noise. And, with built-in LED lighting, these speakers look as great as they sound.
Designed to perform
The 1" treated-silk dome tweeters render brilliant highs, and true 2-way crossovers ensure that the woofer and tweeter work in perfect concert. You'll hear all the details of your music, even when the throttle is forward and you're skimming over the waves. You don't have to worry about mounting the crossovers, either, because they're attached to the speaker frames.
The coolest cones around
Any speaker with built-in lighting is cool enough, but JL Audio M6 speakers are something special. The unique Transflective™ cones let the light shine through when the LEDs are on, but look silver when the lights aren't in use, so your speakers will look awesome whether the lights are on or off.

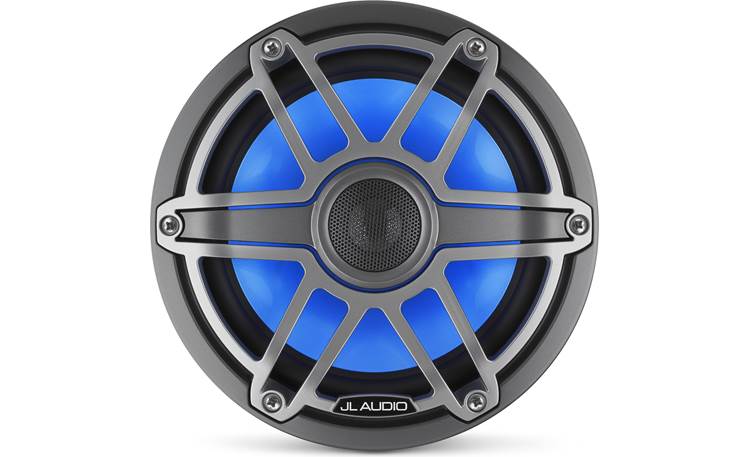

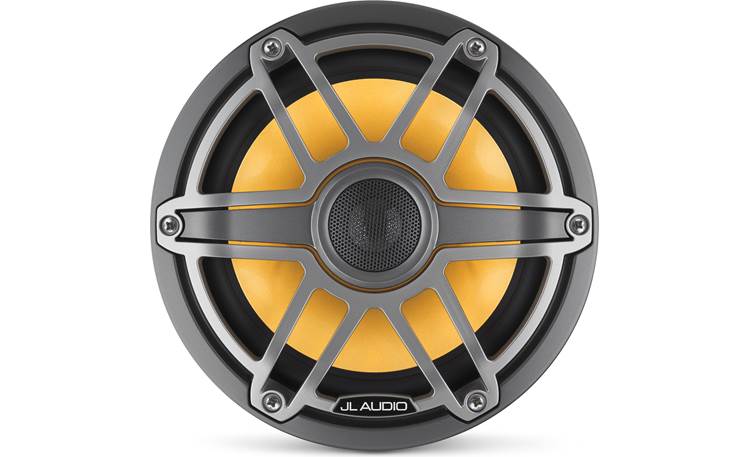

The LEDs themselves are mounted to the speaker's frame and illuminate the cone from underneath. This very smart bit of engineering ensures smooth, vibrant light without the “hot spots” you'd notice on lesser LED speakers. It sounds like a subtle difference, but when you see them lit up, you'll understand what a huge improvement this is. You can choose from a variety of fixed lighting colors or control the color and intensity of the lighting with the MLC-RW RGB LED Controller (sold separately).
Built for life on the water
All JL Audio marine speakers are designed to meet or exceed industry standards for salt, fog, and moisture resistance. They're built tough, too, with UV-resistant grilles and corrosion-resistant polymer baskets that surround the internal structure for extra protection. The marine-grade synthetic fiber spider, injection-molded polypropylene cone, and synthetic rubber surround provide outstanding performance, while shrugging off sun, salt, and moisture. As an added bonus, you're protected by JL Audio's 2-year warranty.
Product highlights:
- 7.7" 2-way marine speakers with RGB LED lighting (pair)
- injection-molded, mica-filled polypropylene woofer with synthetic rubber surround
- Transflective cone emits even glow when lit, appears silver with lighting off
- 1" silk dome tweeter
- 2-way crossover attached to the woofer basket
- UV- and corrosion-resistant polymer baskets and grille
- designed for free-air applications (no enclosures needed)
- for best performance, speaker needs at least 2 cubic feet of airspace
- power handling: 100 watts RMS (200 watts peak power)
- impedance: 4 ohms
- frequency response: 45-25,000 Hz
- sensitivity: 91 dB
- cutout diameter: 6.188
- frame diameter: 7.712
- mounting depth: 3.38
- warranty: 2 years
- MFR # 93604
What's in the box:
JL Audio M6-770X-S-GmTi-i owner's manual
- Two 2-way Marine speakers
- 2 Grilles
- Twelve 1-1/8" Philips-head stainless-steel screws
- 12 Stainless-steel flat-washers
- Owner's manual
- Template
Reviews (6)
Customer reviews for JL Audio M6-770X-S-GmTi-i
Loading reviews...
Average review:
5.0 out of 5 starsThanks for submitting your review
Customer photos
This review was collected as part of a promotion
Pros:
Cons:
More details on the JL Audio M6-770X-S-GmTi-i
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 7.7 | |
| Design | 2-way | |
| Tweeter Design | 1" Dome | |
| Tweeter Composition | Treated Silk | |
| Woofer Composition | Mica-Filled IMPP | |
| Woofer Surround | Rubber | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Specifications | ||
| Sensitivity |
91 dB at 1 watt | |
| Frequency Response | 45 - 25k Hz | |
| Max RMS Power Handling | 100 | |
| Peak Power Handling (Watts) | 200 | |
| Impedance (Ohms) | 4 | |
| Top-mount Depth (Inches) | 3 7/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 6 1/4 | |
| Bolt Circle | 6.928 | |
Product Research
Features
Marine Tested: JL Audio's marine speakers are tested in ultraviolet chambers to simulate years of sun exposure, and salt fog chambers to simulate years of exposure to salt-water environments.

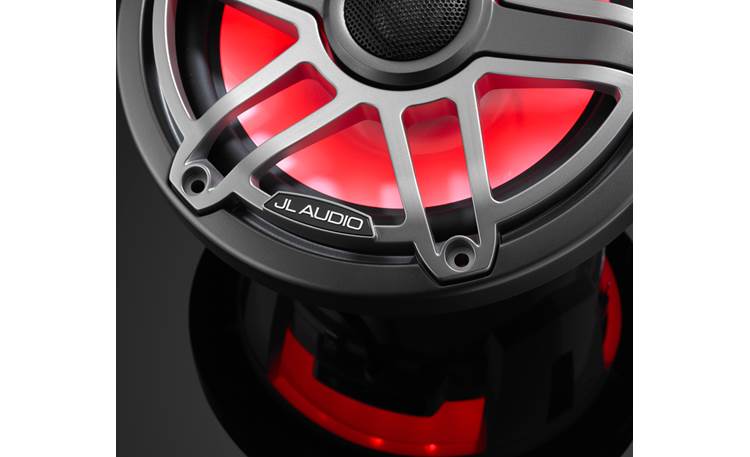

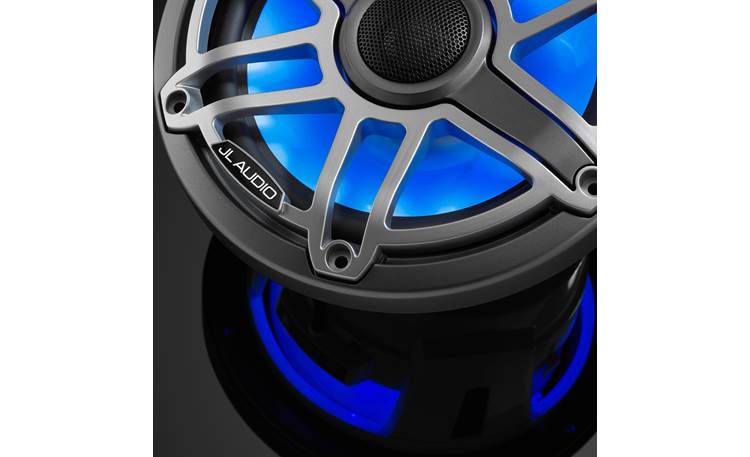

LED Illumination: There are multi colored LEDs mounted behind the cone in the speaker frame, to create a glow on the cone. Depending on what combination of LED wires is connected, they can light red, green, blue, yellow, pink, aqua, or white. A 12 volt power supply is needed to turn the LEDs on. JL Audio recommends a 500 mA fuse on the LED power lead of each speaker. The LEDs can also be controlled using JL Audio's MLC-RC controller (item number 13699816, sold separately).
Woofers: The woofer cones are mica-filled injection-molded polypropylene (IMPP) with UV inhibitors and synthetic rubber surrounds. The precisely engineered dust cap profiles help smooth the upper-end response. Each woofer uses a marine-grade synthetic fiber spider with a progressive roll design and a vented motor structure with a marine grade stainless steel rear diffuser plate.
DMA (Dynamic Motor Analysis): DMA is JL Audio's proprietary method of improving dynamic motor behavior. The DMA-optimized long-excursion design enhances output, bass extension and power handling of the speaker.
Tweeters: Each speaker features a bridge mounted 1" silk dome tweeter with a specially formulated treatment to withstand the marine environment. The tweeters use neodymium magnets for higher efficiency levels and is Ferrofluid-cooled and damped for improved response and power handling capabilities.
Crossover: The JL audio marine speakers utilize a true 2-way crossover network with 2nd order low-pass and 3rd order high-pass circuits. The crossover network also features a polyswitch solid-state tweeter protection circuit. The crossover is built into the terminal assembly to protect it from vibration and corrosion.

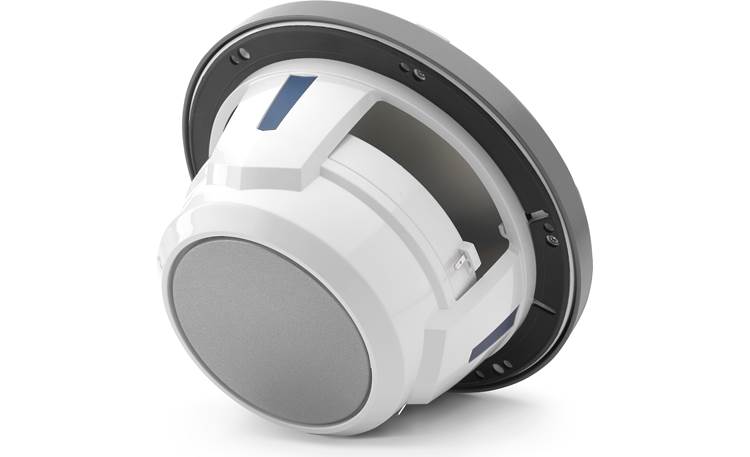

Polymer Basket And Grille: The baskets and grilles are UV-resistant polymer. The baskets encapsulate the woofers' motor systems to prevent corrosion.
Infinite-Baffle Operation: The speakers are optimized for infinite-baffle operation so they can be installed in a variety of locations, without the need for a dedicated enclosure.
Power Handling: JL Audio recommends two RMS power figures for this model; 100 watts RMS continuous power handling and 40-200 recommended amplifier power. We've listed the more conservative 40-100 watts RMS range in the specs table.
