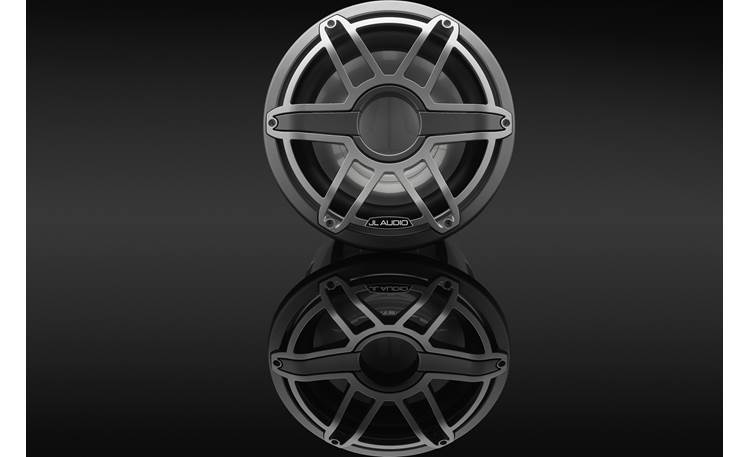

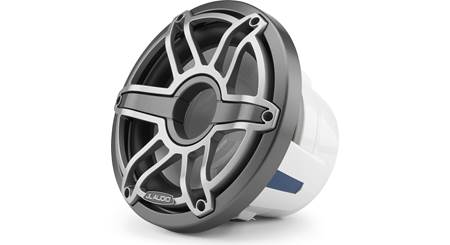

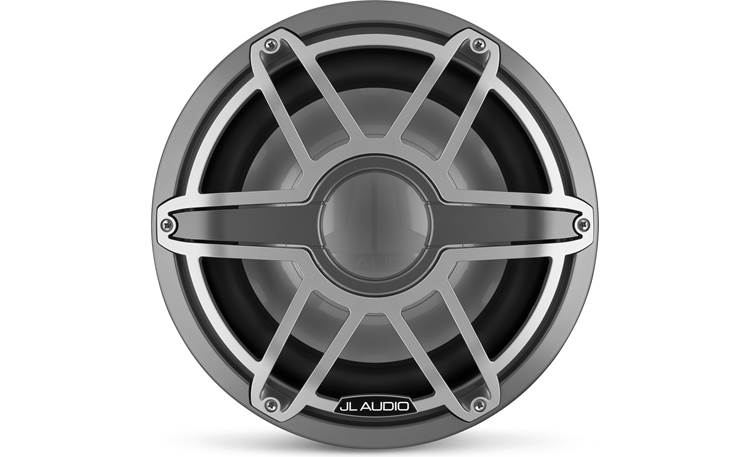

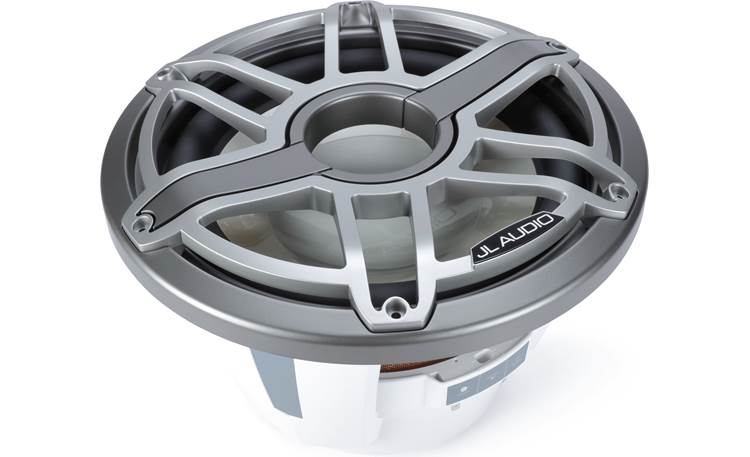

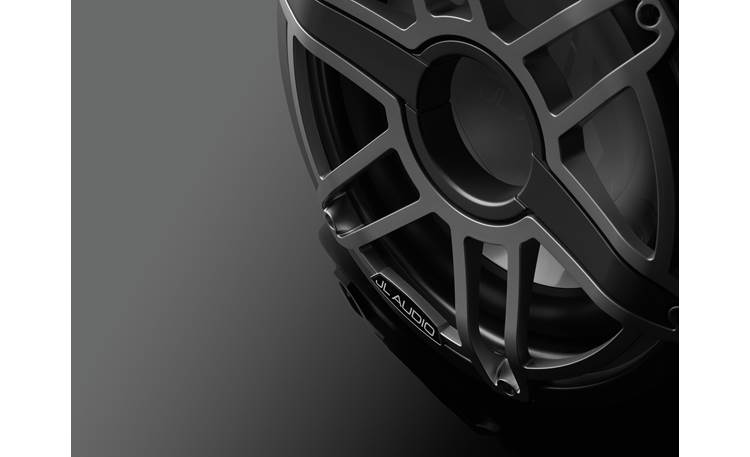

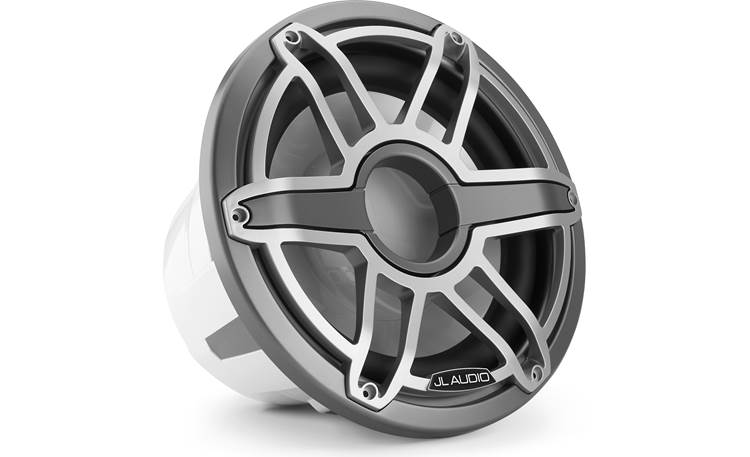

JL Audio M7-12IB-S-GwGw-4 M7 Series 12" marine subwoofer — designed for free-air applications (Gray Metallic Trim Ring, Titanium Sport Grille)

Item # 13693673

This M7 Series 12" marine subwoofer reflects JL Audio's commitment to awesome sound, cutting-edge styling, and...

This M7 Series 12" marine subwoofer reflects JL Audio's commitment to awesome sound, cutting-edge styling, and...

Item # 13693673

Every order includes

  • Free lifetime tech support
  • 60-day price-drop protection
  • 60-day returns
In stock
$1,049.99 each

Other options

Get questions answered fast & free

Expert help 400+ hours training Virginia-based

About the JL Audio M7-12IB-S-GwGw-4

Bob Bihlmayer

Product highlights:

  • 12" 4-ohm marine subwoofer
  • gloss white Sport grille included
  • injection-molded mica-filled polypropylene woofer with synthetic rubber surround
  • polymer basket with stainless steel back plate
  • marine-grade brass binding posts
  • marine-grade synthetic fiber spider
  • designed for free air applications
  • also works in large sealed (3 cu. ft. optimal) and ported boxes (5 cu. ft. optimal)
Specifications:
  • handles up to 600 watts RMS
  • sensitivity: 86.7 dB
  • top-mount depth: 8"
  • cutout diameter: 12"
  • frame diameter: 14"
  • weight: 25.3 lbs
  • warranty: 2 years
  • MFR # 010-03288-00
  • Item # 13693673

What's in the box:

JL Audio M7-12IB-S-GwGw-4 owner's manual

If you need assistance accessing this owner's manual, please give us a call.
  • One 12" Marine subwoofer
  • 1 Grille
  • Six 1-5/8" Stainless-steel screws
  • 6 Stainless-steel flat washers
  • Owner's manual

More details on the JL Audio M7-12IB-S-GwGw-4

Pat M.

Features & specs

Features and Specs
Size 12-inch
Impedance (Ohms) 4
Cone Material Mica-Filled IMPP
Surround Material Rubber
Basket Material Polymer
Grille Titanium (color) Polymer Sport
Free-Air Yes
Dual Voice Coil No
Sensitivity 86.7 dB at 1 watt
Frequency Response ---
Max RMS Power Handling 600
Peak Power Handling (Watts) 1000
Top Mount Depth (inches) 8
Bottom Mount Depth (inches) N/A
Cutout Diameter or Length (inches) 12
Frame Width 14
Frame Length 14
Vas (liters) 56.35
Fs (Hz) 35.34
Qts 0.791
Xmax (millimeters) 18.5
Parts Warranty 2 Years
Labor Warranty 2 Years
Box Requirements
Ideal Sealed Box Volume (cubic feet) 3
Minimum Sealed Box Volume (cubic feet) N/A
Maximum Sealed Box Volume (cubic feet) N/A
Ideal Ported Box Volume (cubic feet) 5
Minimum Ported Box Volume (cubic feet) N/A
Maximum Ported Box Volume (cubic feet) N/A
Port diameter (inches) 5
Port length (inches) 13.5

Product Research

Features

Marine Tested: JL Audio's marine speakers are tested in ultraviolet chambers to simulate years of sun exposure, and salt fog chambers to simulate years of exposure to salt-water environments.

Materials: The woofer cone is mica-filled injection-molded polypropylene (IMPP) with UV inhibitors. The surrounds are synthetic rubber and the woofer uses a marine-grade synthetic fiber spider with a progressive roll design. The basket and grille are UV-resistant polymer; the basket encapsulates the woofer's motor system to prevent corrosion.

Infinite-Baffle Operation: The M7-12IB is optimized for infinite baffle operation so that it can be installed in a variety of locations, without the need for a dedicated enclosure. If an enclosure is used, 2 ft³ is the minimum recommended volume.

Enclosure: If mounting in an enclosure, JL Audio recommends a 3 ft³ sealed or 5 ft³ ported enclosure.

Loading accessories...

Customer Q&A

4 questions already asked

Q
Good day, will a pair work on a JL Audio M400/4?
robert  Apr 29, 2023
1 answer
A
Greetings Robbie, and thank you for your question. The M400/4 amplifier by design is to run full range speakers. Two channels bridged can run a subwoofer, but one that requires less power than the M7. If you are planning on running two of the M7s in a free air space, you need the XDM 600/1, but if you will be building enclosures for these two subs, you then would need the XDM1000/1 amp.
thomas  Apr 29, 2023 (Staff)
Q
What size hole is needed?
tyler  Apr 09, 2023
1 answer
A
I would be happy to help, Tyler. This solid JL Audio M7 12" subwoofer needs a hole cutout of 12-1/16". These are some of my favorite marine subwoofers, true performers!
bo  Apr 09, 2023 (Staff)
Q
Do you have this available in Gun Metal? Black and Gray.
rodger  Nov 03, 2021
1 answer
A
Hi Rod. I'm sorry we don't. We are also out of the white ones as well.
kenneth  Nov 03, 2021 (Staff)
Q
Will 1 of the JL audio M7 12 inch sub woofer marine speaker sound good or do I need 2?
martin  May 31, 2024
1 answer
A
That would depend entirely on the size of the boat and how much bass you are really trying to get from it. We have advisors who can be reached by calling 1-800-324-9695 that can help go over your setup and recommend the best configuration for your goals.
red  May 31, 2024 (Staff)
