About the JL Audio M6-10IB-L-GwSw-4
Product highlights:
- 10" 4-ohm marine subwoofer
- injection-molded mica-filled polypropylene woofer with synthetic rubber surround
- polymer basket and fine mesh grille, with stainless steel back plate
- marine-grade brass binding posts
- marine-grade synthetic fiber spider
- handles up to 250 watts RMS
- sensitivity: 86.1 dB
- top-mount depth: 6-15/16"
- cutout diameter: 10-9/16"
- frame width: 12-9/16"
- designed for infinite baffle applications
- also works in sealed or ported boxes
- warranty: 2 years
- MFR # 010-03916-00
- Item # 13693916
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
JL Audio M6-10IB-L-GwSw-4 owner's manual
If you need assistance accessing this owner's manual, please give us a call.- One 10" marine subwoofer
- Grille (white)
- Six 1-1/4" Philips-head screws
- Grille pry tool
- Owner's manual
- Cutout template
- Warranty information
More details on the JL Audio M6-10IB-L-GwSw-4
Features & specs
| Features and Specs | ||
|---|---|---|
| Size | 10-inch | |
| Impedance (Ohms) | 4 | |
| Cone Material | Mica-Filled IMPP | |
| Surround Material | Rubber | |
| Basket Material | Polymer | |
| Grille | White, Luxe-style | |
| Free-Air | Yes | |
| Dual Voice Coil | No | |
| Sensitivity |
86.1 dB at 1 watt | |
| Frequency Response | --- | |
| Max RMS Power Handling | 250 | |
| Peak Power Handling (Watts) | --- | |
| Top Mount Depth (inches) | 7 | |
| Bottom Mount Depth (inches) | N/A | |
| Cutout Diameter or Length (inches) | 10 5/8 | |
| Frame Width | 12.563 | |
| Frame Length | 12.563 | |
| Vas (liters) | 27.75 | |
| Fs (Hz) | 43.76 | |
| Qts | 0.84 | |
| Xmax (millimeters) | 13.2 | |
| Parts Warranty | 2 Years | |
| Labor Warranty | 2 Years | |
| Box Requirements | ||
| Ideal Sealed Box Volume (cubic feet) | 2 | |
| Minimum Sealed Box Volume (cubic feet) | N/A | |
| Maximum Sealed Box Volume (cubic feet) | N/A | |
| Ideal Ported Box Volume (cubic feet) | 2.5 | |
| Minimum Ported Box Volume (cubic feet) | N/A | |
| Maximum Ported Box Volume (cubic feet) | N/A | |
| Port diameter (inches) | 4 | |
| Port length (inches) | 13.5 | |
Product Research
Features
Marine Tested: JL Audio's marine speakers are tested in ultraviolet chambers to simulate years of sun exposure, and salt fog chambers to simulate years of exposure to salt-water environments.

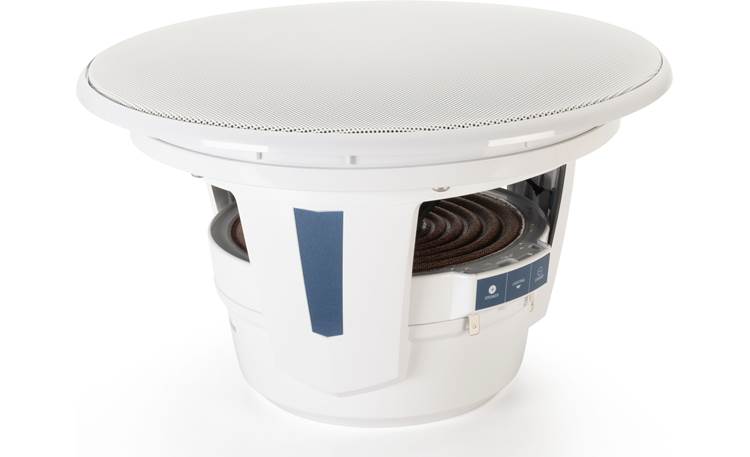

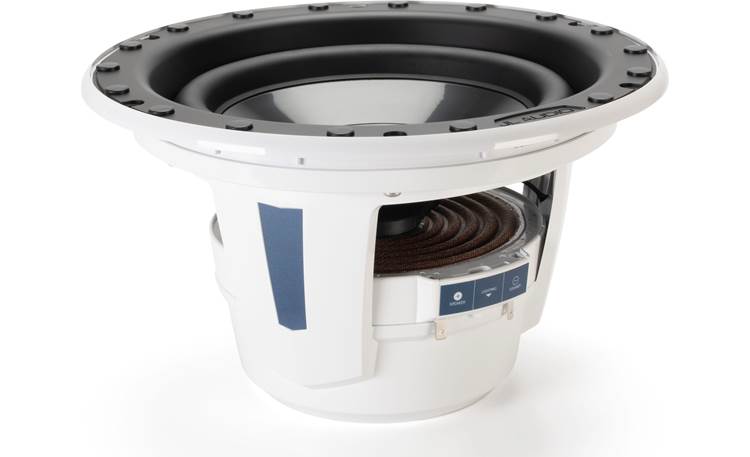

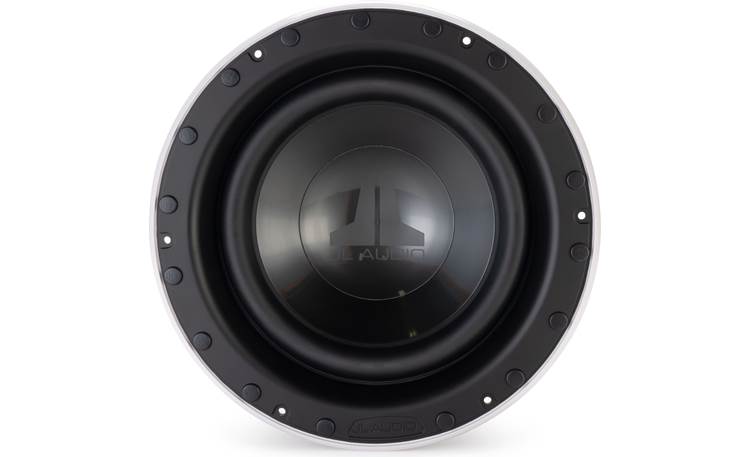

10" Subwoofer: The subwoofer cone is made of injection-molded, mica-filled polypropylene with UV inhibitors and a synthetic rubber surround. The precisely engineered dust cap profile helps smooth the upper-end response. The subwoofer uses a marine-grade synthetic fiber spider with a progressive roll design and a vented motor structure with a marine grade stainless steel rear diffuser plate.
Power Handling: The 4-ohm JL Audio subwoofer can handle between 75 and 250 watts RMS.
DMA (Dynamic Motor Analysis): DMA is JL Audio's proprietary method of improving dynamic motor behavior. The DMA-optimized long-excursion design enhances output, bass extension and power handling of the speaker.

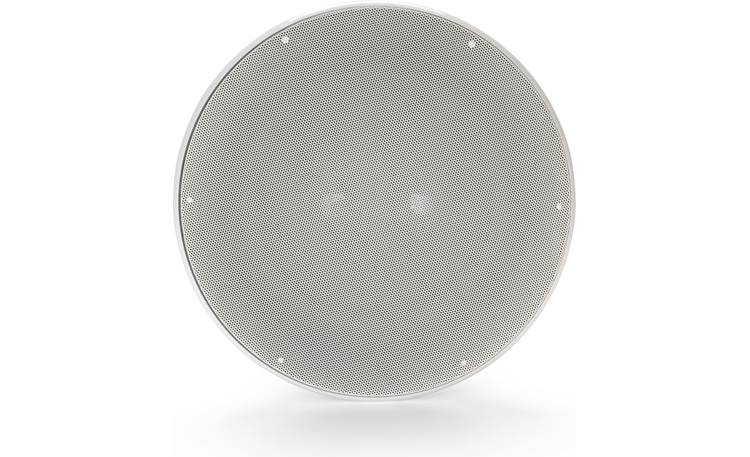

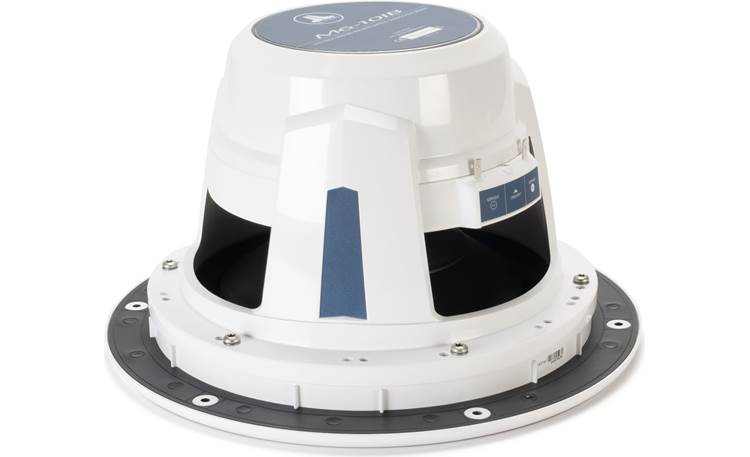

Basket & Grille: The speaker basket is UV-resistant polymer that encapsulate the woofers' motor systems to prevent corrosion. A metal mesh Luxe-style grille is included that magnetically mounts to the front of the speaker.
Infinite-Baffle Operation: The subwoofer is optimized for infinite-baffle operation so it can be installed in a variety of locations, without the need for a dedicated enclosure.
Enclosure: If mounting in an enclosure, JL Audio recommends a 2 ft³ sealed or 2.5 ft³ ported enclosure. The ported enclosure requires a port tube 4.0" in diameter and 13.50" long.
The JL Audio M6-10IB-L-GwSw-4 replaces these items:

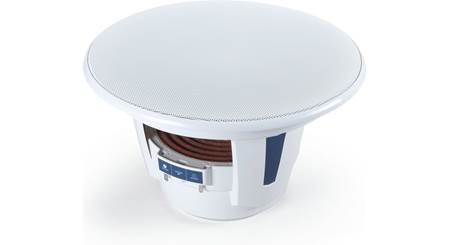

JL Audio M6-10IB-L-GwGw-4
- injection-molded polypropylene woofer with synthetic rubber surround
- polymer grille and basket
- designed for infinite baffle applications (also works in sealed or ported boxes)
Loading...
Loading accessories...
Customer Q&A
6 questions already asked
Loading...
Loading articles...
I recently purchased 2 of these subs. Currently running them on a 800 watt mono block amp. Sounds great even at high speed. Plenty loud enough for me. Great job jl audio. Really keeps up with the 8 6.5 speakers on my boat.
Travis from Piedmont
