About the JL Audio C1-650x

Product highlights:
- Featured in our article: Best car speaker lines for 2025
- 2-way 6-1/2" speakers (pair)
- injection-molded mineral-filled polypropylene woofer cone with rubber surround
- 3/4" aluminum edge-driven dome tweeter
- handles up to 50 watts RMS (225 watts peak power)
- frequency response: 48-24,000 Hz
- sensitivity: 93 dB at 2.83 volts
- top-mount depth: 2-1/8"
- grilles not included
- warranty: 1 year
- MFR # 010-03187-00
- Item # 13699042
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
JL Audio C1-650x owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- 2 Multi-application adapter brackets
- Eight 3/4" Screws (#8)
- Eight 1/4" Thread forming screws (#8)
- Two 0.187" Crimpable female quick slides
- Two 0.110" Crimpable female quick slides
- Owner's manual
Featured video:
More details on the JL Audio C1-650x

Features & specs
General | ||
---|---|---|
Speaker Size | 6 1/2 | |
Driver Design | 2-way | |
Woofer Design | Cone | |
Woofer Material | Mineral-Filled injection-Molded Polypropylene | |
Woofer Surround | Rubber | |
Midrange Design | --- | |
Midrange Material | --- | |
Tweeter Design | 3/4" Edge-Driven Dome | |
Tweeter Material | Aluminum | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | No | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 90.5 | |
Sensitivity at 2.83 volts | 93 | |
Frequency Response | 48 - 24k Hz | |
Maximum RMS Wattage | 50 | |
Peak Power Handling (Watts) | 225 | |
Top-mount Depth (Inches) | 2 1/8 | |
Bottom-mount Depth (Inches) | N/A | |
Cutout Diameter or Length (inches) | 5 | |
Mounting Height (Inches) | 0.722 | |
Frame Width | 6.255 | |
Frame Length | 6.255 |
Product Research
Features
Woofers: Each JL Audio C1 speaker features a mineral-filled, injection-molded polypropylene woofer cone with a rubber surround.
Tweeters: The 3/4" edge-driven, aluminum dome tweeters are damped by a silk surround suspension.

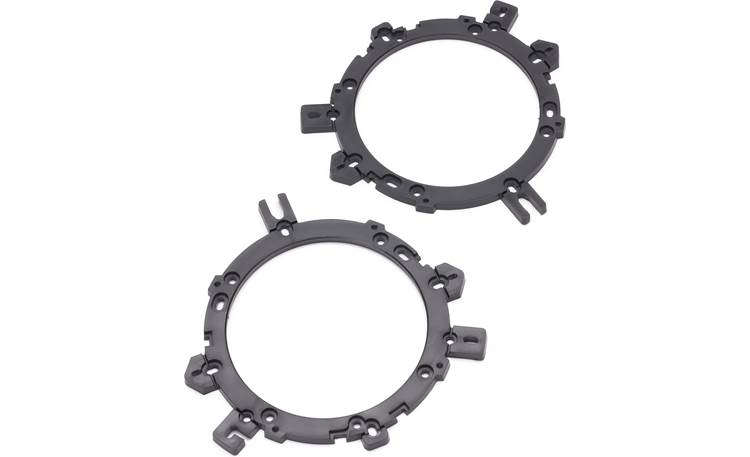

Size Classification Note: These speakers are marketed as 6-1/2"; they will fit in standard 6-1/2" speaker openings, but do not use the standard 6-1/2" speaker bolt pattern. In order to install them in standard 6-1/2" speaker openings you must drill new screw holes. If new holes are drilled in the mounting surface of the car, no bracket is needed. If drilling in the car is not an option, the included brackets can be used, which have standard 6-1/2" mounting holes, the Ford non-symmetric four hole pattern, and non-standard 6-3/4" three and four hole patterns. Please enter your vehicle information to confirm fit.
Power Handling: JL Audio publishes several power specifications for this speaker, 50 watts continuous power handling (RMS), 225 watts peak music power, and 10-75 watts recommended amplifier power (RMS). We've listed the conservative combination of 10-50 watts RMS in the specs table.
The JL Audio C1-650x replaces these items:
- injection-molded mica-filled polypropylene woofer
- 1/2" textile dome tweeter
- 10-50 watts RMS power range
Loading...
Loading accessories...
Customer Q&A
11 questions already asked
Loading...
Loading articles...
I used these to replace factory 6.5" 2011 Grand Cherokee rear door speakers and I am very happy. They are loud, bump nicely, and don't distort when volume is turned way up. Rock n Roll!!
Scott from Oak Lawn, IL
