About the JL Audio CF-350mt

Product highlights:
- 3-1/2" midrange/mid-tweeter component speakers (pair)
- custom-fit design for use in factory 3-1/2" speaker locations in many vehicles
- fiber-reinforced pulp cone with "S"-roll rubber surround

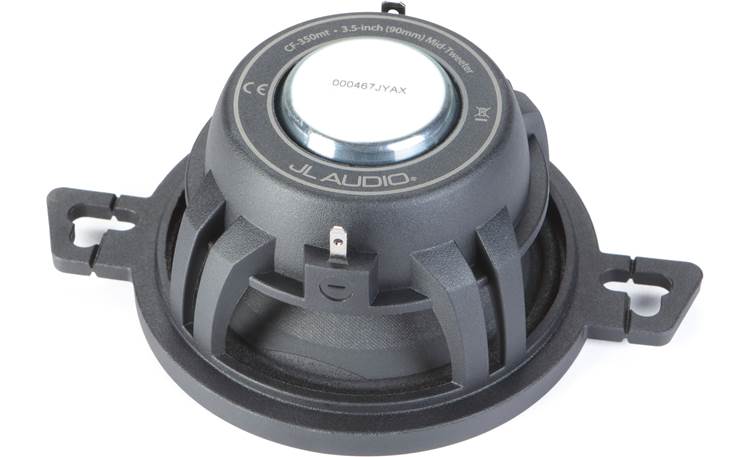

- glass-filled composite polymer frame with neodymium motor
- inline high-pass filters (450 Hz) included
- handles up to 35 watts RMS (50 watts peak power)
- frequency response: 450-20,000 Hz
- impedance: 4 ohms
- sensitivity: 86 dB at 1W/1m

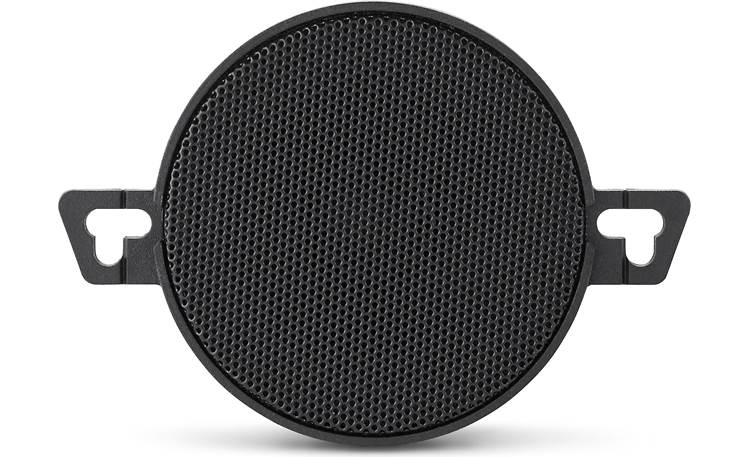

- built-in perforated metal grille
- top-mount depth:1.59"
- warranty: 1 year
- MFR # 010-03409-00
- Item # 13699058
- California customers: Please click here for your Proposition 65 WARNING.

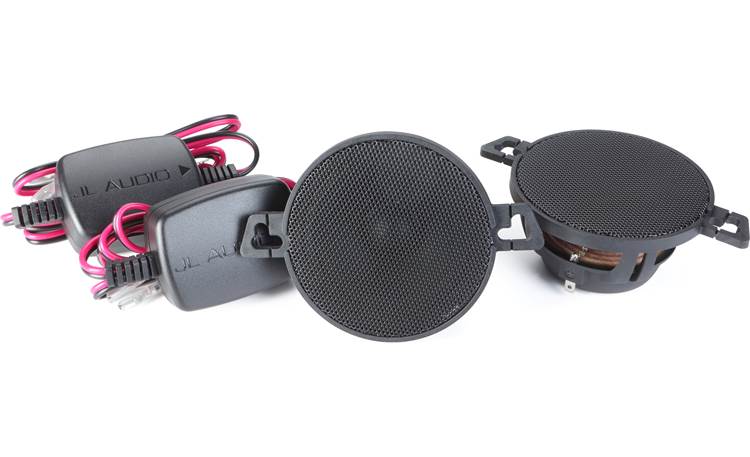

What's in the box:
JL Audio CF-350mt owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two CF-350mt Mid-Tweeters
- 2 in-line crossovers
- Eight 1" Screws
- Two 0.187" Female quick slides (crimp-on/14-16 gauge)
- Two 0.110" Female quick slides (crimp-on/14-16 gauge)
- Owner's Manual
More details on the JL Audio CF-350mt

Features & specs
General | ||
---|---|---|
Speaker Size | 3 1/2 | |
Driver Design | 1-way | |
Woofer Design | --- | |
Woofer Material | --- | |
Woofer Surround | --- | |
Midrange Design | Cone | |
Midrange Material | Fiber-Reinforced Pulp | |
Tweeter Design | --- | |
Tweeter Material | --- | |
Super Tweeter Design | --- | |
Super Tweeter Material | --- | |
Impedance (Ohms) | 4 | |
Weather-resistant | No | |
Grilles Included | Black steel mesh, Fixed | |
Parts Warranty | 1 Year | |
Labor Warranty | 1 Year | |
Specifications | ||
Sensitivity (1W at 1 meter) | 86 | |
Sensitivity at 2.83 volts | N/A | |
Frequency Response | 450 - 20k Hz | |
Maximum RMS Wattage | 35 | |
Peak Power Handling (Watts) | 50 | |
Top-mount Depth (Inches) | 1 5/8 | |
Bottom-mount Depth (Inches) | 1 7/8 | |
Cutout Diameter or Length (inches) | 3 1/8 | |
Mounting Height (Inches) | 0.27 | |
Frame Width | 3.468 | |
Frame Length | 3.468 |
Product Research
Features
Power Handling: JL Audio publishes multiple power specifications for these speakers; the RMS power rating is 35 watts, and the recommended power range is 10-50 watts. We've listed the conservative combination of 10-35 watts RMS in the specs table. These power ratings assume the included crossover is used; damage caused when not using an appropriate crossover is not covered by the warranty. When using an active crossover, 12 dB/octave is the minimum recommended slope and 450 Hz is the minimum recommended crossover point.
Crossovers: The in-line crossovers are 2nd order (12 dB/octave slope) and the 31" input and 16" output wires are attached. The output wires are terminated with female quick slides that plug onto the speakers' terminals and the input wires are not terminated (tinned bare wire).
Crossover Dimensions:
- Width: 2⅝"
- Height: 1⅛"
- Depth: 2"
Loading...
Loading accessories...
Customer Q&A
Loading...
Loading articles...
Bought these for my 2016 Jeep Renegade. I didn't want anything too harsh up in the dash and these are perfect. You get great midrange coverage and acceptable highs. It's not too harsh on the upper end. The midrange is where this speaker excels. You get great range from this 3.5" speaker.
David from Tonopah, NV
