About the JL Audio C2-075ct
Product highlights:
- 1" silk dome tweeters (pair)
- flush- and surface-mount hardware included
- in-line high-pass filter
- handles up to 60 watts RMS (125 watts peak)
- impedance: 8 ohms
- frequency response: 4,000-22,000 Hz
- sensitivity: 91 dB at 1 watt/1 meter
- top-mount depth: 0.091"
- warranty: 1 year
- MFR # 010-03355-00
- Item # 13699610
- California customers: Please click here for your Proposition 65 WARNING.

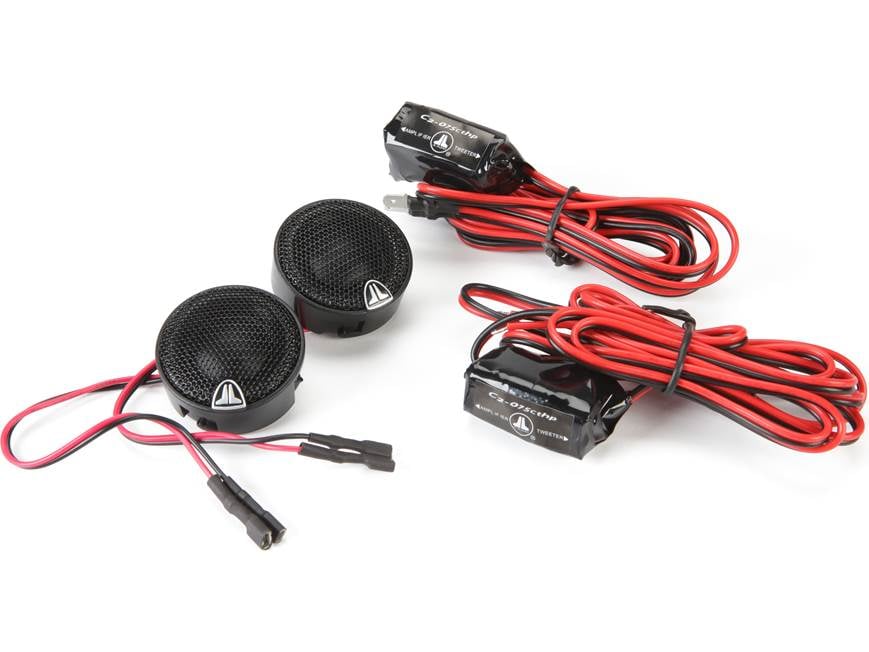

What's in the box:
JL Audio C2-075ct owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two C2-075ct Tweeters (with 6" wires attached)
- Two 64" Lengths of speaker wire with in-line crossovers (C2-075cthp)
- 2 Flush mount housings
- 2 Surface mount housings
- 2 Metal spring clips (for flush mounting)
- Four 1" Flat head screws
- Two pan-head machine screws
More details on the JL Audio C2-075ct
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 3/4 | |
| Driver Design | 1-way | |
| Woofer Design | --- | |
| Woofer Material | --- | |
| Woofer Surround | --- | |
| Midrange Design | --- | |
| Midrange Material | --- | |
| Tweeter Design | Dome | |
| Tweeter Material | Silk | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
| Impedance (Ohms) | 8 | |
| Weather-resistant | No | |
| Grilles Included | Black steel | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 91 | |
| Sensitivity at 2.83 volts | 93.5 | |
| Frequency Response | 4000 - 22k Hz | |
| Maximum RMS Wattage | 60 | |
| Peak Power Handling (Watts) | 125 | |
| Top-mount Depth (Inches) | 0 15/16 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 1 5/8 | |
| Mounting Height (Inches) | 0.286 | |
| Frame Width | 1.874 | |
| Frame Length | 1.874 | |
Product Research
Features
Tweeters: The tweeters have ¾" silk domes, are ferrofluid-cooled and use neodymium magnets. Silk is lightweight and offers high frequency extension and efficiency. It is also designed for durability in the extreme automotive environment. Flush and surface tweeter mounting brackets are included.
Tweeter Dimensions:
| Frame Diameter | Cutout Diameter | Mounting Height | Mounting Depth | |
|---|---|---|---|---|
| Flush Mount | 1.874" | 1.620" | 0.286" | 0.916" |
| Surface Mount | 1.692" | N/A | 0.939" | Screw Depth |
Crossovers: The in-line tweeter crossovers are 2nd order (12 dB/octave slope) and the 48" input and 14" output wires are attached. The output wires are terminated with male quick slides that plug into the terminals on the wires attached to the tweeters and the output wires are not terminated. The electronic tweeter protection circuit is designed to minimize the possibility of tweeter failure. It monitors current going to the tweeter and will disconnect the tweeter from the signal when it senses overload. Once the volume has been reduced, the protection circuit will reset itself automatically.
Crossover Dimensions:
- Width: 2"
- Height: 1"
- Depth: ¾"
Power Handling: JL Audio publishes several power specifications for these tweeters, 60 watts continuous power handling (RMS), 125 watts peak power, and 15-100 watts recommended amplifier power (RMS). We've listed the conservative combination of 15-60 watts RMS in the specs table. All these rating assume the included crossover is used; damage caused when not using an appropriate crossover is not covered by the warranty.
Loading...
Loading accessories...
Customer Q&A
6 questions already asked
Loading...
Loading articles...
I had a pair of C1 components, and they sounded really good, but they were a little harsh because they were right against my window and the dashboard I talked to a Crutchfield advisor. They suggested that I go with a silk tweeter so I did that very simple to install sounds so much better.
Peter from Medford, MA
