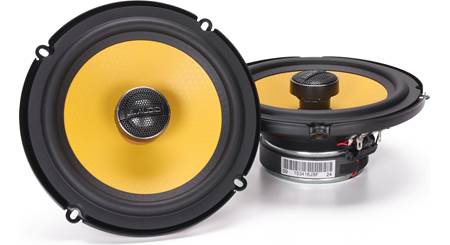

About the JL Audio C2-600X
JL Audio's Evolution C2 Series speakers bring precision sound to your vehicle. They'll reproduce subtle elements of your music like delicate woodwinds or soprano vocals, then turn on a dime to deliver the deep thrum of the bass or thunder of the drums.
Product highlights:
- 2-way 6" speakers (pair)
- injection-molded mica-filled polypropylene woofer with butyl rubber surround
- 3/4" silk dome tweeter
- built-in crossover network
- 4-ohm impedance
- handles up to 60 watts RMS (225 watts peak power)
- frequency response: 59-22,000 Hz
- sensitivity: 90.5 dB
- depth: 2-3/8"
- grilles included
- warranty: 1 year
- MFR # 010-03360-00
- Item # 136C2600X
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
JL Audio C2-600X owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Two 2-way speakers
- 2 Grilles
- 8 Self-tapping screws (#8 x 1-3/16")
- 8 Speed clips
- Two Crimpable female quick slides (0.205"/5.2mm)
- 2 Crimpable female quick slides (0.11"/2.8mm)
- 2 JL Audio logo badges
- Owner's Manual
- Paper template
More details on the JL Audio C2-600X
Features & specs
| General | ||
|---|---|---|
| Speaker Size | 6 | |
| Driver Design | 2-way | |
| Woofer Design | Cone | |
| Woofer Material | Mica-filled Polypropylene | |
| Woofer Surround | Butyl rubber | |
| Midrange Design | --- | |
| Midrange Material | --- | |
| Tweeter Design | Dome | |
| Tweeter Material | Silk | |
| Super Tweeter Design | --- | |
| Super Tweeter Material | --- | |
| Impedance (Ohms) | 4 | |
| Weather-resistant | No | |
| Grilles Included | Black/silver steel mesh | |
| Parts Warranty | 1 Year | |
| Labor Warranty | 1 Year | |
| Specifications | ||
| Sensitivity (1W at 1 meter) | 90.5 | |
| Sensitivity at 2.83 volts | 93.5 | |
| Frequency Response | 59 - 22k Hz | |
| Maximum RMS Wattage | 60 | |
| Peak Power Handling (Watts) | 225 | |
| Top-mount Depth (Inches) | 2 3/8 | |
| Bottom-mount Depth (Inches) | N/A | |
| Cutout Diameter or Length (inches) | 4 7/8 | |
| Mounting Height (Inches) | 0.628 | |
| Frame Width | 6.21 | |
| Frame Length | 6.21 | |
Product Research
Features
Woofers: The JL Audio Evolution C2-600x coaxial speakers feature injection-molded, mica-filled polypropylene woofer cones with butyl rubber surrounds. Each woofer has a 1" voice coil on a Kapton Former, a symmetrical roll spider and a Ferrite magnet.
Tweeters: Each coaxial speaker features a ¾" silk dome, ferrofluid-cooled tweeter with a damping neodymium magnet. The edge-driven silk dome tweeter is smooth, detailed (on or off axis), and provides great overall performance. Silk is lightweight and great for high frequency extension and efficiency. It is also designed for durability in the extreme automotive environment.
Grilles: Front-loading protective grilles are included, with black steel mesh and satin silver accents. Electroformed logo nameplates can be positioned on the grilles or elsewhere in the vehicle, according to the needs of the installation.
Mounting: This speaker system is a perfect fit for many Japanese cars that will not accept a 6-3/4 speaker without modification. The basket features three and four-hole patterns that match many factory mounting locations.
Size Classification Note: Crutchfield has traditionally referred to this size speaker as a 6-1/2", while some manufacturers, including JL Audio, call it a 6". The slightly larger speaker that JL Audio refers to as a 6-1/2" (C2-650x) has traditionally been categorized by Crutchfield as a 6-3/4". Please enter your vehicle information to confirm fit.
Power Handling: JL Audio publishes several power specifications for this speaker, 60 watts continuous power handling (RMS), 225 watts peak music power, and 15-100 watts recommended amplifier power (RMS). We've listed the conservative combination of 15-60 watts RMS in the specs table.
The JL Audio C2-600X replaces these items:
- copolymer woofer with butyl rubber surround
- 3/4" Type-S2 Kortec dome tweeter
- 2-50 watts RMS power range
Loading...
Loading accessories...
Customer Q&A
3 questions already asked
Loading...
Loading articles...
Looked long and hard for a good set of 6.5 speakers for my Harley. Totally amazed at the sound quality. JL mx280 AMP pushing off stock head. You can feel the sound in the handle bars and crystal clear. I could not be happier.
Ronald from WI
