About the Scosche CRTVW01 Backup Camera Harness

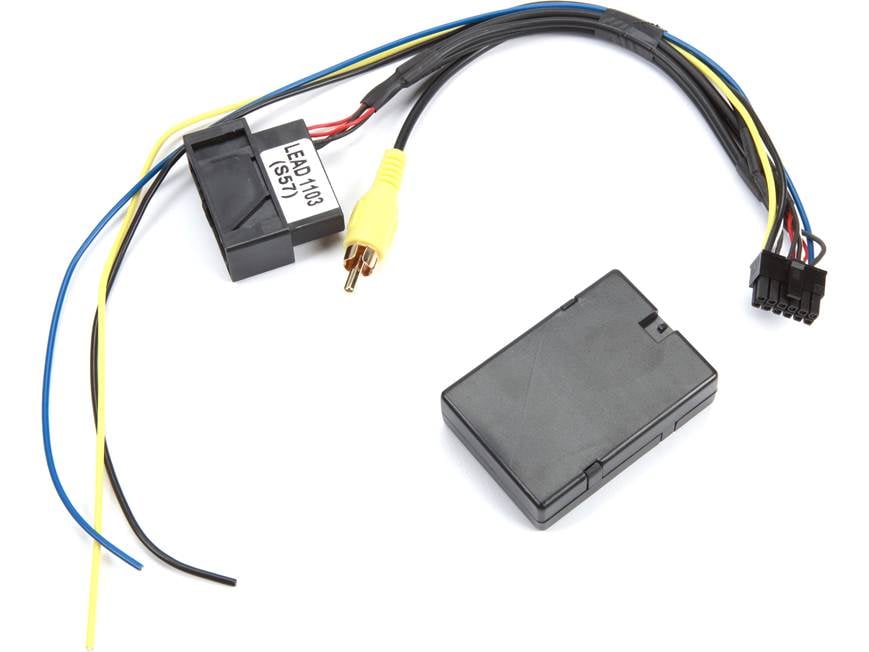

What's in the box:
Scosche CRTVW01 Backup Camera Harness owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Backup camera retention interface module
- Wiring harness
- Installation Instructions
Other info:
- MFR # CRTVW01
- Item # 142CRTVW01
- California customers: Please click here for your Proposition 65 WARNING.
More details on the Scosche CRTVW01 Backup Camera Harness

Product Research
Features
Vehicle Compatibility: The retains the factory back-up camera in select 2011-2014 Volkswagen vehicles when replacing the factory radio with an aftermarket receiver that features a composite video camera input.
Make | Model | Year |
---|---|---|
Volkswagen | Passat | 2012-2015 |
Golf/GTI | 2011-2014 | |
Jetta/GLI | 2011-2015 | |
EOS | 2011-2014 | |
Tiguan | 2011-2012 |
Connections: The included wiring harness features the following connections.
- 12-Pin Connector: The black 12-pin connector plugs into the interface module's 12-pin port.
- Composite Video Jack: The male composite video jack (yellow) plugs into the female composite video input on the back of your aftermarket receiver.
- Reverse Wire: The reverse wire (blue) hardwires to your aftermarket receiver's reverse gear wire.
- +12V Constant Wire: The +12-volt constant wire (yellow) needs to be hardwired to +12-volt constant power in the vehicle.
- Ground Wire: The ground wire (black) needs to be connected to bare metal inside the vehicle.
Loading...
Loading accessories...
Customer Q&A
10 questions already asked
Loading...
Loading articles...
Worked perfectly in my 2014 JSW TDI. I have an RCD330 that I installed but lost my factory back up camera, this kit allowed me to connect it again. The resolution is poo but that's from the conversion not the kits fault. At least it works now!
Moses from Lebanon, OR
