About the Scosche LS02B Amp Bypass Harness
Product highlights:
- lets you connect a new car stereo in 1998-05 Lexus GS vehicles
- bypasses the factory amplifier
- warranty: 1 year
- MFR # LS02B
- Item # 142LS02B
- California customers: Please click here for your Proposition 65 WARNING.
What's in the box:
Scosche LS02B Amp Bypass Harness owner's manual
If you need assistance accessing this owner's manual, please give us a call.- Amp bypass harness
- Application/Installation Guide

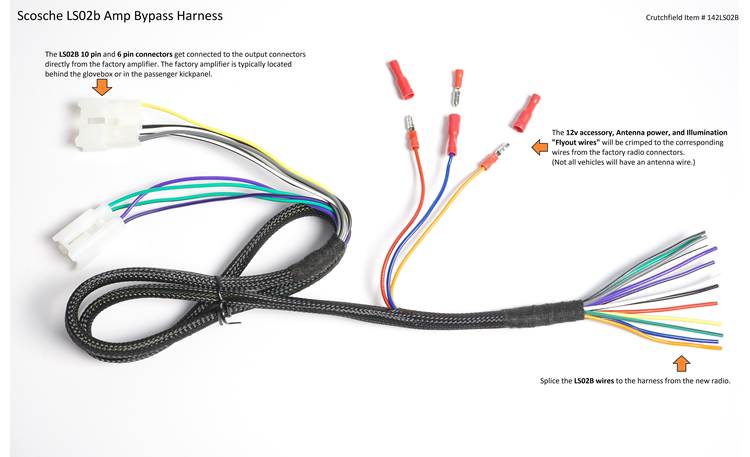

More details on the Scosche LS02B Amp Bypass Harness

Product Research
Features
Vehicle Compatibility: The Scosche LS02B amp bypass harness allows you to replace your factory radio with an aftermarket head unit, while bypassing the factory amplifier in select 1998-2005 Lexus GS300/430 vehicles.
Make | Model | Year |
---|---|---|
Lexus | GS300 | 1998-2005 |
GS430 | 1998-2005 |
Wiring Connection Chart: The amplifier bypass harnesses features the following hardwire connections.
Wire Color | Function |
---|---|
Red | +12 Volt Accessory |
Yellow | +12 Volt Constant |
Black | Ground |
Blue | Power Antenna |
Orange | Illumination |
White | Left Front Speaker + |
White/Black | Left Front Speaker - |
Gray | Right Front Speaker + |
Gray/Black | Right Front Speaker - |
Green | Left Rear Speaker + |
Green/Black | Left Rear Speaker - |
Purple | Right Rear Speaker + |
Purple/Black | Right Rear Speaker - |
Loading...
Loading accessories...
Customer Q&A
4 questions already asked
Loading...
Loading articles...
Excellent! Instructions are clear and it works as expected, you will need to figure out where to connect switched 12v, pwr ant (if necessary), and illumination wires.
Christopher from Lisle, IL
