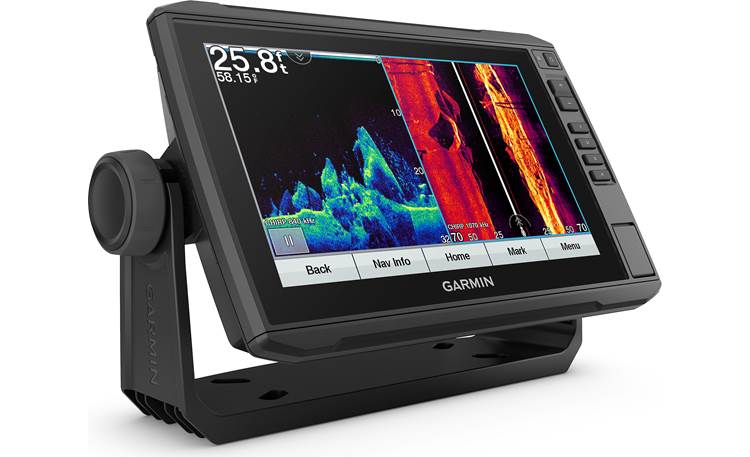

About the Garmin ECHOMAP™ UHD 94sv
Fish smarter with a chartplotter/transducer combo
Fish smarter with a chartplotter/transducer combo
Fish are smarter than humans, so if you're serious about catching any of them, it's essential to have the right electronic equipment on your boat. Garmin's ECHOMAP UHD 94sv chartplotter comes preloaded with Navionics data on thousands of miles of coastline all around the United States, and it's also Wi-Fi-enabled and compatible with your NMEA 2000 network. Best of all, this bundle also includes a powerful Garmin GT56UHD-TM transducer.
Find those fish, sideways or down
The transducer bundle includes Garmin's GT56UHD-TM Ultra High-Definition scanning sonar transducer, an all-in-one powerhouse that gives you the highest resolution ClearVü and SideVü scanning sonar images around, plus high-wide CHIRP traditional sonar for super-clear target separation and definition. The GT56UHD-TM operates at multiple frequencies for both SideVü and ClearVü, so you can find fish at nearly any depth with ease. You'll see remarkably detailed images of fish and structures up to 400 feet below your boat, and up to 500 feet around your boat with SideVü sonar. The all-in-one design is easy to install and includes transom and trolling motor mounts.
9" high-contrast color display
Ultra-fast processing refreshes your position and heading 5 times per second, so onscreen movement looks fluid on the 9" high-contrast color display. You'll be able to see those fish in any lighting conditions, thanks to an auto-adjusting backlight. You can also drop up to 5,000 waypoints and find your way back to your favorite fishing spot.
Easy transfer of waypoints
If you have waypoints, tracks or frequently used routes stored on another manufacturer's GPS product — or on a Garmin handheld device — you can transfer those items to this Garmin, via GPX Waypoints Transfer.
Make your own maps
The 94sv includes preloaded Quickdraw Contours software that lets you create your own HD maps with 1-foot contours. You'll own the maps, so you can keep the data to yourself or share it with Garmin or your friends. No surveying expertise is needed — you just fish and it let it handle the map creation. You can pair the built-in Wi-Fi with Garmin's free ActiveCaptain™ app to get notifications, share maps, and more.
Smart features for smart boaters
Enter a desired location and let Garmin Auto Guidance technology search relevant charts to create a safe virtual pathway on the display that helps you avoid low bridges, shallow water, and other charted obstructions. You can adjust the pathway by inserting “via” points at interim stops or landmarks along the way.
Color coded cues
If you need even more "at a glance" info, you can designate up to 10 different depth ranges and assign a unique color to each one. If you're coming to this Garmin from a different chartplotter, this could be a great way to retain the visual cues you're used to.
Preloaded BlueChart g3 coastal charts
The ECHOMAP UHD 94sv is preloaded with BlueChart g3 coastal charts, so you're covered anywhere offshore around the United States, giving you depth range and shallow water shading, including areas with 1-foot contours. You'll have charts of both American coasts, the Gulf of Mexico, and both U.S. and Canadian sides of the Great Lakes at your disposal. It even works with raster cartography through the ActiveCaptain app.
Just use the microSD™ card slot when you want to add additional maps in the future, or you can purchase new charts through Garmin's free ActiveCaptain app.
Powerful and portable
Keeping your UHD 94sv safe and secure when you're not on board is remarkably easy. The cords plug directly into the mount, so you won't have to waste time plugging and unplugging wires. Just remove your Garmin from power and the mount, then stow it away and go.
NMEA 2000 network-ready
When you integrate the 94sv with your NMEA 2000 network, you'll be able to see engine data, check sensors, manage autopilot, and more — it also works with NMEA 0183. It also supports Panoptix LiveVü Forward Sonar.
To learn more about NMEA 2000 connectivity, check out our article explaining nautical networking.
- 9" chartplotter/sonar combo
- includes GT56UHD-TM Ultra High-Definition transducer (12-pin connector, 25-foot cable)
- package also includes:
- power/data cable
- tilt mount (with quick release cradle), flush mount, and hardware
- protective cover
- WVGA display (800 x 400)
- transmit power: 500 W (RMS)
- built-in Wi-Fi
- network capable for NMEA 2000 (and NMEA 0183)
- preloaded with Garmin BlueChart g3 coastal charts for the United States
- internal 5 Hz GPS/GLONASS updates position and heading 5 times per second
- preloaded Quickdraw Contours map creation software
- Garmin Auto Guidance for virtual route creation
- multiple depth range shading
- record up to 5,000 waypoints, 100 routes, and 50 tracks
- use Garmin's free ActiveCaptain app to get notifications, share maps, and more
- GPX waypoints transfer
- traditional high-wide CHIRP sonar frequency: 150-240 kHz
- CHIRP ClearVü/SideVü scanning sonar frequencies: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1,000 kHz (940-1100)
- power: traditional 350 W; ClearVü/SideVü 500 W
- maximum depth:
- 2,300 feet (freshwater)
- 1,100 feet (saltwater)
- 400 feet (ClearVü), 500 feet (SideVü)
- supports Panoptix all-seeing sonar
- compatible with Force trolling motors
- microSD card slot for expandable memory
- IPX7 water resistance
- dimensions: 11-3/8"W x 6-1/2"H x 2-3/8"D
- warranty: 1 year
- MFR # 010-02524-01
What's in the box:
- ECHOMAP UHD 94sv display/control unit
- Display cover
- Tilt mount cradle/base assembly
- Self-adhesive rubber gasket (4 pieces)
- 6' Power cable (with inline 3A/125V fast-acting fuse)
- GT56UHD-TM ClearVü/SideVü transducer with attached 25' cable (12-pin plug)
- 4 Self-tapping screws (length 1")
- Ferrite Core noise filter (for power cable)
- Cable entry cover
- 2 Cable clamps
- Four M4 x 12mm screws
- Threaded collar
- Gasket for threaded collar (red)
- Transducer transom mount
- Seven M4 x 8mm screws
- Seven 4mm star washers
- Transom mounting bracket
- M5 x 45mm bolt
- M5 flat washer
- M5 rubber washer
- M5 Nylock nut
- Two M5 x 20mm screws
- Trolling motor mount
- 2 Hose clamps
- Owner's Manual
- Quick Start Manual
- ECHOMAP UHD Installation Instructions
- Garmin Support sheet
- Important Safety and Product Information
- Transducer Installation Instructions
- Flush Mount template
- Transducer Transom Mount Template
- Ferrite Core instructions
- Threaded collar instructions
- Garmin decal
Customer reviews for Garmin ECHOMAP™ UHD 94sv
Average review:5.0 out of 5 stars
Thanks for submitting your review
More details on the Garmin ECHOMAP™ UHD 94sv
Overview: The Garmin ECHOMAP UHD 94sv (Garmin part # 010-02524-01) is a combination chartplotter and fishfinder. It comes preloaded with Garmin's exclusive BlueChart g3 coastal charts with integrated Navionics® data and Auto Guidance technology. In addition, a built-in microSD slot lets you add more specialized and detailed charts and maps that are available from Garmin. The ECHOMAP UHD 94sv has a 9.0" (diagonal) full color touchscreen display that can be mounted in a variety of ways. The fishfinder has a 500-watt (RMS), Ultra High-Definition sonar transducer that lets you search for fish to a maximum depth of 800 feet. The unit has a water rating of IPX7, and can withstand being splashed with water without worry, but unsuitable for prolonged immersion.
Display: The ECHOMAP UHD 94sv has a 7.8" (wide) x 4.8" (high), 9.0" diagonal full color touchscreen WVGA display with 400 x 800 pixels. It has a variable backlight adjustment (automatic or manual), with day and night color schemes that change automatically or you can set manually. With the large display, you can create custom combination pages with up to several different functions on the display at once.
Keypad: In addition to touchscreen controls, the ECHOMAP UHD 94sv features several buttons for operating the device. The keypad consists of a power button, a plus/minus control for zooming in and out of a chart or view, and shortcut keys, numbered 1-4, that can be assigned to an active screen so you can open it instantly when pressed.
Global Positioning System: The ECHOMAP UHD 94sv has a built-in GPS receiver and internal antenna that collects data from overhead satellites to establish your current location. The GPS signal strength is indicated on the top of the screen in a bar graph (5 bars maximum). The device is equipped with a 5 Hz GPS receiver which refreshes its position and heading 5 times per second. In addition, the unit coordinates the timing of the sonar return in relation to the boat's position to give you amazingly accurate waypoints or for pinpointing fishing hotspots.
Charts and Maps: The unit is preloaded with Garmin's BlueChart g3 maps, which covers the coastal US, including the East and West Coasts, the Gulf of Mexico, and the US and Canadian sides of the Great Lakes. Additional maps are available on microSD or download.
Quickdraw Contours: The ECHOMAP UHD 94sv features Quickdraw Contours software already installed on the device. This free software allows you to tailor the preloaded maps and create your own maps on the screen. While you fish, Quickdraw Contours creates the maps based on the sonar results from an attached compatible transducer (including the supplied ClearVü / SideVü transducer). Other compatible transducers include any Garmin Panoptix, HD-ID, DownVü, or NMEA 2000-compatible. If you are using more than one transducer, you can choose which sonar device gives you the best results.
Mounting Options: The 94sv consists of a display/control unit and a tilting bail mount with a quick release feature. When you come off the water, just disconnect the display/control unit from the bail mount and go. No plugging or unplugging wires from the unit itself, as the cables plug into the quick-disconnect bail mount. You can also flush-mount the display/control unit into your dashboard. A flush-mount template helps you make the cut into the mounting location. A self-adhesive rubber gasket is provided for flush-mount applications. A snap-on cover protects the display/control unit when you're not on the water.
NMEA 2000 / NMEA 0183: The ECHOMAP UHD 94sv can be connected to an NMEA 2000 network which can carry power and data along the same cable. If your vessel has an existing NMEA 2000 network, it should already be connected to power. The device can share data from other NMEA 2000 devices, such as sensors or a VHF radio, plus you may also be able to view fuel and engine data on the display. The unit also supports the NMEA 0183 standard, which is used to connect various NMEA 0183 devices, including VHF radios and instruments, autopilots, wind and heading sensors.
ActiveCaptain App: The free Garmin ActiveCaptain app on your mobile device provides a connection to the ECHOMAP via Wi-Fi. ActiveCaptain has a OneChart feature for accessing and updating all of your charts and maps from your smartphone or tablet, as well as purchase new ones to use on the chartplotter. You can also receive notifications of phone calls and texts on the unit's display. ActiveCaptain also lets you keep in touch with fellow boaters to get first-hand information about points of interest near your route or destination. Separate ActiveCaptain and Mobile Quickdraw communities are available for feedback or for sharing your Quickdraw Contours data. The Garmin ActiveCaptain app is compatible with devices running Android 6.0 and up, or Apple iOS 12.0 or later.
CHIRP Sonar: The ECHOMAP UHD 94sv is equipped with the 500-watt Garmin GT56UHD-TM Ultra High-Definition scanning sonar transducer. This single transducer provides the highest resolution ClearVü and SideVü scanning sonar images with remarkably clear target separation and definition. You'll be able to view incredibly detailed images of fish and structure up to 800' below your boat (in fresh water with CHIRP sonar). With three SideVü sonar frequency settings (455kHz, 800kHz, and 1000kHz), you'll have options for extended range views out to 500' to each side. Compared to standard sonar, which sends one frequency at a time, CHIRP (Compressed High-Intensity Radiated Pulse) sends a continuous sweep of frequencies within a range from low to high. As a result, CHIRP sonar creates much greater target separation and crisper fish arches. Traditional sonar transducers emit a conical beam, while ClearVü sonar casts two narrow beams, similar to that of a copying machine. In addition to sonar, the transducer also measures water depth and temperature. The GT56UHD-TM comes with an attached 25-foot cable which is terminated with a 12-pin connector.
Note: The transducer comes with both transom and trolling motor mounts.
Sonar Views: The ECHOMAP UHD 94sv's sonar display scrolls from right to left to show the sonar readings from the transducer. The bottom depth is displayed in large numerals, along with the water temperature, and water speed. The unit has an adjustable depth range, and the depth scale is shown at the bottom of the screen, along with the transducer frequency. You can choose from four basic styles of sonar views:
- Full Screen: You can view in full screen your choice of traditional, ClearVü, or SideVü sonar.
- Split-screen: The split-screen sonar views let you view different combinations of sonar data simultaneously, such as traditional sonar and ClearVü.
- Split-zoom: The split-zoom view shows a full-view graph of sonar readings, and a magnified portion of that graph on the same screen.
- Split-frequency: In the split-frequency sonar view, one side of the screen shows a full-view graph of high frequency sonar and the other side shows a full-view graph of lower frequency sonar data.
Flasher Views: A Flasher View shows sonar information on a circular depth scale to indicate what is beneath your boat. Zero depth is shown at the top, and the depth progresses clockwise, according to the scale inside the ring. The depth at your present location is shown in the center of the ring. Sonar returns are indicated in a color scheme: Yellow (strongest), Orange (strong), Red (weaker), Blue (weakest), and White (no return).
- Frequencies Supported:
- Traditional CHIRP High-Wide: 150-240 kHz
- Ultra High-definition ClearVü/SideVü: 455 kHz (425-485 kHz), 800 kHz (790-850 kHz), 1000 kHz (940-1100 kHz)
- Transmit Power: Traditional CHIRP 350W (RMS); ClearVü/SideVü 500W
- Maximum Depth:
- Traditional CHIRP: 800 feet (freshwater)
- ClearVü: 400 feet
- SideVü: 500 feet
Chart Views: The ECHOMAP UHD 94sv has BlueChart g3 Coastal maps pre-loaded into its memory. The Navigation Chart view shows the navigation data on the included maps with details including buoys, lights, cables, depth soundings, marinas, and tide stations in an overhead view. With optional premium charts, you can get a Fishing Chart view or several 3D views, including Perspective 3D, Mariner's Eye 3D, Fish Eye 3D, and Relief Shading.
Pages: The chartplotter lets you view sonar views in full screen, or multiple views in combination screens. You can create a custom combination page with two or three sonar views with several layouts to choose from. You can also customize the data in the data overlays on a screen, showing your GPS position (Latitude/longitude), GPS speed, GPS heading, water temperature, water depth, and time of day.
Auto Guidance: The pre-loaded maps are integrated with Navionics® data and Auto Guidance technology to help you navigate to your destination. After you enter your desired destination, Auto Guidance scans your chart data, such as water depth and known obstacles, and uses your desired depth and overhead clearance to calculate a suggested path. You can manually adjust the path during navigation, if desired.
Note: Auto Guidance is designed for planning purposes only, and should not replace safe navigation operations.
Waypoints: You can mark and save up to 5000 waypoints into the unit's memory. Waypoints can be marked at your present location, or you can enter the coordinates to a waypoint at a different location. Each waypoint can be saved with a name, symbol, depth, and comments. Once a waypoint has been saved, you can select and navigate to its location. You can also measure the distance to the waypoint on the Waypoint Map.
Routes: A route is a sequence of waypoints or locations that leads you to your final destination. You can create and immediately navigate a route on the Navigation chart or the Fishing chart, or create a route by putting together a series of waypoints and turns. Up to 100 routes can be created and saved in the device.
Tracks: A track is a recording of the current path of your boat. You can designate a color for each track to differentiate them from each other. Tracks are created by automatically marking the current location at a set interval. The interval can be adjusted--recording more frequent plots increases accuracy, but fills up the track log quicker. You can also record tracks by the distance between points, or the variance from your course. You can log and save up to 50 tracks with 50,000 points.
Boundaries: Boundaries allow you to remain in or avoid designated areas in a body of water. You can set up an alarm to alert you when you enter or exit a boundary. Boundaries can be areas, lines, or circles on the map. Saved tracks and routes can also be converted into boundary lines.
Other Available Data: The ECHOMAP UHD 94sv lets you view data on tides, currents, and celestial conditions for a specific date and time:
- Tide Station Info: You can view tide height, and the times when the next high and low tides will occur.
- Current Station Info: You can view current speed and the level of the current.
- Celestial Info: Information regarding sunrise, sunset, moonrise, moonset, moon phase, and the approximate sky view location of the sun and moon can be viewed on the screen.
